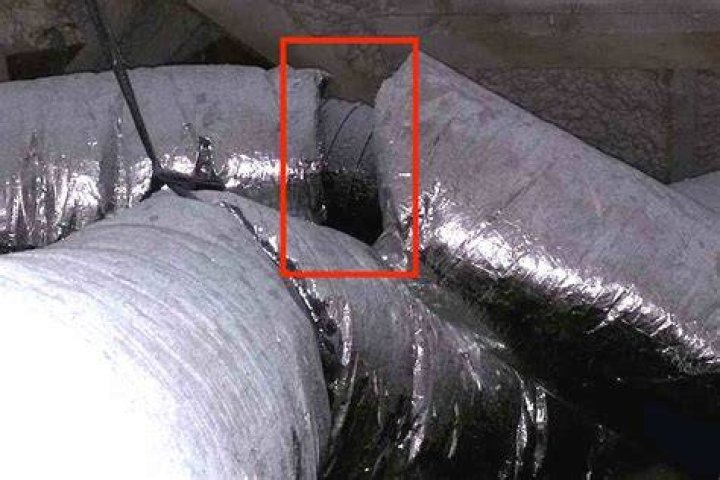

Flexible ductwork not only resists airflow, but is also more susceptible to a poor installation. Any number of factors can go wrong, including a poorly sealed joint, excessive length that lacks support and crumpled sections. Also, the material itself is less durable than sheet metal.

What is a flex duct?

Flex ductwork is a long ductwork tube that fits more flexibly into awkward home spaces than rigid ductwork. Many HVAC contractors will combine rigid and flex ductwork to create a duct network that fits the space the house provides.

What is the disadvantage of flex duct?

The downside of flex ducting is that it is considered temporary with an acknowledged lifespan of only about 15 years. Another major disadvantage is that they are a little too flexible, so they are often incorrectly installed. And with greater friction than metal ducts, proper sizing is critical.

How long will flex duct last?

What is the functional lifespan of a flexible duct system? A search of industry articles, blogs, and chat rooms indicates it lasts from 10 to 25 years. Most flexible duct manufacturers warranty their products for about 10 years.

Should flex duct be pulled tight?

Flex duct should pulled tight to reduce inner air resistance. It should be supported with straps that are a minimum 1.5″ wide. The straps need to be spaced no further than 5 feet apart, but closer is better. Local codes or manufacturers instructions may specify shorter intervals.

Is flex duct any good?

Flex ducts are better for existing trunk-and-branch heating and cooling systems. This is because they’re more versatile and flexible. Metal ducts are more rigid due to the nature of steel, making them ideal to build an entire HVAC system. … In comparison to metal duct, flex duct is easier and faster to install.

Can you squeeze flex duct?

When flexible ducts are installed in unconditioned areas of the home, they should not be squeezed into any cavities that are smaller than the outer diameter of the duct, including the duct insulation; in conditioned space, they should not be installed in cavities smaller than the inner duct diameter (ENERGY STAR).

Do flex ducts need to be insulated?

When flexible ducts are located outside the conditioned space, they should be sealed to prevent loss of conditioned air and also insulated to prevent thermal loss or gain from the ambient air.

How do I know what size flex duct I need?

Measure the length and width of the room where the flex duct will be supplying the air. Multiply the length and width together to get the square footage of the room. For example, a 10-by-10 room will be 100 square feet.

How often should flex ductwork be replaced?

“If your ductwork is over 15 years old, you probably should replace it. Ductwork has a maximum lifespan of 20-25 years. By 15 years, however, it begins to deteriorate, significantly reducing your HVAC system’s efficiency, so replacement is the prudent option.”

Article first time published on

How do you seal a flex duct?

Paint the mastic generously over the draw band, bridging from the inner liner to the collar. Figure 5. After securing the inner coil, cover the draw band and the seam with a generous amount of mastic. Pull the insulation and outer liner of the flex duct up over the collar.

What is the average cost to replace ductwork?

The average cost to replace ductwork is $1,400 to $5,600, depending on the home’s size. Air duct replacement costs $25 to $55 per linear foot or $270 to $500 per duct for a crawl space, attic, or basement. New ductwork installation costs $2,400 to $6,600 for a house without HVAC ducts.

What is the most commonly used ductwork in an HVAC residential system?

Made of galvanized steel or aluminum, rigid sheet metal is the most common type of ductwork. The thick, solid wall makes the duct very durable.

Is flex duct waterproof?

FlexClad, designed specifically for HVAC ductwork and piping, is a water and weather-resistant, pre-fabricated, self-adhering, sheet-type protective membrane. The top surface is UV-resistant embossed aluminum that can be left exposed indefinitely, reflects heat and can aid in reducing energy costs.

Which duct work is best?

Flexible ductwork is the best type of ductwork to use in tight or awkward spaces where rigid ductwork would be too difficult to install. Because these air ducts are flexible, they can bend around fixed structures to work in almost any space.

Can I use flex duct for cold air return?

Yes! You can use flex ducts for your return ducts. However, you have to make sure it fulfills all the necessary criteria. These include pressure checks, proper wrapping, and marking, airflow control, etc.

Can you use flex duct in crawlspace?

Flex duct is commonly used in crawl spaces. That said it is vulnerable to punctures, animals and other hazards. Animals have no particular reason the chew the ducts, but sometimes they will anyway. Flex duct is cheaper to install than hard duct, and (at least initially) it is easier to make it not leak.

How much can flex duct be compressed?

They looked at 5 variations here: maximum stretch and compressions of 4%, 15%, 30%, and 45%. Note that compression in this use refers to the degree that the duct wasn’t stretched out to its full length. It has nothing to do with being squeezed around the middle. Support – They supported the flex duct in two ways.

What happens if ductwork is oversized?

Using oversized ducts will erode the system’s efficiency, while undersized ducts won’t carry the necessary volume of air. Balanced airflow. To maintain neutral pressure in the HVAC system and throughout the house, the duct system must deliver and return a matching volume of air.

How much flex duct should be used?

Supports should be installed at least every once 4 feet. The maximum allowable sag in flexible duct is one-half inch per foot. (Source: Calcs Plus.) Place supports at each connection between flex duct and rigid metal duct.

Can I install my own ductwork?

With a little help, you can do your own air duct installation. The typical rate for an hvac dealer to do it is about $50/hour. By providing the labor, you can save $1500-$2000 on average. You can save even more by purchasing the materials yourself.

What size ductwork do I need for a 5 ton unit?

Using this approach, two 20-in. x 25-in. return grilles will be the right choice for a five-ton HVAC system in order to actually deliver 2,000 cfm back to the blower without causing the return to hemorrhage. Since the conventional wisdom of designing return grilles at 144 sq.in.

How do you know what size ductwork to use?

b. The size of your duct work depends not just on the size of your entire house but also on the size of each individual room. Thus, one needs to gauge the square footage of the entire house as well as that of all the different rooms in order to decide duct work sizing.

Does Flex duct meet code?

An International Association of Plumbing and Mechanical Officials committee has approved a change to the group’s Uniform Mechanical Code, limiting the use of flexible ductwork to 5 feet or shorter runs. … Flex duct goes easily into areas where metal ductwork is difficult to install, its makers say.

What is the R value of flex duct?

For example, a six-inch diameter, nominal R-8 flex duct has an actual R-value of only 5.62 not counting surface films. With the film resistances the total R-value of 6.45 is 19% less than the nominal value. For R-11 ducts (six-inch diameter) the R-value with films is only 7.81, 29% less than the nominal value.

How do you know if you need new ductwork?

• Noisy HVAC Operation. …
• High Energy Bills. …
• Uneven Heating or Cooling. …
• Having A Dusty Home. …
• Smelling Mold and Mildew in Your House. …
• Having A Problem with Pests. …
• Having Respiratory Problems. …
• Seeing Debris Around The Vents.

How do I know if I have bad ductwork?

1. Your Ducts Are Leaking. One of the most common symptoms of bad ductwork is leaks. …
2. Inconsistent Room Temperatures. …
3. Dusty, Low Air Quality.

How long does it take to replace ductwork?

On average, installing a new central heating and cooling system along with the adequate ductwork takes anywhere from 1 to 2 days, maybe less, maybe more, depending on the amount of work required. If ductwork is easily accessible, then it may take less than a day.

What tape do you use for flex ducts?

Foil tape: A UL Listed Foil Tape should be one of your go-to tools for joining and sealing joints, connections, and seams on rigid fiberglass ductboard and flexible air duct.

Can you use Gorilla tape on ductwork?

Made with double thick adhesive, strong reinforced backing, and a tough all-weather shell, Silver Gorilla Tape is the perfect duct tape for both indoor and outdoor use. It sticks to rough and uneven surfaces, including wood, stone, stucco and brick, that ordinary duct tapes can’t hold.

Is duct work covered by insurance?

Is Ductwork Covered By Insurance? No, your homeowner’s insurance will not cover ductwork, cleaning, repairing, or replacing it. … The efficiency of your HVAC system can be affected by the ductwork and it can put your home in jeopardy if problems are not caught and addressed.
