The purpose of the mesh generator is to decompose the flow domain into control volumes. Precisely where the nodes are relative to the vertices depends on whether the solver uses, for example, cell-centred or cell-vertex storage. Further complexity is introduced if a staggered velocity grid is employed.

Why do we mesh slab?

to provide lateral support(bracing) to structural elements which are not designed to resist lateral loads, to resist out-of-plane loads. For example, loads on the slab, uplift pressure due to wind action, etc.

Why is mesh quality important?

Importance of an Accurate and High-Quality Mesh A low-quality mesh will not only result in inaccurate simulation results but might even cause the solver to produce an error due to instability. Such instability is typically caused by poor-quality or illegal cells. This is something you want to avoid as much as possible.

Why do we create mesh in Ansys?

Ansys meshing capabilities help reduce the amount of time and effort spent to get to accurate results. Since meshing typically consumes a significant portion of the time it takes to get simulation results, Ansys helps by making better and more automated meshing tools.

Why is meshing done in Comsol?

The mesh used for a model geometry plays an instrumental role in how the model is solved, as it determines factors such as: … With what shape or element type the geometry is divided. The size, density, and number of elements in the geometry. The element quality.

What is mesh in design?

Meshing is the process in which the continuous geometric space of an object is broken down into thousands or more of shapes to properly define the physical shape of the object. The more detailed a mesh is, the more accurate the 3D CAD model will be, allowing for high fidelity simulations.

What is a mesh in FEA?

Meshing is one of the most important steps in performing an accurate simulation using FEA. A mesh is made up of elements which contain nodes (coordinate locations in space that can vary by element type) that represent the shape of the geometry.

Why are stiffness modifiers required in building analysis?

Stiffness modifiers can have significant effect on the behavior of the structure. In absence of stiffness modifiers the structure would be stiffer and thus attract higher lateral forces due to earthquake. So you might end up with heavily reinforced shear walls , moment frames etc.

What is mesh area?

A = area( mesh ) returns the area A of the entire mesh. example. [ A , AE ] = area( mesh ) also returns a row vector AE containing areas of each individual element of the mesh. example. A = area( mesh , elements ) returns the combined area of the specified elements of the mesh.

Why do we mesh in Hypermesh?

Why Do We Carry Out Meshing? he basic idea of FEA is to make calculations at only limited (Fini entire domain (surface or volume). Any continuous object has the problem in this format. Finite Element Method reduces discretization or meshing (nodes and elements).

Article first time published on

How does meshing work in Ansys?

Meshing is an integral part of the computer-aided engineering (CAE) simulation process. The mesh influences the accuracy, convergence and speed of the solution. Furthermore, the time it takes to create a mesh model is often a significant portion of the time it takes to get results from a CAE solution.

What is mesh in mechanical engineering?

In engineering, meshing refers to using computer software to generate polygons or polyhedrals that connect in a series of lines and points to approximates a digital model’s geometry. Meshing is often performed in order to divide the model into cells in order to conduct a simulation analysis or render a digital model.

How can I improve my mesh?

1. Reduce the ‘Number of layers’: Use at least 1 layer. …
2. Increase the ‘Overall relative thickness’: Keep the range between 10-60%. …
3. Reduce the ‘Growth rate’: Keep the range between 1.1-1.5.

How do you know if mesh is good?

The most basic and accurate way to evaluate mesh quality is to refine the mesh until a critical result such as the maximum stress in a specific location converges: meaning that it doesn’t change significantly as the mesh is a refinement.

What is orthogonality in mesh?

3) Orthogonality : It involves the angle between the vector that joins two mesh (or control volume) nodes (s) and the normal vector for each integration point surface (n) associated with that edge.

What is Physics controlled mesh in Comsol?

A physics-controlled meshing sequence examines the physics to automatically determine size attributes and sequence operations needed to create a mesh adapted to the problem. The physics-controlled sequence is based on heuristics and knowledge built-in by application experts.

What is adaptive mesh refinement in Comsol?

As we’ve discussed previously, adaptive mesh refinement lets the software improve the mesh, and by default it will minimize the overall error in the model. … However, we often are only interested in accurate results over some subset of the entire model space.

Why do we need a mesh for computational simulations?

The finite element mesh is used to subdivide the CAD model into smaller domains called elements, over which a set of equations are solved. … As these elements are made smaller and smaller, as the mesh is refined, the computed solution will approach the true solution.

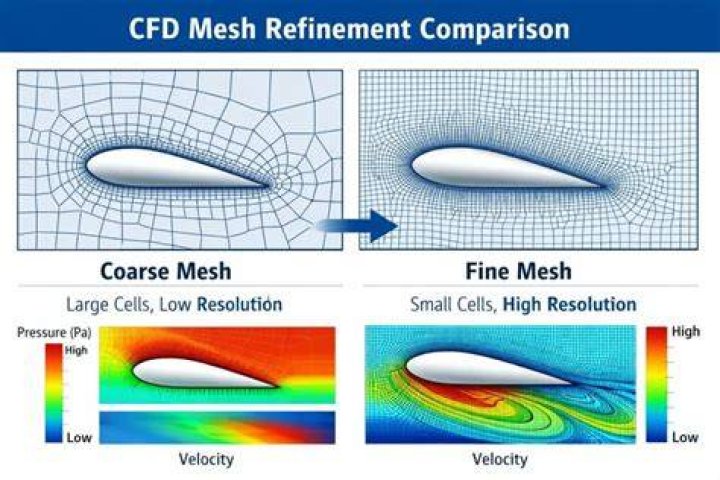

Why is mesh size important?

Usually smaller mesh means more accurate results, but the computing time gets significant as well. You should search for a balance between computing time and accuracy. … You can then easily compare the FEA outcome to a known solution – you get an error value without trouble.

Why is mesh convergence study needed for FEM based analysis?

A mesh convergence study verifies that the FEA model has converged to a solution. It also provides a justification for Mesh Independence and additional refinement is unnecessary.

What is a mesh structure?

A structure resembling network or latticework that is found in certain alteration products of minerals. Also called net structure; lattice structure.

What is mesh describe?

1 : one of the openings between the threads or cords of a net also : one of the similar spaces in a network —often used to designate screen size as the number of openings per linear inch. 2a : the fabric of a net. b : a woven, knit, or knotted material of open texture with evenly spaced holes.

What is mesh quality?

A Definition of Mesh Quality: “The characteristics of a mesh that permit a numerical PDE simulation to be performed with fidelity to the underlying physics, accuracy, and efficiency.” … The quality of a mesh depends on the discretization scheme, the solver, the PDE, and the physical solution.

What does mesh stand for?

MeSH stands for Medical Subject Headings. It is a controlled vocabulary list that is used to catalog records in PubMed, Medline Ovid & Cochrane Database. MeSH headings are assigned to citations by subject specialists at the National Library of Medicine.

Is code for strengthening?

The scheme of strengthening should satisfy the requirements stipulated for the seismic zone of IS 1893 (Part 1), building categories of IS 4326 and provisions made in this Code and in IS 13828 for low strength masonry building.

What are property modifiers?

Property modifiers may be used as a scale factor to modify the stiffness of section properties for frame, shell, and tendon objects. Property modifiers may be assigned either to object sections or to the objects themselves.

What is m11 and m22 in ETABS?

In ETABS, shell or area element has two types of stiffnesses i.e. inplane stiffness refers as f11, f22 and f12 and out-of-plane stiffness refers as m11, m22 and m12.

What is mesh biasing?

Biased meshing is used to mesh an object at the same time getting elements concentration better in a particular region. This can achieved by entering values in spacing ratio in sizing control dialog box.

What is an element in a mesh?

A mesh is a representation of a larger geometric domain by smaller discrete cells. … A mesh partitions space into elements (or cells or zones) over which the equations can be solved, which then approximates the solution over the larger domain.

What are nodes in meshing?

What is a Node? A node is a coordinate location in space where the degrees of freedom (DOFs) are defined. The DOFs for this point represent the possible movement of this point due to the loading of the structure. The DOFs also represent which forces and moments are transferred from one element to the next.

What is a good mesh in Ansys?

A good rule of thumb is that the maximum skewness for tetrahedral cells should less be than 0.95. The maximum cell squish index for all types of cells should be less than 0.99. Cell size change and face warp are additional quality measure that could affect stability and accuracy.
