M1 (1mm) Thread Size (T) 12mm Thread Length (L) 0.7mm Head Length (H)

What are M1 screws?

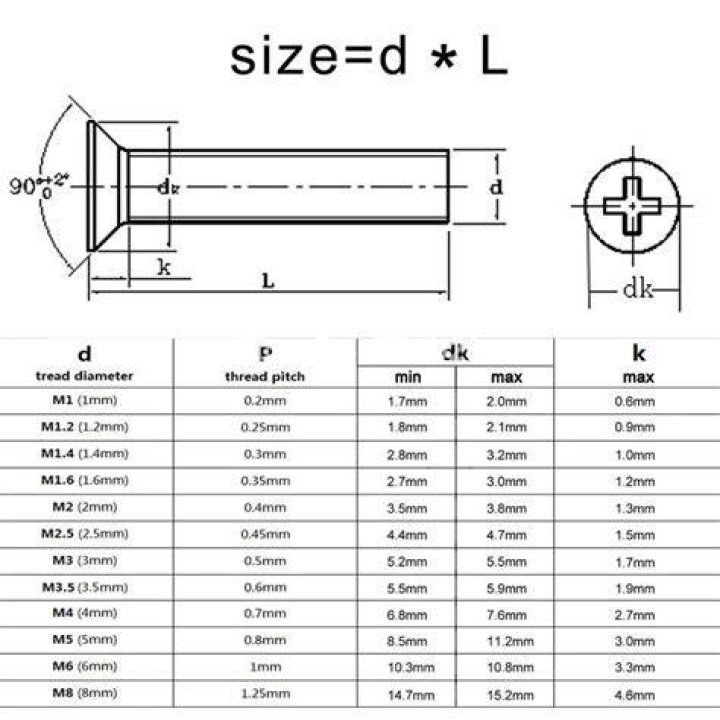

Metric Pan Head Screw Size OptionsScrew SizeDiameterLengthM1M1 (1mm)4, 5, 6, and 8 mmM1.2M1.2 (1.2mm)4, 5, 6, 8, 10, 12, 14 and 16 mmM2M2 (2mm)4, 5, 6, 8, 10, and 12 mm

What is M1 4 screw?

M1. 4-0.30 x 3mm Nickel Pan Head Machine Screw Head Diameter: 2.45mm Head Height: 0.80mm Material: Steel Finish: Nickel Drive: Phillips #000 Item…

What size is M2 screw?

Thread SizeNominal Diameter (mm)Thread Pitch (mm)M1.61.60.35M1.81.80.35M22.00.40M2.22.20.45

What are the screw sizes?

THREAD DIAMETERSizeNearest FractionInch#69/640.13#85/320.16#103/160.19

What size is M4 screw?

The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.

How do I measure screw size?

To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.

What does M2 0.4 mean?

The standard pitch (distance between the threads) on an M2 is 0.4mm however we can offer non-standard pitches to order. Each screw size is described using two numbers – the ‘M’ number and a number indicating the length of the shank, in mm, so M2 screw dimensions of M2 x8, are 8mm long, measured under the screw head.

What screw is used for M 2?

The correct screw size is 2.0 x 3mm (CM2x3-3.3).

Are all m 2 slots the same?

While the M. 2 standard uses the same 22 millimeter-wide slot for all cards, it’s not necessarily the exact same slot. Since M. 2 is designed to be used with so many different kinds of devices, it has some frustratingly similar-looking ports.

Article first time published on

What do numbers mean on screws?

Screw sizes are designated by a number that indicates the diameter and the length of the screw in inches (Table 10-2). The smallest diameter screw is 0, and the largest commonly available is 24. For bench work, the most useful sizes are 4 through 12. Of those sizes, 6, 8, and 10 are probably used more than any others.

Is a 8 or 10 screw bigger?

SizeMajor Thread Diameter*DecimalNearest Fractional Measurement#8.164″5/32″#9.177″11/64″#10.190“3/16”

What size is a number 10 screw?

SizeNominal Thread DiameterDecimalNearest Fractional#100.190″3/16″#120.216″7/32″* Nominal thread diameter is measured on the outside of the threads per ASME B18.6.3 For more information about how to measure diameter see our Measuring Fastener Diameter page.

How do you match a screw?

1. Lay the screw down on a flat surface. …
2. Place a steel rule down the axis of the screw. …
3. Count the number of thread gaps within 1 inch of the screw.
4. Divide the count of thread gaps into the length. …
5. Place the screw on a flat surface.

What size is a 12g screw?

Self Tapping Screw Gauge (g)Size (mm)104.8125.5146.3188.0

What sizes do self tapping screws come in?

Sizes of 4-40 to 3/8-16 are common. Self drilling screws, also called Teks®, have a tip that resembles a drill, and often have spaced threads, like sheet metal screws. In a single time-saving operation, these screws drill, tap and fasten.

Is M4 screw 4mm?

At the threaded bit, an M4 would be 4mm across. … It’s a bit more accurate than that, everything from the diameter of the bolt without the thread to the shape of the thread is defined to a tolerance.

Is M4 screw same as #8?

MetricClosest InchM3-0.54-48 (Smaller)M3.5-0.66-40 (Same)M4-0.78-36 (Larger)M5-0.810-32 (Smaller)

What diameter is M4 bolt?

ThreadMajor DiameterPitch DiameterM44.03.545M4.54.54.013M55.04.480M66.05.350

Do motherboards come with screws for M 2?

Some Motherboards Come With Screws for M. 2 drives, a small-sized type of SSD drive. These can be mounted directly onto the motherboard, so motherboards come with slots and M. 2 screws where the drive can be attached.

What size are motherboard screws?

Standard motherboard screws are #6–32 x 3/16″ (sometimes 1/4″). M3 screws are also used, although less often than #6–32 screws.

Do you need m 2 standoff?

The standoff height for the screw should be compatible with the connector height, making the M. 2 device level. You may need another standoff for your motherboard. … If you don’t use a spacer, take special care to only apply gentle pressure during screw installation.

Will a 8mm bolt fit a 5 16?

Can I use a M8 bolt on a 5/16 thread? They look pretty similar at glance… Well, quick answer is no. They are not the same and they are not interchangeable, although they can work under certain circumstances.

What does M8 1.25 mean?

8 means 8mm nominal diameter (the thread will be less than 8 mm at the widest point) X 1.25 means 1.25 mm per thread (thanks the standard coarse pitch for this thread)

Can any m 2 fit in any M 2 slot?

No, not all m. 2 slots accept all “m. 2” drives.

How do I know if I have an M 2 slot?

Go to the manufacturer’s website and search for the user manual of your machine. If it has an M2 slot, it will be described there.

Do all motherboards have an M 2 slot?

2 Slot is a 22mm wide slot that supports the horizontal insertion of an M. 2 card, usually located under or adjacent to the PCIe Slots. Most modern motherboards support not only one, but sometimes 2 or even 3 M. 2 Slots on them.

What are the sizes of wood screws?

Wood Screws: Slotted & Phillips Flat Head Dimensions (ASME B18.6.1)103.060123.067143.075163.075

What are the most common screw sizes?

While on the subject of sizing, widths also vary from #0 (or 1/16 inch in diameter) to #20 (or 5/16 inch in diameter). The most common size is #8 (approximately 5/32-inch in diameter), but the appropriate size of screw will depend on your individual project.

Should I use #6 or #8 drywall screws?

Drywall only, please: Don’t use drywall screws for sub-floors, tile backing or other non-drywall applications. These denser materials can break the smaller #6 screw during installation. Use a #8 or larger for these jobs.

Are 10 or 12 screws bigger?

Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.
