Sieve DesignationNominal Sieve OpeningStandardMeshInches500µmNo. 350.0197420µmNo. 400.0165345µmNo. 450.0139

What does 150 mesh mean?

U.S. Mesh Size (or U.S. Sieve Size) is defined as the number of openings in one square inch of a screen. For example, a 36 mesh screen will have 36 openings while a 150 mesh screen will have 150 openings. … Generally US Mesh is measured using screens down to a 325 mesh (325 openings in one square inch).

What is 10 mesh screen?

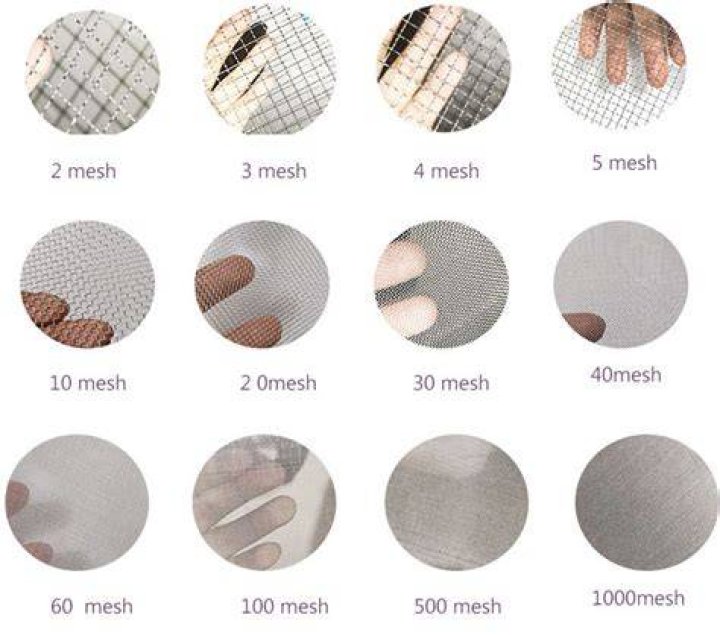

Mesh is the number of openings in one linear inch of any sieve or screen. A 10 mesh sieve will have 10 openings and a 400 mesh sieve will have 400 openings in one linear inch. The fineness of any sieve or screen depends upon the width of the wire used.

What does 200 mesh mean?

In ceramics, this refers to the particle size of a powder. A 200 screen has 200 wires-per-inch. The openings between the wires measure 74 microns (the width of a typical human hair).

What is a 16 mesh screen?

16 mesh stainless steel screen,standard woven wire mesh with mesh 16×16,wire diamater can be less than 0.457mm(0.018 inch),the aperture larger than 1.13mm(0.0445 inch). … So it is a versatile wire mesh product,have a widely application in industrial, commercial and decoration.

How many microns is 400 mesh?

U.S. MeshMicronsInches230620.0024270530.0021325440.0017400370.0015

What is 80-mesh screen?

An 80-mesh screen means there are 80 openings across one linear inch of screen. A 140-mesh screen has 140 openings, and so on. Therefore, as the mesh number increases, the size of the openings decreases. Note – Mesh size is not a precise measurement of particle size because of the size of the wire used in the screen.

What is a 100 mesh screen?

A 100-mesh screen has 100 openings, and so on. As the number describing the mesh size increases, the size of the particles decreases. Higher numbers equal finer material. Mesh size is not a precise measurement of particle size.

What is 60 mesh in microns?

U.S. MESHINCHESMICRONS500.0117297600.0098250700.0083210800.007177

How do I choose mesh size?

1. Perform chosen analysis for several different mesh sizes.
2. Notice where high deformations or high stresses occur, perhaps it is worth to refine mesh in those regions.
3. Collect data from analysis of each mesh: outcome, number of nodes in the model, computing time.

Article first time published on

What is the unit of mesh size?

U.S. Mesh Size (or U.S. Sieve Size) is defined as the number of openings in one square inch of a screen. For example, a 36 mesh screen will have 36 openings while a 150 mesh screen will have 150 openings.

Which mesh is finer 200 or 400?

U.S. Standard *Space between wires1000.00591502000.0030743250.0017Silt4000.001537

What is USS mesh?

The mesh number system is a measure of how many openings there are per linear inch in a screen. … US sieve sizes differ from Tyler Screen sizes in that thay are arbitrary numbers.

What size is 24 mesh?

A #24 mesh screen commonly uses a wire diameter of 0.014 inches which produces an opening of 0.0277 inches.

How do you measure a mesh filter?

Take one square inch of filtering material (screen) and count the holes in it. If you have 80 openings in that area, then you have an 80-mesh screen. If you have 200, then it is 200-mesh and so forth. Therefore, the higher the mesh number, the smaller the particles that are filtered.

How is mesh opening area calculated?

1. 40 x 0.010 = 0.400. Subtract the result above from 1.
2. 1 – 0.400 = 0.600. Square the above result (multiply by itself).
3. 0.600 x 0.600 = 0.36. Multiply the result by 100.
4. 100 x 0.36 = 36. …
5. 100 x 0.0045 = 0.45. …
6. 1 – 0.450 = 0.55. …
7. 0.55 x 0.55 = 0.3025. …
8. 100 x 0.3025 = 30.25.

What is the smallest mesh size?

A -6 mesh powder has particles that measure less than 3360 microns. A powder that is -325 mesh has particles that measure less than 44 micron. As you can see, the larger the mesh number the smaller the particle size of the powder.

What is the mesh size of powder?

MeshSieve Designationinches1 in.25.4 mm1.00007/8 in.22.6 mm0.87503/4 in.19.0 mm0.75005/8 in.16.0 mm0.6250

What is mesh size in strainer?

Mesh size is fairly straightforward. It measures the number of openings in the mesh that make up one linear inch. … A 120 mesh screen means the openings are much smaller and that there are 120 openings per inch. The higher the mesh number, the bigger the particles that are allowed to pass through the strainer.

What is mesh number?

Mesh-number meaning A measure of fineness of a mesh: the numerical value indicates the number of openings per linear inch. The smaller the mesh number, the larger particles can pass through the mesh.

What size is 400 mesh?

Mesh NumberInchesMicrons350.0197500400.0165400450.0138354500.0117297

Is 50 microns smaller than 100 microns?

50 micron is smaller than 100 micron.

Is Micron and mesh the same?

Micron refers to the maximum size of a particle that can pass through the filter screen. Smaller microns result in finer filtration. On the other hand, mesh refers to the number of openings in the filter screens whereby larger mesh results in finer filtration.

What mesh is 200 micron?

US Mesh*MicronsInches200740.0029230630.0025270530.0021325440.0017

What Micron is 110 mesh?

U.S. MeshMicronsUK ‘T’ Mesh11014943T = approx 110 US14010555T = approx 140 US15662T = approx 156 US2007477T = approx 196 US

What does 600 mesh mean?

100 micron is finer then the 600 micron. They measure the holes in the mesh in microns, so the higher the number the larger the holes.

What is a 20 mesh screen?

20 wires per inch. Material is hard to bend by hand and can be cut with tin snips, aircraft shears or laser. Commonly used for air vents and filters. This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.

Which is larger 1 micron or 5 micron?

The smaller the micron number the better. … A 5 micron water filter will sieve out particles that you can see – but all the other smaller particles will pass through it into your drinking water. By contrast a 1 micron filter will remove particles not visible to the naked eye.

What is 325 mesh in microns?

A 325 screen has 325 wires-per-inch. The openings between the wires measure 45 microns (half the width of a typical human hair). A 325 sieve will remove all contaminants of a clay (sand, silt, speck-producing mineral particles), 200 mesh is not fine enough to despeckle high quality porcelains or stonewares.

What does a good mesh look like?

The aspect ratio is defined as the ratio of the shortest length of the element to the longest length of the element. … A good mesh will, however, have nearly all of its elements with a small aspect ratio or a value less than 3. Although this won’t always be possible especially with larger more complicated models.

How do you choose a mesh method?

The meshing method can differ for each geometry to get reliable results. Usually, higher mesh element concentration is used near sharp corners or relatively smaller geometrical regions (see figure). Quadratic order meshing might be more accurate than linear order meshing.
