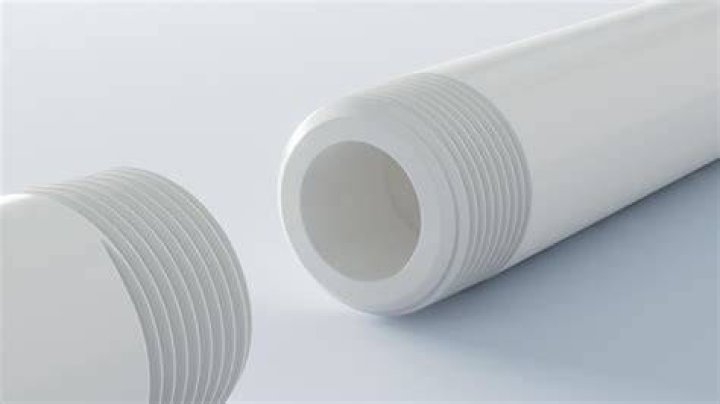

Threading PVC pipe is used for mechanically joining two sections of the plastic tubing. … Typically, threading PVC pipe is also employed for deep submersible well applications, where unusual stress due to long lengths is placed on the piping. Only schedule 80 and schedule 120 PVC pipe can be threaded.

What type of thread is used on pipe?

When it comes to different thread types, most people who work in the fluid-power industry will recognize American pipe threads (NPT/NPTF) as well as SAE or Unified threads (UN/UNF). However, threads and connections are divided into six main types: UN/UNF. NPT/NPTF.

What do you put on PVC threads?

Q. What is the best thread sealant for PVC? Pipe dope generally works best on PVC, and Rectorseal 23631 T Plus 2 Pipe Thread Sealant is a top joint compound for this purpose.

Are PVC and CPVC threads the same?

From the outside, PVC and CPVC appear to be very similar. They both are strong and rigid forms of pipe, and they can be found in the same pipe and fitting sizes. The only real visible difference may be in their color – PVC is generally white while CPVC comes in a cream color.

Do you use thread tape on PVC?

Don’t use Teflon tape, Teflon paste or pipe dope. … Teflon paste and pipe dope, just like Teflon tape, make threaded joints slippery. Their use on PVC fittings can be an invitation to over-torque. When working with threaded plastic fittings do use a proper sealant.

How do you cut and thread PVC pipe?

1. Insert the PVC pipe through both bench-mounted clamps. …
2. Place the thread-cutting die into the threader ratchet handle. …
3. Oil the ratchet before beginning to cut pipe threads.
4. Hold the ratchet level as you slowly turn the handle clockwise to cut threads into the PVC pipe.

Can I thread PVC?

Threading Plastic Pipe If you need to thread plastic pipe, you should remember that only Schedule 80 PVC and CPVC can be effectively threaded. Sure, you can thread almost anything, but these two are an approved method of pipe connections.

How do I know what type of thread?

1. Determine if the thread is straight (parallel) or tapered. The thread is tapered if the diameter increases or decreases. …
2. Measure the thread diameter. …
3. Determine the number of threads per inch (TPI) or the pitch (metric threads) with the thread gauge. …
4. Determine the thread standard.

How do I identify pipe threads?

Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.

What is the difference between conduit threads and pipe threads?

Pipe thread refers to a helical, or spiral shaped ridge, located at one end, or both ends, of a pipe that enables two pipes to join together. Conduit thread refers to a helical ridge located at one end of a pipe that tapers, or is designed with a narrower cut end.

Article first time published on

Should I use CPVC or PVC?

We recommend the use of PVC for recreational use/building, cold water systems, vent systems, and drainage systems. CPVC is recommended for applications where the maximum temperature will exceed 140 degrees Fahrenheit, but stay under CPVC’s max rating of 200 degrees Fahrenheit.

How do I know if I have PVC or CPVC?

PVC pipes are white or dark gray in color. CPVC is off-white, light gray, or yellow in color. Both pipe types have technical specifications printed on the side for easy verification.

Will CPVC fittings fit on PVC?

80 PVC and sch. 80 CPVC will fit together because they have the same ID and OD. The same is true of schedule 40 PVC and CPVC, but that type of CPVC is rarely used. One major difference between these two types of piping, when it comes to sizing, is the fact that CPVC is made in two different sizing systems: NPS and CTS.

Can you use silicone on PVC threads?

If you use silicone on threaded pvc you will easily be able to disassemble it later. Silicone does not bond very well to pvc but it will seal it with no problem. After you disassemble it just take a wire brush and brush it off. I use silicone on all my threaded fitting and have for a while now with no issues.

Do I use Teflon tape on PVC to brass?

Glue, brass and pvc are not designed to work together. You must use (according to code) male pvc to female hard pipe. Ive never been able to use teflon and dope at the same time, pick one or the other and tighten them up knowing the pvc will not crack now you have a male pvc fitting.

What is a PVC union?

PVC unions and PVC pipe union connectors are pipe fittings designed to connect two pipes together without the use of a sealant or traditional glued coupling. … This means that wherever you use a PVC union to connect pipes together these pipes can be disconnected and worked on with relative ease.

Will a PVC pipe leak without glue?

If you are trying to use PVC pipe to transport fluid or gas, PVC cement or special push-on fittings are necessary to assure there are no leaks. Not all applications require a permanent seal like this, however.

How do you fuse PVC together?

Joining a pipe to a pipe fitting requires specially formulated primer and cement—no ordinary adhesive but a chemical solvent that melts the surface of the PVC and then quickly re-hardens to fuse the pieces together. The result is an airtight, leak-proof bond similar to what you get with welding metal.

Can CPVC pipe be threaded?

in diameter, and at an operating temperature of 130°F (54.4°C) or less, may be threaded. The threads should be in accordance with ANSI B1. 20.1 Taper Pipe Thread. Note that threaded joints are derated to 50% of the pressure rating of the Schedule 80 pipe at the operating temperature.

How do you make plastic threads?

The creation of a thread in plastic requires first drilling the hole in the plastic and then creating threads on the inner sides of the hole. This is done with a device called a tap. The tap is a metal cylinder with threads at one end that is inserted into the drilled hole and twisted.

How do you Rethread a pipe?

Squirt two or three drops of cutting oil onto the cut end of the pipe. Thread the die onto the cut end of the pipe. Turn the die stock’s handle to rotate the die around the pipe’s circumference.

What does NPT stand for in threads?

The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT. NPT has a tapered male and female thread which seals with Teflon tape or jointing compound.

What is the difference between NPT and G thread?

Eyeballing the Difference Between NPT and G Connections When placed side by side, the difference between the two connection types is clear. The NPT thread is slightly tapered, while the G connection is straight. … Because a G connection bottoms out, no threads are visible.

Is G thread same as BSP?

Is G thread the same as BSPP? The two types of thread are the same parallel straight. BSPP is the British Standard Pipe Parallel thread and it is also denoted by the letter G (ISO standard). Therefore, BSPP is the same as G.

What is the difference between NPT and NPS threads?

Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). Both threads have a 60° included angle and have flat peaks and valleys. … While NPT and NPS threads will engage, they do not seal properly with each other.

What thread pitch are an fittings?

AN SizeMetal Tube O.D.Thread size33/163/8-24 SAE41/47/16–20 SAE55/161/2-20 SAE63/89/16-18 SAE

What thread is used on electrical conduit?

Most fitting tended to be Brass thread , 9/16 x 26 BSB is 14.2mm OD so as Jason says is a very likely candidate. Electrical conduit threads are based on american national pipe pitches, so 1/4 NPT would be .

What thread pitch is electrical conduit?

The pitch of conduit threads conforms to the American National Standard for Pipe Threads, General Purpose (Inch), ANSI/ASME B1. 20.1. The taper of threads is 3/4 inch per foot (1 in 16).

What is running threads in conduit?

With running threads, you create a long threading area on conduit piece #1. Then you run the connector up that piece until it’s no longer over the end of the stick.

Which is stronger CPVC or PVC?

Differences in Pipe Strength Both materials are very strong, but CPVC is harder than PVC, which makes it more prone to breaking. CPVC is more brittle than PVC and can be warped or cracked more easily, but it is also more flexible than PVC.

What is the difference between white and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.
