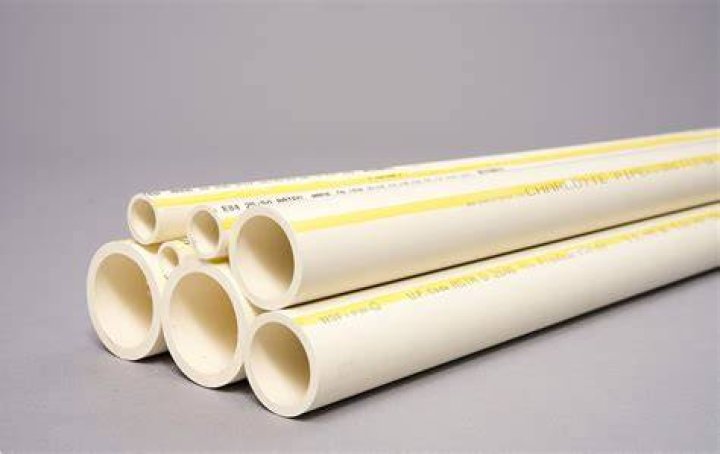

CPVC (chlorinated poly (vinyl chloride) is a strong and rigid thermoplastic material that is used for hot and cold potable water applications in residential construction. Because of its makeup, CPVC is immune to damage from highly chlorinated domestic water and has a higher temperature tolerance than PVC.

What is CPVC pipes used for?

CPVC (chlorinated poly (vinyl chloride) is a strong and rigid thermoplastic material that is used for hot and cold potable water applications in residential construction. Because of its makeup, CPVC is immune to damage from highly chlorinated domestic water and has a higher temperature tolerance than PVC.

What do you mean by CPVC pipe?

CPVC Chlorinated polyvinyl chloride (CPVC) is a thermoplastic produced by chlorination of polyvinyl chloride (PVC) resin. This new modified version of PVC called CPVC is a more stable polymer & can withstand higher temperatures than standard PVC.

Is CPVC the same as PVC?

The main difference between CPVC and PVC is the range of temperatures each is capable of withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

What is PVC and CPVC used for?

Applications of PVC & CPVC: PVC is still often used for unheated water as well as for vent and drainage systems; however, CPVC has become widely used for both hot and cold potable water. The more resistant properties of CPVC make it useful for commercial and industrial applications as well.

Which is better PVC or CPVC?

Not only can CPVC be used above the maximum service temperature of PVC, but its increased temperature resistance enables it to perform better at temperatures within PVC’s working range. For example, even below 140°F (60°C), CPVC is superior to PVC in terms of impact strength and tensile strength.

Which pipe is better CPVC or UPVC?

UPVCCPVCUPVC is not used for the purpose of drinking water transmission.CPVC is suitable for the purpose of drinking water transmission.UPVC is rigidCPVC is flexible

What is the GREY PVC pipe called?

is a gray plastic tubing that was commonly used as a water-supply plumbing pipe between 1978 and 1995, at which time it was discontinued due to reports of pipes rupturing. In new construction, it was replaced by copper or more dependable forms of plastic pipe, such as CPVC and PEX.

What is the difference between white and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Which pipe is better PPR or CPVC?

1. Physical Properties. With 60% greater tensile strength and nearly twice the flexural strength, CPVC is a stronger, more durable piping material than PP R. Due to its strength, CPVC can withstand more pressure, which means same flow rate with smaller pipes.

Article first time published on

Which is better copper or CPVC?

Energy efficiency: CPVC is more energy efficient than copper due to its improved thermal insulation properties, which also help to reduce condensation. Its insulating characteristics can signify long-term savings for building owners, keeping water hot for a longer period of time than metal tubing.

Is CPVC good for plumbing?

Studies have proved that CPVC tubing and fittings are completely safe for home water supplies. In fact, CPVC has been successfully used in homes for more than 35 years. Be aware that many home copper or steel water pipe systems are used as grounding for electrical wiring.

Can you use CPVC with PVC?

A: Yes. CPVC solvent cement technically will work on PVC piping. However, we recommend that the correct Weld-On primer and PVC solvent cement for the particular application should be used.

Which pipe is best for water supply?

CPVC is suitable for hot water and drinking water, unlike normal PVC. Compared with copper, CPVC pipes are smoother, and they produce less noise when water flows through. CPVC piping is also insulated to prevent energy loss, more flexible than metallic piping, and fire resistant.

Why is CPVC used for drinking water?

Considering CPVC In recent years, CPVC pipe is being considered more frequently for potable water systems. Characteristics such as its light weight nature, inherent corrosion resistance and unimpeded flow due to a lack of corrosion have contributed to its adoption.

Is CPVC lead free?

The material used to make PVC pipes are PVC resin + additives [lead used as processing aid]. The CPVC pipes are made from finished compounds that are lead-free making them potable water certified.

Will CPVC pipe crack in the cold?

PVC and CPVC pipe filled with water, sealed and placed in a freezing environment typically will not crack. The pipes will expand to absorb the net volumetric expansion of ice.

What is the life expectancy of CPVC?

According to the experts at the International Association of Certified Home Inspectors (InterNACHI), CPVC pipes are expected to last for 50 to 75 years under optimal conditions.

Is CPVC still used?

Chlorinated Polyvinyl Chloride (CPVC) and green pipe (PPR) are both popular piping options in today’s market. CPVC has been around for more than 55 years and many of its initial installations are still up and running without problems.

Which is better schedule 40 or 80?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

Can you glue white PVC to GREY PVC?

White (water) PVC is pressure rated and gray (Electrical) PVC is not. White PVC is softer than Gray so it bends easier. Gray uses the single step clear PVC cement won’t leave blue or read stains as many times it’s in the open and can be seen. (Note you can use the clear cement on white for non pressure uses.)

Can you run electrical wire through PVC pipe?

Regular PVC pipe shouldn’t be used in electrical applications, and PVC conduit won’t work well in plumbing situations. But when you use them correctly, they are both effective and reliable.

Can you use GREY electrical PVC for water?

Gray conduit is not rated for pressure pipe applications and may not be suitable for potable water use. Stabilizers and other ingredients used in conduit PVC may be toxic; conduit PVC is not held to the same drinking water standards as NSF marked pipe and should not be used in potable water systems.

What PVC pipe is thinner than Schedule 40?

Class 200 pipe, the most common class pipe used in irrigation, is rated for 200 pounds per square inch pressure (psi) and has a wall thickness of . 063” for a 1” pipe. Notice that is a lot thinner than schedule 40.

What is SCH in pipe?

Pipe Schedule (SCH) is a standard that measures the nominal wall thickness of a pipe, given by the ANSI / ASME B36. 10M standard for Stainless Steel Pipe dimensions, and API 5L standard for seamless and welded steel pipes.

Which is better PPR or PVC?

Materials are different: PVC is made of polyvinyl chloride, and PPR is made of random copolymer polypropylene. Color difference: PPR pipe toughness is better than PVC, and good quality and bright color, others have a light milky yellow, and poor-quality color and chaos.

Why PPR pipes are used?

PPR pipe fittings are usually used in the construction of cold and hot water systems. The ability of PPR pipes to withstand both hot and cold temperatures without breaking or cracking makes it the best option for cold and hot water systems. … PPR pipe fittings are also used as purified water supply systems.

What is the meaning of PE pipe?

Polyethylene (PE) is a thermoplastic material produced from the polymerization of ethylene. PE plastic pipe is manufactured by extrusion in sizes ranging from ½” to 63″. PE is available in rolled coils of various lengths or in straight lengths up to 40 feet.

Is CPVC legal?

SACRAMENTO, CALIF. — The California Building Standards Commission has completed adoption of new building standards that include approval of CPVC pipe statewide. The new regulations approve CPVC pipe for use in residential water supply piping systems.

How can you tell CPVC from PEX?

PEX is basically a flexible tubing that’s used for water piping. CPVC is more of a vanilla/cream color, and it comes in stick pipes where the fittings need to be glued together.

Whats better PEX or CPVC?

CPVC pipe can withstand higher temperatures than PVC or PEX pipe (up to 200 degrees Fahrenheit vs. … It’s ideal for residential water distribution because it offers better joint strength than PVC and copper and better corrosion resistance versus metal pipes. CPVC also virtually eliminates water hammer noise.
