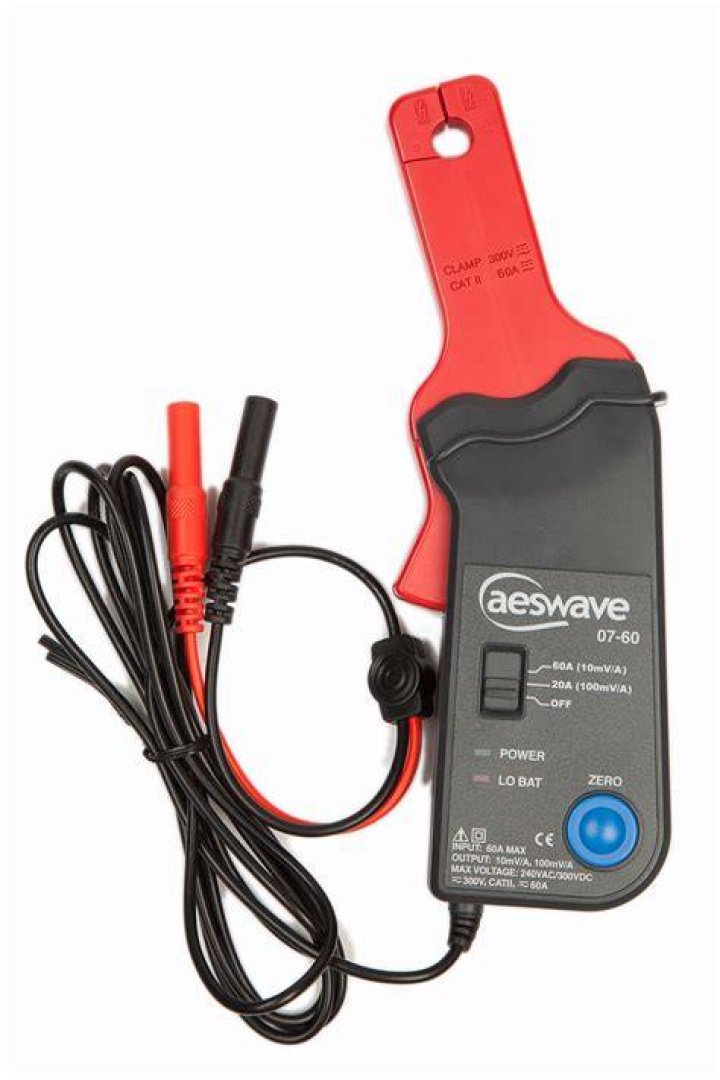

Low-Range Amp Probe. Use connected to a scope or meter, or as a stand-alone clamp. Long, small jaws combined with superior performance are ideal for: Ignition Coils, Fuel injectors, Fuel Pumps, Relays, Electric Motors Parasitic Draw 0-60A range, measure to 90A, 100mV/A. High accuracy, and low noise interference.

Why are current probes so expensive?

Well, first of all, DC-capable probes are a bit more expensive because they have to use Hall Effect sensors and deal with small offset voltages. But apart from that, there are three reasons: Bandwidth. Bandwidth.

How do I change the battery in my low amp probe snap?

To replace the battery: Loosen the rear captive screw that secures the front battery cover. Lift the cover through 30° and pull it clear of the probe body. The battery is then accessible. Remove the old 9-volt alkaline battery and insert the new 9-volt alkaline battery.

Do clamp meters work on DC?

Hall Effect clamp meters can measure both ac and dc current up to the kilohertz (1000 Hz) range. Like current transformer types, Hall Effect clamp meters use rigid iron jaws to concentrate the magnetic field that encircles the conductor being measured.

How accurate are amp clamps?

Some meters are accurate to within 1% of the range. While 1% error looks like it would be more accurate than 2%, a meter that can handle 400 amps could be out by as much as 4 amps. With this meter, the smaller your measurements are the smaller your error is. A 1 amp reading will be within 0.98 amps and 1.02 amps.

Why is oscilloscope expensive?

Oscilloscopes have added a lot of capabilities over the years, with fancy trigger modes, digital acquisition with long memories, and software analysis. Developing these capabilities for small production volumes is very expensive.

What is DC ammeter?

A DC ammeter is an instrument which is used to measure the amount of DC current flowing in a circuit. The DC ammeter has a scale which represents current in ampere. … A DC ammeter should always be connected in series with the circuit for measuring DC current.

Does Fluke 323 measure DC amps?

The Fluke 323/324/325 Clamp Meters (the Product) measure ac and dc voltage, ac current, resistance, and continuity. … The 325 can also measure dc current and frequency.

What is hole effect?

The Hall effect is the deflection of electrons (holes) in an n-type (p-type) semiconductor with current flowing perpendicular to a magnetic field. The deflection of these charged carriers sets up a voltage, called the Hall voltage, whose polarity depends on the effective charge of the carrier.

What is the other name for clamp meter?

An electrical meter with integral AC current clamp is known as a clamp meter, clamp-on ammeter, tong tester, or colloquially as an amp clamp.

Article first time published on

How does an ammeter measure DC current?

To measure current, you must connect the two leads of the ammeter in the circuit so that the current flows through the ammeter. In other words, the ammeter must become a part of the circuit itself. The only way to measure the current flowing through a simple circuit is to insert your ammeter into the circuit.

When should you use a current probe with a multimeter?

Using current probes to measure current after carefully reviewing precautions. Instruments such as digital multimeters, clamp meters, and current probes are used to measure current. Current probes, which can be used with oscilloscopes to provide optional measurement functionality, can measure DC and AC current.

Can oscilloscope measure DC voltage?

You can measure DC voltage with an oscilloscope that has a direct-coupled deflection amplifier or terminals for connecting directly to the cathode-ray tube’s deflection plates, but measuring DC voltage using an oscilloscope is only convenient in some situations — e.g., when you’re using the oscilloscope to take other …

What can you test with an oscilloscope?

Engineers use oscilloscopes to measure electrical phenomena and quickly test, verify, and debug their circuit designs. The primary function of an oscilloscope is to measure voltage waves. Those waves are displayed on a graph that can tell you many things about a signal, such as: The time and voltage values of a signal.

What is the difference between a voltmeter and an ammeter?

A voltmeter is an instrument used for measuring electrical potential difference between two points in an electric circuit. An ammeter is a measuring device used to measure the electric current in a circuit.

Where should an ammeter be placed in a circuit?

An ammeter is placed in series in the branch of the circuit being measured, so that its resistance adds to that branch.

How do you test an alternator with an amp clamp?

1. Clamp the ammeter around the positive output wire on the alternator.
2. Connect the carbon pile to the battery.
3. Zero out the ammeter (connect as above and perform the test with the vehicle off).
4. Start the vehicle and hold the engine at around 1,500 rpm.

What is a parasitic drain on a battery?

Parasitic drain on your battery is essentially when your car’s electrical system continues to pull energy from the battery, even when the vehicle is entirely turned off. … Instead, this is when everything is off, and electricity continues to drain from the battery. To some extent, this is normal.

What is the hydrometer reading for a fully charged battery?

A hydrometer reading of 1.265 indicates a fully charged battery. A 75% charge is 1.225. Approximately 1.190 is half-charged, 25% is 1.155 and 1.120 indicates complete discharge. Each cell of the battery should be checked.

What is the difference between voltage clamp and current clamp?

Unlike in the voltage clamp mode, where the membrane potential is held at a level determined by the experimenter, in “current clamp” mode the membrane potential is free to vary, and the amplifier records whatever voltage the cell generates on its own or as a result of stimulation.

Can you measure voltage with clamp meter?

Today’s clamp meters are capable of measuring both AC and DC voltage. … A clamp meter’s ability to measure AC voltage can be affected by the frequency of the signal.
