Communication. An Arduino library for sending and receiving data using LoRa radios.

Can LoRa be used with Arduino?

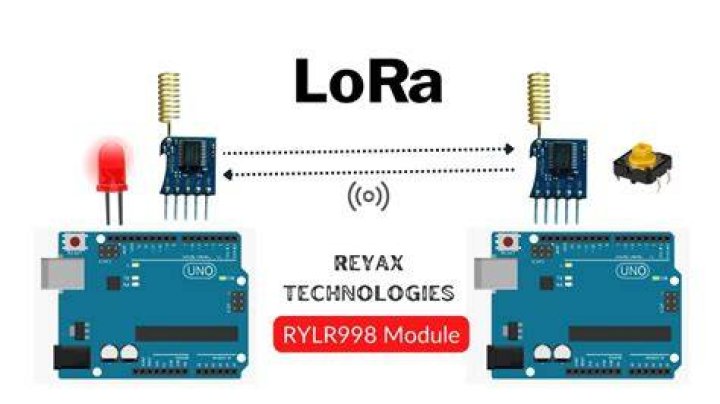

Transmitting Side- Interfacing LoRa with Arduino UNO The LoRa module consists of 16 pins, out of these six pins are GPIO pins, and four are Ground pins. This LoRa module operates at 3.3V, and so the 3.3V pin on LoRa is connected to the 3.3v pin on the Arduino UNO board.

What is LoRa ESP32?

The ESP32 LoRa 1-CH Gateway combines an ESP32 — a programmable microcontroller featuring both WiFi and Bluetooth radios — with an RFM95W LoRa transceiver to create a single-channel LoRa gateway. It’s a perfect, low-cost tool for monitoring a dozen-or-so LoRa devices, and relaying their messages up to the cloud.

What does LoRa mean?

LoRa (short for long range) is a spread spectrum modulation technique derived from chirp spread spectrum (CSS) technology. Semtech’s LoRa is a long range, low power wireless platform that has become the de facto wireless platform of Internet of Things (IoT).

What is a LoRa module?

The LoRa Module allows you to communicate to the LoRaWAN wireless network, a network made for the IoT. This technology makes it possible to communicate from a battery-powered device directly to server, even for several years. The LoRa Module uses radio frequency 868 MHz.

How do I connect LoRa module to Arduino?

Use 3.3V of Arduino to connect it to VCC pin. Connect all the GND pins to GND. Connect the RST pin to D9 and DIO0 to D2 of Arduino. Connect the SPI Pins NSS, MOSI, MISO, SCK to Arduino D10, D11, D12, D13 of Arduino respectively as shown in circuit diagram above.

What is LoRa protocol?

What is LoRa? LoRa technology was developed by a company called Semtech and it is a new wireless protocol designed specifically for long-range, low-power communications. LoRa stands for Long Range Radio and is mainly targeted for M2M and IoT networks.

How do you send data using LoRa?

For communication between two LoRa Module, you need to have LoRa library. To get the LoRa Library go to library manager and search for LoRa and install it. Once the library is installed you can upload the transmitter and receiver code and learn about Sending Sensor Data Wirelessly with LoRa SX1278 & Arduino.

How does LoRa communication work?

LoRa based devices have a module that communicates to a locally central location called a gateway. … The gateway is a go-between from the sensor to the server. The network server communicates with the gateway via the internet and tells it how to interact with the sensor.

Is LoRa free?

LoRa devices transmit in open frequency range which do not require a government license to transmit on. i.e. LoRa operates in license free frequency bands and one does not need license from government or state, to transmit on these frequencies.

Article first time published on

What can you do with LoRa?

In a nutshell, LoRa provides secure, bidirectional, low-power, long-range communication through both free and paid network services. Its wireless signals can reach across great distances, delivering tiny packets of data to and from multiple low-power node devices.

What are the advantages of LoRa?

“The main benefits of LoRa are low range, low power and low cost connectivity. Another key feature of LoRa and LoRaWan is security for both devices and network,” the executive said. Schmidbauer added that other key features of this technology are coverage, energy efficiency and location.

What is LoRa mesh?

LoRa MESH Radio Module is a high performance, low power, long-range micro-power RF module, using a distributed ad-hoc network communication mode, embedded wireless MESH MANET protocols, users do not need to do anything modified to present devices, protocols, nor need for secondary development to module, but can easily …

How do I create a LoRa Gateway?

1. A LoRa concentrator board, to receive LoRaWAN packets. The most common board used is the iMST iC880a board.
2. An antenna, to amplify the signal.
3. A computer, to process incoming and outcoming LoRaWAN packets, and to exchange them back and forth with the concentrator board.

How far can LoRa transmit?

Created by Semtech to standardize LPWANs, LoRa provides for long-range communications: up to three miles (five kilometers) in urban areas, and up to 10 miles (15 kilometers) or more in rural areas (line of sight).

What is LoRa and LoRaWAN?

LoRa, is the physical layer or the (wireless) modulization which creates the long range communication link. LoRaWAN is about the communication protocol and system architecture for the network as the LoRa Alliance puts it. Or even simpler: LoRaWAN is the network (WAN = Wide Area Network).

How is LoRa different from WIFI?

Residential Connectivity: Wi-Fi is used to connect billions of personal and professional devices in homes, while LoRaWAN is used for home security and access control, leak detection, and fuel tank monitoring, and many other applications.

What is the difference between LoRa and Zigbee?

The main difference is that, while Zigbee is a short-range IoT protocol aimed at connecting a number of devices in close proximity, LoRa focuses on wide-area networks. … LoRa is the preferred choice for deploying a large number of non-critical sensors and control devices in large areas.

Who uses LoRa?

LoRa is flexible for rural or indoor use cases in smart agriculture, smart cities, industrial IoT (IIoT), smart environment, smart homes and buildings, smart utilities and metering, and smart supply chain and logistics.

What is LoRa alliance?

The LoRa Alliance® is the fastest growing technology alliance. A non-profit association that has become one of the largest alliances in the technology sector, committed to enabling large-scale deployment of Low Power Wide Area Networks (LPWAN) IoT through the development and promotion of the LoRaWAN® open standard.

Is LoRa secure?

LoRaWAN is by design very secure—authentication and encryption are, in fact, mandatory—but networks and devices can be compromised if security keys are not kept safe, not randomized across devices or if cryptographic numbers used once (nonces) are reused, as is shown by numerous blog posts.

What is nRF24L01 transceiver?

nRF24L01 is a single chip radio transceiver for the world wide 2.4 – 2.5 GHz ISM band. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst™ protocol engine.

How do you change the frequency of a LoRa?

1. Method 1: Open Toolbox APP and go to Setting -> LoRaWAN Settings to change the Supported Frequency and Channels. …
2. Method 2: Open the Toolbox software on PC and go to LoRaWAN Settings -> Channel change the Supported Frequency and Channels. …
3. –END–

Is LoRa a 5G?

The LoRa wireless standard is also highly power-efficient. … Thus, if an IoT project requires sensors in highly remote areas where electricity is difficult to reach, LoRa is an excellent 5G alternative.

How do I connect my Lora to my Raspberry Pi?

1. Connect the Raspberry Pi to the Internet;
2. Use ‘raspi-config ‘ to ensure that SPI can be used on RPi ;
3. Get the single channel LoRa Gateway source code from here ;
4. Edit the ‘main. cpp’ to change configuration (look for: “Configure these values!”).

Can LoRa send video?

The EdgeX uses LoRa to transmit Video and Image data over hundreds of kilometres without Internet using the onboard AI processor.

Is LoRa a Google font?

Lora is a well-balanced contemporary serif with roots in calligraphy. It is a text typeface with moderate contrast well suited for body text. … In March 2019, the family has been updated to a variable font family. To contribute, see

How much does LoRa cost?

The overall cost of LoRaWAN modules hovers at around $8-10 – about half the price of cellular LTE modules like NB-IoT.

Is LoRa a two way?

Anyways, it’s a complete two-way communication system based on the Arduino and the most powerful and popular 433MHz SX1278 Lora Transceiver modules.

What are the disadvantages of LoRa?

The main disadvantage of LoRa however is exactly what enables its strengths, namely the low bandwidth. Furthermore, the protocol doesn’t allow continuous sending, due to rules on the frequency band it utilises. Because of this, LoRa is only suited for short and periodical communications.

Why is LoRaWAN used?

LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. It wirelessly connects devices to the internet and manages communication between end-node devices and network gateways.
