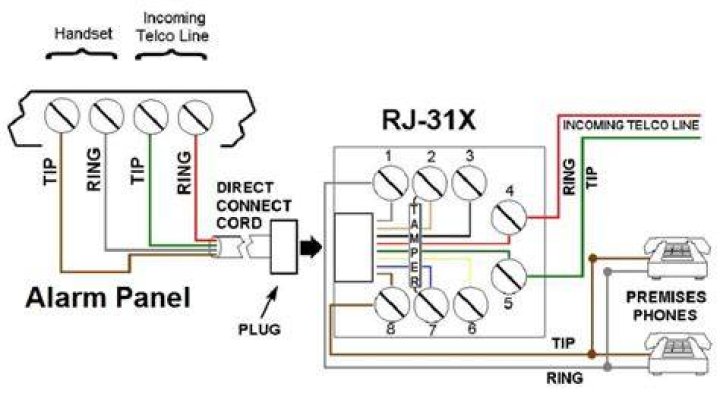

An RJ-31X jack is designed to facilitate wiring of an alarm panel and premise telephone on the same phone line while assuring that the processing of alarm signals has priority (line seizure) over a voice call.

What is an RJ 31X?

The RJ31X Jack is a special, 8-pin telephone jack, designed for use with security systems and which is available from your telephone company or from your Alarm Installer. … When activated, a relay in your security system panel “seizes” the telephone line and gives the security system priority use of this line.

How do you calculate tip and ring?

In on-premises wiring the first or only pair of inside wiring and jacks are color-coded in green for the tip conductor, and red for the ring side. A second pair is coded in black for tip and yellow for ring.

How do I connect my phone line to my alarm?

You can wire a POTS line to your security system by first wiring an incoming phone line to an RJ jack. The RJ jack will then connect to the on-site landline phones and to the alarm system. Your security system must be compatible with pots service in order to use this type of communication.

Do you need a phone line for alarm system?

No, you do not need a phone line for a security system. In fact, we recommend that you don’t use a phone line with a security system. Phone lines are often unreliable, and telephone service provides slow communication speeds. There are many superior options for alarm monitoring service.

What is a line seizure?

Filters. Forcing a connection to a telephone line even if the line is in use. Security systems within buildings are often designed to seize a landline when an alarm is triggered. See RJ-31X.

Does VoIP work with alarm systems?

Today many people are switching from the traditional based phone line to VoIP, more robust services provided via cellular or internet providers. These technologies have been incorporated in the alarm communication system too. Yes, VoIP technologies can work with home alarm systems.

What happens if tip and ring are reversed?

Equipment connected to the public switched-telephone network (PSTN) sometimes needs to detect polarity reversals of the battery feed. … If TIP and RING polarity is reversed, the REVERSE line will activate when the loop current is greater than 10 mA.

What is a fault in security system?

A fault or fault condition is when a zone is open on an alarm system. … It’s just basically the alarm panels way of saying a device has been activated.

Is tip or ring left or right?

A stereo, unbalanced signal requires a TRS plug – tip is left, ring is right, sleeve is audio ground for the left and the right signals.
