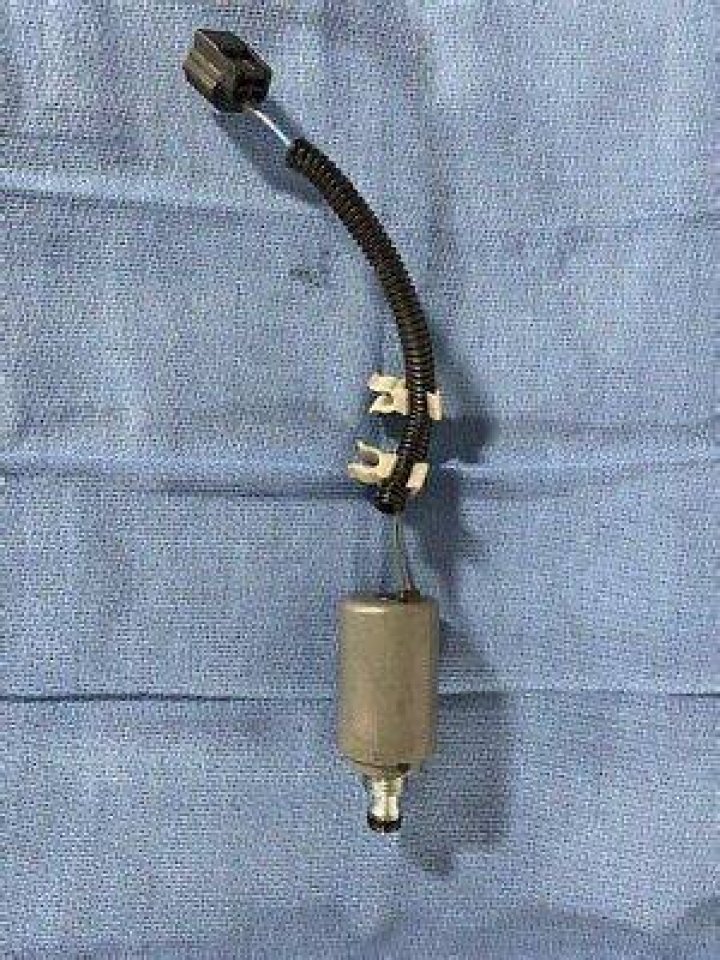

EVO means Electronic Variable Orifice. The EVO valve is a key component in variable assist systems. … A properly functioning system requires proper operation of the EVO valve (see below), control module and vehicle speed sensor.

What is EVO on power steering?

E.V.O. stands for Electronically Variable Orifice. This component is controlled by an electronic control module that reduces fluid pressure from the power steering pump to the steering gear at highway speeds. Improved high speed handling and road feel is the result.

How do I know if my steering wheel position sensor is bad?

The most common symptom of a bad steering angle sensor is warning lights showing up on the dashboard. It’s either a traction control light or a check engine light, depending on the car model. Other rare issues are heavy steering or strange steering after a wheel alignment. Any sensor can wear out due to constant use.

What does the EVO solenoid do?

At slow speeds, the EVO solenoid is fully open making steering assist easier. At higher speed, the EVO solenoid closes, restricting fluid flow, resulting in firmer steering assist. … Use of this kit will allow the pump to function as a normal steering system would.

What is variable assist power steering?

Variable assist power steering systems are used on a variety of vehicles to provide maximum assist while parking and less assist and a firmer feel at highway speeds. … It is typically accomplished by controlling and varying the pressure to the steering gear or rack.

How do I know if my power steering pressure switch is bad?

1. Engine slowing down.
2. Engine stalling.
3. Speeding up and slowing down.
4. Check Engine Light comes on.

What does a steering wheel speed sensor do?

The Steering Angle Sensor is an important part of a vehicle’s safety system. It transmits the steering wheel’s rate of turn, wheel angle, and other important data to the specific vehicle’s computer. If there is a fault in the signal, the computer can disable the vehicle’s stability control.

What is the EVO bypass?

The EVO actuator (bypass pipe) replacement pumps have a direct con- nection to the power steering pressure hose. The pumps with bypass pipes installed fit the same as the OE unit and function as a standard steering system would. Moving forward, all remanufactured EVO pumps will be built with the bypass pipe installed.

What happens when a steering angle sensor goes bad?

A faulty steering angle sensor will relay wrong messages to your steering wheel which can prevent you from making accurate turns while driving and this can cause you to veer off the road or run into other vehicles on the road or any other thing for that matter.

What happens when a yaw rate sensor goes bad?

The following are some of things you will notice when there is a bad yaw rate sensor is going bad: The Stability Control Light is on. The car feels very loose when driving it. The indicator lights for the stability system may come on occasionally.

Article first time published on

Is there a difference between power steering and power assisted steering?

Power steering is a synonym for power assisted steering. They are in fact the same. Though several variations exist due to advancements in technology from early model to late model vehicles, they all use hydraulic pressure to assist the steering. …

How do I know if I have variable ratio steering?

To identify a variable-assist power steering, you may try doing a visual search. You can start that by studying the hydraulic power assist if that uses a droop flow pump. If this pump stays in the same place even with an accelerated engine RPM, that means your vehicle is aided with variable-assist power steering.

What type of motor is used in most electric power steering?

Most electric power steering systems use a three-phase electric motor powered by a pulse width modulated DC voltage. The motor is brushless and has an operating voltage range of 9 to 16 volts. Three phase motors allow for faster and more precise application of torque at low RPMs.

What problems can a bad wheel speed sensor cause?

loss of stability and traction control: if it detects a bad wheel speed sensor, the abs computer will usually disable the stability and traction control systems, as well. on some vehicles, a bad wheel speed sensor may affect other functions as well, such as hill-start assist and roll stability.

What are the symptoms of a bad vehicle speed sensor?

• Transmission problems. …
• Erratic speedometer readings. …
• Inability to engage cruise control. …
• Lack of torque converter clutch application. …
• Check Engine Light is triggered. …
• An internal electrical fault in the speed sensor. …
• Damage on the sensor itself. …
• Poor vehicle maintenance.

How do you test a power steering pressure sensor?

Start and idle the engine with the valve in the open position. Turn the steering wheel left and right several times to release any air bubbles and bring the fluid to operating temperature. 3. With the gauge connected, close the shutoff valve for 5 seconds and compare it with the manufacturer’s specifications.

What is the purpose of a power steering pressure sensor?

Your car’s power steering pressure switch monitors the amount of pressure in the system, and communicates that information to the car’s computer. If it notices a drop in pressure, the car’s computer may turn on a warning light in the dash.

Where is the power steering pressure sensor located?

The power steering pressure switch is located either at the power steering pump or the gearbox.

Can a steering angle sensor cause limp mode?

BTW – a bad steering sensor should not cause your transmission to go into limp mode. It will affect your traction control, but even your ABS brakes should still function correctly. It just won’t intervene properly to get you out of a serious loss of traction, like taking a curve too fast on wet pavement.

How much does it cost to replace a yaw sensor?

Yaw Sensor Replacement Cost – RepairPal Estimate. Labor costs are estimated between $89 and $112 while parts are priced at $599. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

What is the purpose of a yaw sensor?

The yaw rate sensor determines whether the car is developing a tendency to spin around the vertical axis. It helps the ESP control unit to determine the current driving-dynamic state of the car. For this purpose, it must be placed close to the vehicle’s centre of gravity.

Is the yaw rate sensor important?

The yaw rate sensor is a key component in a vehicle’s stability control or electronic stability control system designed to provide motorists with increased safety, security, and control even in the most difficult driving conditions.

Which power steering is better hydraulic or electric?

Electric power steering provides better fuel economy This method reduces the amount of weight in the vehicle. Also, the EPS system doesn’t use power from the engine as the hydraulic systems do. Overall, the electric power steering system is more efficient.

Which steering system will provide assistance even when the engine is not running?

Electric power steering (EPS) is the norm on today’s new cars. … EPS uses an electric motor that draws energy from the vehicle’s electrical system to provide the steering assistance.

Does rack and pinion use power steering?

Most of the cars on the road today use a rack and pinion steering system with power steering. The power steering makes it easier to steer, but adds complexity to the compact rack and pinion system, which can make it more difficult (and expensive) to repair.

What is the best steering ratio?

In most passenger cars, the ratio is between 12:1 and 20:1. For example, if one complete turn of the steering wheel, 360 degrees, causes the wheels to turn 24 degrees, the ratio is then 360:24 = 15:1.

Does my car have variable assist power steering?

There should be a Service Parts Identification label. Check the label for the code NV7. If it’s there, then your car has variable power steering.

Why is variable pitch rack and pinion used?

Some cars use variable ratio steering. This rack and pinion steering system uses a different number of teeth per cm (tooth pitch) in the centre than at the ends. The result is the steering is more sensitive when it is turned towards lock than when it is close to its central position, making the car more maneuverable.

Which sensor is used in electronic power steering?

The torque sensor in the Servolectric® electric power steering system measures the torque the driver applies to the steering wheel. Based on this data, the electronic control unit calculates the steering assistance which the electric motor needs to apply.

What sensors are needed for EPS systems?

• The steering wheel position sensor, which derives the absolute position of the steering wheel.
• The steering torque sensor, which converts torque applied to the steering wheel by the driver into an electrical signal for processing.

What are the 2 types of steering systems?

There are two basic types of power steering systems used on vehicles. The rack and pinion steering system and the conventional/integral steering gear system, which is also known as a recirculating ball steering system.
