Every virtual machine will need a network interface card that can connect and participate in a network. VMware calls it a vNIC. These entities can be created on each virtual machine. There are different types of vNICs that can be created on a virtual machine.

What is a Vmnic in vSphere?

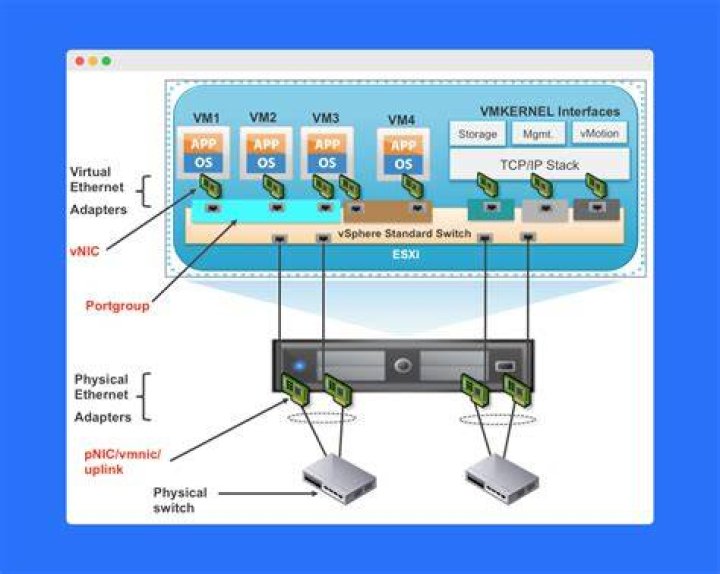

VMware Networking Terminology VMNIC – The real physical interface on the ESX host. vPort – The virtual connection points upon the vSwitch. You can think of these as the virtual RJ-45 connections on the vSwitch. PortGroups – A port group is a configuration template that is applied to a group of network elements.

What is difference between Vic and NIC?

vNic is the software NIC emulation in the VM and is just a driver and in latest VMs the NIC is para-virtualised, which means that the NIC and Operating System is aware of the Host Physical NIC capability and understands that the vNic is just a driver.

Is Vmnic a physical NIC?

Remember that the pNIC is the physical NIC on the server that the hypervisor is installed on. The virtual object that is linked to the pNIC and used to provide connectivity between the vSwitch and the physical switch via the pNIC is the vmNIC.

How does a vSwitch work?

A vSwitch works similar to a physical switch — with some limitations — and controls how virtual machines communicate with one another. The vSwitch uses the physical NICs (pNICs) associated with the host server to connect the virtual network to the physical network.

How do I find my Vmnic?

1. To check the status from the vSphere Client: Select the ESX host and click the Configuration tab. Click Networking. …
2. To check the status from the ESXi service console, run this command: esxcli network nic list.

What is vNIC in UCS?

A virtual network interface card (vNIC) or virtual host bus adapter (vHBA) logically connects a virtual machine to a virtual interface on the UCS 6100/6200 series fabric interconnect and allows the virtual machine to send and receive traffic through that interface.

What is vSwitch in VMware?

vSwitch is the software-based virtual networking switch used to connect virtual machines to ESXi host & it also provides the connectivity between the virtual machines on that virtual switch. vSphere Standard Switch is referred as vSwitch. Each ESXi host requires it’s own vSwitch.

What is a vSwitch port group?

Virtual Switches (vSwitches) Though it is not a hardware device, the virtual switch passes traffic using the same concepts found in the OSI networking model as physical switches do. In other words, layer 2 frames (OSI data link layer) enter and exit the vSwitch much as they would a physical switch.

What is VMkernel adapter in VMware?

The VMware VMkernel networking interface provides network connectivity for the host, and handles VMware vMotion, traffic management, and fault tolerance. … Management Traffic—Enables the management traffic for the host and VMware vCenter server. A VMkernel adapter is typically created when the ESXi software is installed.

Article first time published on

What is the difference between NIC and HBA?

The main difference is the type of storage/switch you are connecting to. HBA stands for Host Bus Adapter and is used to connect to block level storage such as Fibre Channel, SATA or SCSI. … NIC stands for Network Interface Adapter and is used to connect ethernet storage to a switch or server.

What is HPA card?

A host bus adapter (HBA) is a circuit board or integrated circuit adapter that connects a host system, such as a server, to a storage or network device. … An HBA and its associated disk subsystems are sometimes referred to as a disk channel, while the HBA itself is often called an HBA card.

What is virtual HBA?

Each virtual HBA has a unique identity, or WWN, on the SAN, which can be used for LUN masking or zoning. … Block devices present on these virtual HBAs can be automatically mounted to specific OpenSolaris xVM guest operating systems.

What is a vRouter?

A Virtual Router, or vRouter, is a software function that replicates in software the functionality of a hardware-based Layer 3 Internet Protocol (IP) routing, which has traditionally used a dedicated hardware device. … This evolution means that routing functions can be dynamically configured or adapted to network needs.

How do you create a vSwitch?

Create a virtual switch by using Hyper-V Manager Open Hyper-V Manager, select the Hyper-V host computer name. Select Action > Virtual Switch Manager. Choose the type of virtual switch you want. Gives virtual machines access to a physical network to communicate with servers and clients on an external network.

What is the difference between vSwitch and Dvswitch?

A standard vSwitch works within one ESX/ESXi host only. Distributed vSwitches allow different hosts to use the switch as long as they exist within the same host cluster. A distributed vSwitch extends its ports and management across all the servers in a cluster, supporting up to 500 hosts per distributed switch.

What is mLOM slot?

The Cisco UCS Virtual Interface Card 1227 offers a modular LAN on Motherboard (mLOM) adapter. The mLOM slot, can be used to install a Cisco VIC without consuming a PCIe slot. … It is designed exclusively for the M4 generation of Cisco UCS C-series rack servers and the C3160 dense storage servers.

What is a vNIC template?

Use vNIC templates to define how a vNIC on a server connects to the LAN. You can view all existing vNIC templates on the Templates page. vNIC Redundancy Template Pairs. Creating vNIC template pairs enables you to group vNICs that belong to a specific server.

How do I know if VIB is used?

1. In ESXi 5.x, run this command: esxcli software vib list | less.
2. In ESXi 4.x, run this command: esxupdate query –vib-view | less.

How do you read Esxtop?

Start esxtop by typing esxtop at the command line. Press d to switch to disk view (HBA mode). To view the entire Device name, press SHIFT + L and enter 36 in Change the name field size. Press f to modify the fields that are displayed.

What is Esxcli command?

The ESXCLI command set allows you to run common system administration commands against vSphere systems from an administration server of your choice. The actual list of commands depends on the system that you are running on. Run esxcli –help for a list of commands on your system.

What are the main benefits of a standard vSwitch?

Standard switch does not require Enterprise plus licensing for usage. This is one of the real advantages for standard switch users. Standard switch is created in host level i.e. we can create and manage vSphere standard switch independently on ESXi host.

What is the difference between ESX and ESXi?

The primary difference between ESX and ESXi is that ESX is based on a Linux-based console OS, while ESXi offers a menu for server configuration and operates independently from any general-purpose OS.

What is hypervisor used for?

A hypervisor, also known as a virtual machine monitor or VMM, is software that creates and runs virtual machines (VMs). A hypervisor allows one host computer to support multiple guest VMs by virtually sharing its resources, such as memory and processing.

What is port Group?

Port groups aggregate multiple ports under a common configuration and provide a stable anchor point for virtual machines connecting to labeled networks. Each port group is identified by a network label, which is unique to the current host. … A port group is always connected to a single vSwitch.

What is standard switch?

A standard switch (sometimes called vSwitch) is created by default when ESXi is installed. Like its physical Ethernet counterpart, a standard switch works at layer 2, forwards frames to other switch ports based on the MAC address, and supports features such as VLANs and port channels.

What is VMware DVS?

A VMware vSphere Distributed Switch (VMware vDS) allows a single virtual switch to connect multiple hosts in a cluster or multiple clusters for centralized management of network configurations in a vSphere environment.

What is NSX manager?

NSX Manager is installed as a virtual appliance on any ESXi host in your vCenter environment. NSX Manager provides the graphical user interface (GUI) and the REST APIs for creating, configuring, and monitoring NSX components, such as controllers, logical switches, and edge services gateways.

What is VMware uplink?

An uplink is a template that you use to configure physical connections of hosts as well as failover and load balancing policies. … You set failover and load balancing policies over uplinks and the policies are automatically propagated to the host proxy switches, or the data plane.
