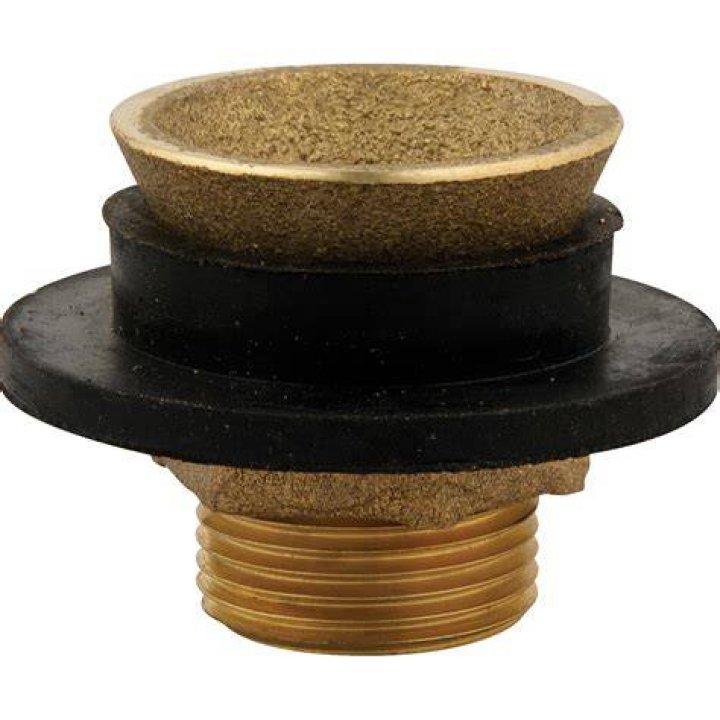

Urinal spuds, spud couplings, and friction rings form a water-tight connection between a flush valve (flushometer) and a urinal. Spuds are fittings that connect the base of the flushometer to the urinal’s mounting hole.

What is a spud on a toilet?

Spuds are fittings with one end for attaching to a fixture’s mounting hole and another end for attaching to a spud coupling at the base of a flush valve. Spud couplings connect the base of the flush valve to the spud fitting in the toilet mounting hole.

Where is the spud on a toilet?

It is installed between the tank and the seat. It is actually part of the connection between the two parts of the toilet. It you remove the tank by unscrewing the two screws on the bottom of the tank and lift the tank off the toilet seat, you will see the spud gasket sitting on the back part of the toilet seat.

What is a spud fitting?

In a nutshell, welding spuds are an alternative to NPT half couplings. They have a nice flanged surface area where they attach to your tanks/vessels and present NPT threads to only one side in a very low profile. … It allows any male NPT fitting to be threaded in from the outside only.

What is Radiator spud wrench?

Radiator Valve Spud Wrench is designed for making radiator valve repairs and can be used on 1/2 in. to 2 in. radiator valves. A radiator valve body is connected to the radiator by a spud. The Spud Wrench is used in order to remove the radiator valve and is required to loosen the spud.

How do you remove spud nut from toilet tank?

1. Step 1: Close the water supply line.
2. Step 2: Place a towel under the toilet tank.
3. Step 3: Take the lid off the top of the tank.
4. Step 4: Drain the water from the tank.
5. Step 5: Remove the plastic coupling.
6. Step 6: Unscrew the nut by turning it clockwise.

What is a valve spud?

Spuds are fittings with one end for attaching to a fixture’s mounting hole and another end for attaching to a spud coupling at the base of a flush valve. … These spuds and spud couplings are used as replacements for parts that have cracked, corroded, or no longer seat properly due to stripped threads.

What size are spud washers?

Size (Spud x IPS for tailpiece)Spud Side (Fits in Hole)Rubber Washer1-1/2″ x 1-1/2″2-3/16″$1.412″ x 1-1/4″2-5/8″$2.582″ x 1-1/2″2-5/8″$2.482″ x 2″2-5/8″$1.67

Does a urinal have a wax ring?

Urinal wax rings, seals, and gaskets help form water-tight connections to prevent leaks around urinals. They seal the connection between the urinal and flush valve or between the urinal and the wall or floor.

How long is a spud wrench?

Spud Wrench, 1-1/16-Inch Nominal Opening for Utility Nut.

Article first time published on

What is spud washer used for?

The spud washer links the toilet bowl and the flush valve, while the tank bolts are located at the base of the toilet, and they join the tank to the base. At every bolt, a rubber gasket between the tank and bolt head prevents water leaks from seeping out and drips and leaks.

What is a back spud?

A: A top spud fixture refers to a flush valve connection that is on top of the toilet generally located behind the seat. A back spud fixture has a connection for the flush valve located on the back of the toilet. In most cases a back spud fixture will use a concealed flush valve.

What is spud gasket?

The spud gasket fits inside the toilet on the base where the tank drains into the toilet bowl, forming a seal to hold the water in the tank. Replacing a worn out gasket will keep the toilet tank solidly attached and prevent leaks between the tank and the bowl.

What is a 3 in 1 spud wrench used for?

Function. A spud wrench is intended to loosen and tighten a section of piping found on older model toilets. … The spud wrench was designed to work on the bolts, collar and other pieces of the spud unit.

What is the difference between a pipe wrench and a spud wrench?

A pipe wrench is bigger and sturdier than a standardwrench,allowing it to turn pipes more efficiently. You’ll need a medium-size adjustable pipe wrench to tighten and loosen pipes and other plumbing connections. … A spud wrench is designed to remove these slip nuts.

Whats the difference between a spud wrench and a pipe wrench?

Both spud wrench and pipe wrench are for pipes, yet they differ in pipe usage because a spud wrench is mostly preferred in automotive pipe work as an alternative to the adjustable wrench, with lining up bolt holes when installing pipe fittings, while the pipe wrench is used in plumbing.

Can you use a screwdriver to bleed a radiator?

You can use a flathead screwdriver to bleed a radiator without a key. Place the flat head into the notches of the bleed valve. To bleed the radiator, turn anticlockwise to open the valve, and clockwise to close the valve. Remember to hold an old cloth or jug under the bleed valve to catch any escaping water.

What is flush valve?

The flush valve, located in the middle of the toilet tank, includes the overflow tube, the hole where water enters the bowl when the toilet is flushed and the rubber tank ball or flapper that covers the hole when the tank is full. A broken flush valve prevents your toilet tank from forming a seal to hold water.

What size is the nut on a toilet?

The most common size supply tube connection to the valve is a 3/8-inch hexagon compression nut. If you’re not sure what the size is, or it is not 3/8 inch, you can always remove the supply tube and take it with you for comparison when purchasing a new supply tube.

How do you loosen a plastic wing nut?

Whether you use a basin wrench or a hammer and screwdriver, the nut is easier to loosen if you heat it with a hairdryer. The heat should soften the plastic and make the nut pliable enough to break free. It also helps to spray some calcium dissolver on the nut and wait several minutes before tapping or twisting.

How do you get plastic nuts off a toilet seat?

If the bolts or nuts are plastic, they can’t corrode and will come off easily. Simply pry open the cover behind the seat to expose the bolt’s head. Unscrew the bolt with a pliers or a screwdriver while you hold the nut underneath with the pliers.

Are all toilet tank seals the same size?

The 2 inch Tank to Bowl Gasket is universal to fit most 2 inch two-piece toilet tanks. The universal sponge rubber design measures: 2-1/8 inch inner diameter, 3-1/2 inch outer diameter and 1-1/4 inch thick.

Why is my toilet leaking from the bottom of the tank?

One reason for a toilet leak from the base might be a loose connection where the tank meets the toilet. … Shut off the water at the valve, then flush and hold the handle until all the water has drained from the tank. Remove the old bolts and washers. Clean and dry the area, then install new washers and bolts.

Are toilet tank gaskets universal?

The purpose of the tank to bowl gasket is to provide a leak free seal between the toilet tank and bowl. … Manufactured in a high quality, chlorine resistant rubber, the Korky tank to bowl gaskets are universal to fit most toilet tanks. All kits are offered with and without tank to bowl hardware.

Does a spud wrench have smooth jaws?

12″ Spud Wrench features narrow jaws to fit into tight places. … Smooth, toothless jaws ideal for square or rectangular stock.

What is a spanner used for?

A wrench or spanner is a tool used to provide grip and mechanical advantage in applying torque to turn objects—usually rotary fasteners, such as nuts and bolts—or keep them from turning. In the UK, Ireland, Australia, and New Zealand spanner is the standard term.

Do you need a new wax seal after removing toilet?

Whenever you remove a toilet for any reason, you will need to replace the wax ring seal between the toilet and the toilet flange (sometimes called a closet flange) attached to the floor. A wax seal is used because it resists mold and bacteria and retains its sealing ability after years of use.

How tight should a toilet tank be?

Most toilets have a space between the bottom of the tank and the top of the bowl anywhere from a ¼ of an inch to a ½ inch. Tighten too loosely and the tank will leak underneath the rubber washers and down the bolts; tighten too much and risk the tank cracking.

Why is my toilet leaking from the bolts?

A toilet that leaks from its tank bolts is usually leaking because of damaged, misaligned or even cracked washers or bolts. … Washers or spacers also sit between the tank and the bowl, and a washer made out of a metal, rubber or plastic is placed on the bolt between the bowl and the nut.
