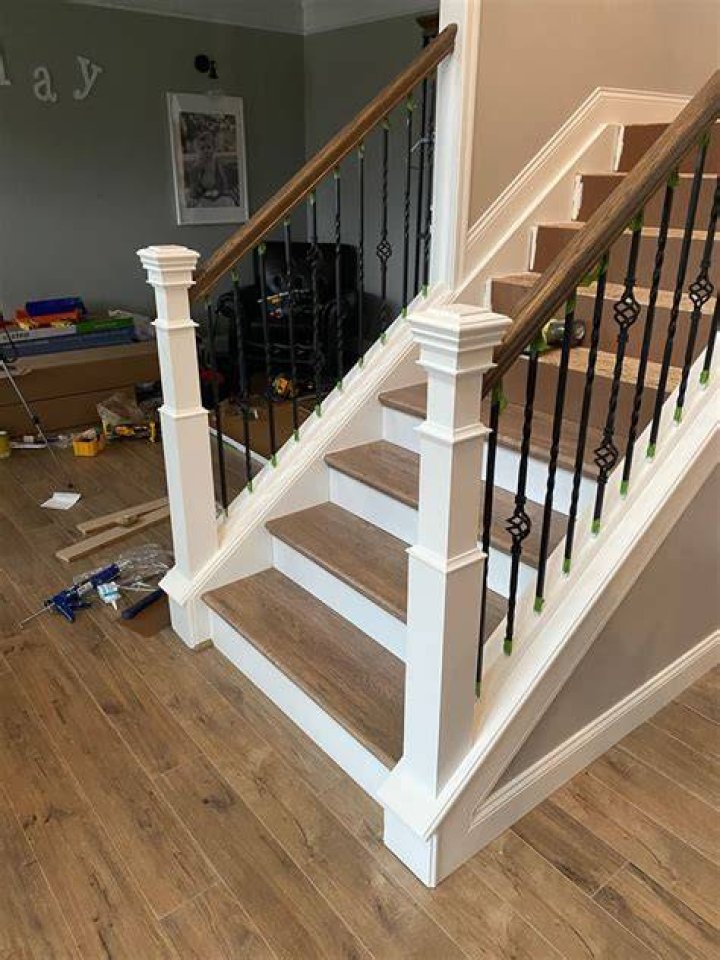

newel, also called Newel-post, upright post rising at the foot of a stairway, at its landings, or at its top. These posts usually serve as anchors for handrails. Often the stringboards, which cover and connect the ends of the steps, are framed into the newels.

What is the difference between newel and baluster?

is that baluster is (architecture) a short column used in a group to support a rail, as commonly found on the side of a stairway; a banister while newel is (architecture) a sturdy pillar at the top or bottom of a flight of stairs, supporting the handrail.

What is the newel at the bottom of the stairs called?

The post (also called a newel) is the vertical structure that connects the stair or floor to the railing system. Spindles, which are vertical wood or metal structures, are interspersed between posts to provide a safety barrier along the stair system. Shoe is the bottom plate that spindles (or glass) are set into. 3.

What are the parts of a stair called?

• Stringer – The inclined boards in which the treads and risers are enclosed.
• Tread – The top or horizontal surface of a step.
• Nosing – The visible front of the treads.
• Riser – The board that forms the face of the step.

Do you need a newel post?

Newels are the anchor of a stairway. … So for every change in direction on the stairway, whether it’s a transition to a level landing or a 90º turn, you will need a newel to complete that turn. Newels differ from both balusters and intermediate posts that span the space between the newels.

Are balusters and spindles the same?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

What are stair balusters?

A baluster is a vertical moulded shaft, square, or lathe-turned form found in stairways, parapets, and other architectural features. In furniture construction it is known as a spindle. … The term banister (also bannister) refers to a baluster or to the system of balusters and handrail of a stairway.

What is a box newel?

Box newel posts are manufactured using 3/4″ thick solid hardwood for all four sides. These posts are constructed with lock miter joints at the corners. The flat panel and raised panel versions are made using true stile & rail construction, not just a routed out pocket. Our posts are a piece of furniture.

What are banister posts called?

A newel, also called a central pole or support column, is the central supporting pillar of a staircase. It can also refer to an upright post that supports and/or terminates the handrail of a stair banister (the “newel post”).

Can I cut newel post?

Approximately 10mm above where the handrail enters the newel post, draw a line squarely around the newel post and using a handsaw start to cut the post at this line. … With the top of the newel post cut off, measure 10mm below where the handrail enters the newel post and squarely draw a line around this point.

Article first time published on

What is a full newel?

A newel post is the upright post that sits at the top and/or bottom of the balustrade to support a staircase banister and secure the balustrade. … Newel posts can vary in design—from traditional to contemporary—to reflect the style of the staircase and interior décor.

What is the difference between banisters and balusters?

As nouns the difference between banister and baluster is that banister is the handrail on the side of a staircase while baluster is (architecture) a short column used in a group to support a rail, as commonly found on the side of a stairway; a banister.

What is soffit in stair?

The soffit is the underside of the stair or bottom of the stair slab. Under the surface of the stair called the soffit.

What are the uprights on a staircase called?

The spindles are the vertical posts that run along the side of the staircase, between the handrail and baseball. These could be made of wood, metal or glass, depending on the style of staircase you have.

What does a balustrade look like?

Found lining many staircases and terraces, a balustrade is a row of small columns topped by a rail. The term is derived from the form’s constituent posts, called balusters, a name coined in 17th-century Italy for the bulbous item’s resemblance to blossoming pomegranate flowers (balaustra in Italian).

What is the purpose of balusters at home?

The Purpose of Balusters First, balusters support the handrail. Balusters also close the gaps between posts, acting as safety features by eliminating excess space through which someone could fall. Finally – and most obviously – balusters provide additional style and structural flair for your railing.

What is a newel post and what is a baluster?

The design and style of your staircase comes down to the type of newels and balusters that you choose. Newels have added weight and are seen as the support system for your staircase. The thicker posts support the handrail, while the balusters fill out the rest.

Where does the name newel post come from?

newel (n.) Klein’s sources suggest the French word may be from Gallo-Roman *nucale, from Latin nux “nut.” The carpentry meaning “tall and more or less ornamental post at the top or bottom of a staircase” is from 1833 (newel-post in this sense is from 1798).

What goes on top of a newel post?

Cap—the cap that sits on top of a newel post.

Are newel posts solid wood?

This newel post is 3-1/2″ square x 58″ length. It is solid wood and not made like traditional box newels which are always hollow inside. Great for traditional stairways. Available in several different species of wood.

Is a box newel post hollow?

When it comes to box newel post, these types of newel posts are known to be hollow. According to Wikipedia, historic homes featured the hollow box newel post and were used to place the house plans inside before the newel was capped upon completion of the house.

How does a newel post work?

You might commonly know newel posts as somewhere to hang your coat at the bottom of a staircase. But they’re much more important than that. A newel pPost is a vertical post that provides structure to your staircase, traditionally sitting at the top and/or bottom to support any handrail and secure balustrades in place.

What is a half newel post?

A half newel post cap is exactly that—a newel cap that’s been cut in half so it can fit on top of a half newel post. As with regular newel caps, half-size newel caps come in a range of designs so you can match the newel caps on your full-size newel posts.

Is my newel post structural?

As you say the newel posts usually do form a structural part of the staircase. It is usually possible to replace the bottom post but it is tricky. The other posts are a definite no go on the removal front.

What height should newel post be?

Designs for newel posts are governed by the International Residential Code (IRC), which says handrail heights must be between 34 and 38 inches.

How do you finish a newel post?

Finishing Your Newel Posts Your newel posts come fully hand sanded and ready to be stained and sealed. We recommend that your painter do a final light sanding before final applications to remove any fingerprints from handling the wood. It is important to get finish on the product as soon as possible.

What is the difference between a handrail and a balustrade?

A balustrade is a railing (handrail) and the row of balusters (posts) that support it. And yes, it is spelt “balustrade”, although it is commonly misspelt as ballustrad, ballustrade or balluster. A balustrade can also be known as railing, rail, banister, handrail and parapet.

Is banister the same as handrail?

As nouns the difference between handrail and banister is that handrail is a rail which can be held, such as on the side of a staircase, ramp or other walkway, and serving as a support or guard while banister is the handrail on the side of a staircase.
