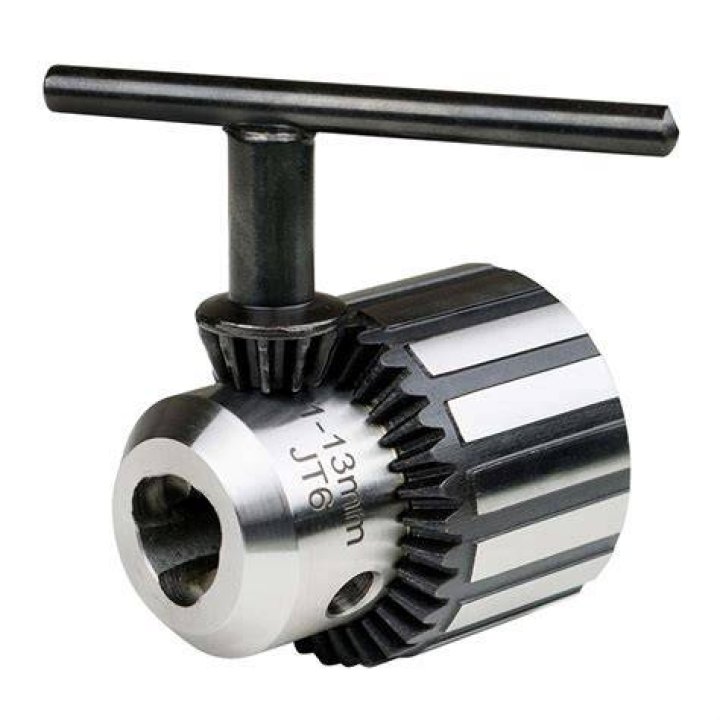

Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.

Is a keyed chuck better?

Most experts and machinists would agree that keyed chucks are more accurate related to overall runout with some models as little as . 0006 inch. The jobs where the holes have no specific tolerance and are used for clearance allows the use of a keyless drill chuck for quick changes on manual milling machines.

What is meant by keyless chuck?

A drill chuck that allows you to replace the drill bits without having to use any special keys is called a keyless chuck. … You can place the bit inside the chuck and then tighten the chuck around it by twisting. Keyless chucks have been widely used on hand drills and compact cordless drills.

Can you replace a keyless chuck with a keyed chuck?

Just use your hand to tighten or close the jaws of a keyless chuck, the chuck is made for that. If you must have the tool in the chuck so tight that you need to use a tool on a keyless chuck, swap out the keyless chuck for a keyed chuck, it is easy enough.

Which is better keyless or keyed chuck?

Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications. Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied.

What does a chuck do?

A chuck is a specialized type of clamp used to hold an object with radial symmetry, especially a cylinder. In a drill, a mill and a transmission, a chuck holds the rotating tool; in a lathe, it holds the rotating workpiece. Chucks commonly use jaws to hold the tool or workpiece.

Is a keyed chuck better than a keyless chuck?

Keyless are MUCH more convenient. Keyed allow you to torque down tighter on the bit. So if you plan on using the drill a lot for things like drilling small to medium sized holes, or driving screws, then get a keyless. If you plan on drilling large holes, or in very difficult materials, then get a keyed chuck.

How can you tell a Jacob chuck?

All Jacobs threaded back, plain bearing chucks can be identified by the letter “B” in the model number. These models can be readily removed from their threaded spindles by following the instructions found on page 15.

Is a drill chuck left hand thread?

Unlike the retaining screw, the chuck is held on with a regular right-hand thread. Turn counter-clockwise to remove. With the opposing action of two wrenches, even the most stubborn of chucks should come loose.

How do you replace a chuck on a keyed drill?

Hold the drill down firmly on a solid workbench, then insert the chuck key and hit it sharply with a mallet (turning it counterclockwise) to loosen the drill chuck from the threaded spindle. You may have to repeat this several times to loosen stubborn chucks. Unscrew the old drill chuck.

Article first time published on

What is a 10mm keyless chuck?

Keyless chuck for use on mains powered, cordless drills and drill drivers. Quick and easy to use these chucks can be operated by hand for fast bit changes. … Suitable for use on rotary drills and drill drives.

How many types of chuck are there?

The most commonly used lathe chucks are the three jaw universal, four jaw independent, and the collects chuck. Three-jaw universal chuck: Three-jaw universal chuck is used to hold round and hexagonal work.

What is chuck size on a drill?

Chuck – The clamp that holds and rotates a drilling bit or driving bit is called a chuck. Its size determines the maximum drill bit diameter for that tool and gives a broad indication of how powerful the drill is. General-use drills have the most common chuck size of 3/8-inch to accommodate the majority of drill bits.

What is the purpose of the clutch on a drill?

These days, manufacturers provide a clutch on cordless drill/drivers with numeric settings on the collar. Its purpose is to disengage the transmission at a range of torque thresholds to prevent overdriving screws in delicate surfaces such as drywall, or damaging small or fragile screws.

When operating a drill press you should?

1. Run drill at correct RPM for diameter of drill bit and material. …
2. Always hold work in a vise or clamp to the drill table.
3. Use a correctly ground drill bit for the material being drilled. …
4. Use the proper cutting fluid for the material being drilled. …
5. Remove chips with a brush, never by hand.

How do you use a keyless chuck on a drill press?

1. Hold your favorite drill or driver bit and turn the chuck until the teeth engage the bit (you can use the trigger to help if you prefer).
2. Hand crank the chuck tighter until you feel it ratchet down. That’s it – simple!

When using drill machine How would you avoid physical injury or any form of hazard?

1. Wear safety glasses or a face shield (with safety glasses or goggles).
2. Keep drill air vents clear to maintain adequate ventilation.
3. Keep drill bits sharp always.
4. Keep all cords clear of the cutting area during use.

Why chucks are used in lathe?

Lathe chucks are used to accurately clamp a workpiece on a lathe for turning operations or can be used on an indexing fixture for milling operations. Manual lathe chucks manually open or close jaws with a screw or pinion. … Forged Steel or steel chucks have greater accuracy, less wear and can be operated at higher RPMs.

Which type of chuck is used for self?

Explanation: Three jaw chuck is also known as universal or self centering chuck. The majority of the chucks have two sets of jaws for holding internal and external diameters.

How are lathe chucks mounted?

To mount a chuck, a lathe operator inserts a chuck’s camlock pins into the lathe spindle, and using a wrench to rotate a cam inside the spindle, the operator pulls the camlock pins inward to snug the chuck tightly against the spindle.

How do you remove a chuck from a Skil drill?

The long portion of the Allen wrench’s L-shape will stick out at a right angle to the drill chuck. Holding the drill firmly on the table, tap the Allen wrench in a counterclockwise direction knock the chuck loose. One or two easy taps should do it.

How do I measure my chuck size?

1. Look closely at the chuck on the drill for the engraved numbers. The chuck size looks something like: 1/4, 3/8, 1/2 etc.
2. Measure the diameter of the hole on the side of the chuck in inches with a ruler. …
3. Take these two dimensions to your local hardware store to make your selection.

Are chuck Keys universal?

Use one universal chuck key for multiple drill chucks. The chuck key fits the most popular chuck sizes and the ratchet action provides fast, easy adjustment of your drill chuck. The dual head is reversible to handle 3/8 in. and 1/4 in.

What is a tapered chuck?

A machine taper is a system for securing cutting tools or toolholders in the spindle of a machine tool or power tool. … Even on many drill presses, handheld drills, and lathes, which have chucks (such as a drill chuck or collet chuck), the chuck is attached by a taper.

What thread size is a Jacobs Chuck?

Jacobs Drill Chuck Keyless 1/2 ” 20 Thread.

How do I find the correct chuck key?

Measure the diameter at the widest point with a ruler to determine the correct chuck key size. For example, common sizes include 5/16-inch, 9/32-inch, 3/8-inch and 1/4-inch chucks.

How big of a drill bit can I put in the drill with a 3/8 chuck?

Drills that have a 3/8” chuck (the end that you put the drill bit into) will only accept bits up to 3/8” in diameter. Drills that have a ½” chuck will accept larger bits up to ½” in diameter.

What are the most popular sizes for drills?

Most power drills for home use have a 3/8-inch or 1/2-inch chuck. Larger chucks come in 5/8-inch and 3/4-inch sizes, but are usually fitted on heavy-duty and industrial power drills and drill presses.

How do you tighten a drill chuck?

Insert the drill bit into the drill chuck. Tighten the drill chuck only by hand until it clicks several times. Rotate the chuck back the opposite way, until you hear and feel one, single click. Once you hear and feel the last click, the drill bit is locked securely into place.

How the drill chucks are held on the machine spindle?

Drill chucks are held on the machine spindle by means of an arbor fitted on the drill chuck. Drift: Taper shank drills are held on machine spindle with the help of sleeve, morse taper and socket. Drift is used to remove the socketf from the machines spindle.

Why is my drill bit stuck in wood?

Drill bits have varying lengths and diameters. If you have a drill bit stuck in wood, you’re probably facing one of two scenarios: either the drill bit’s shank is protruding from the wood, or the bit’s shank snapped off and left the bit fully embedded in the wood.
