Cavity fire barriers and fire-stops are two types of passive fire protection that can slow or stop the spread of flames and smoke in a fire situation. … A cavity fire barrier fills concealed internal gaps within walls, ceilings and other parts of a building.

What is a cavity stop sock?

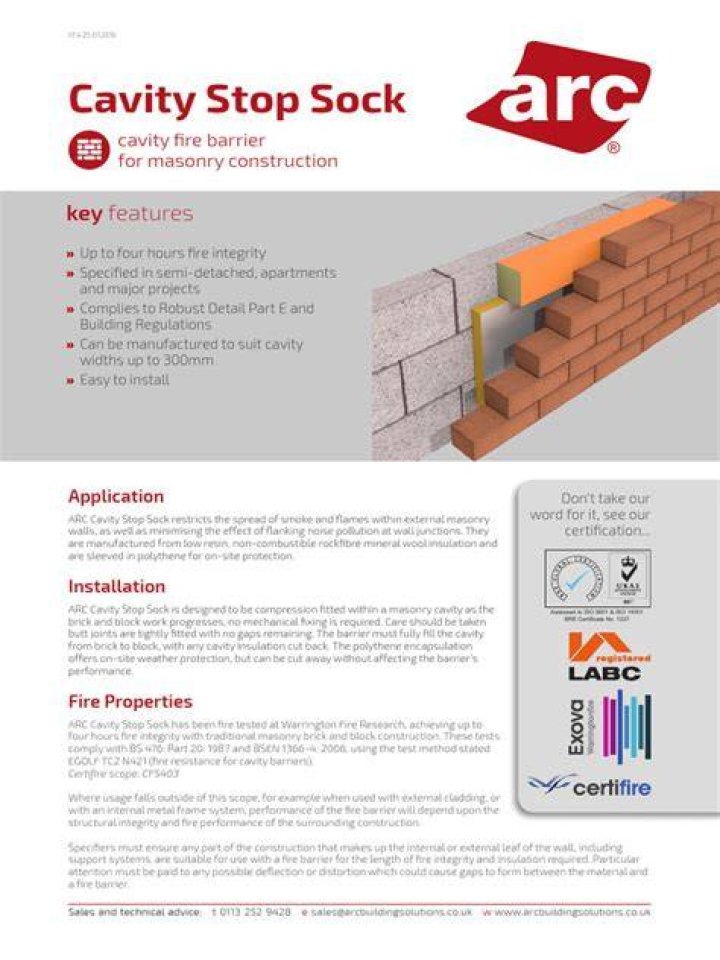

Cavity Stop Socks are designed to prevent the passing of fire and smoke through cavities in walls. They can be used throughout cavity walls, but are normally reserved for use at the wall junction. They also provide excellent acoustic insulation.

What is the purpose of a cavity barrier?

Cavity barriers are utilised to close hidden gaps and stop the permeation of flame or smoke and kerb the spread of fire. Ceiling voids and cavity walls would fall under such concealed spaces and would typically be installed with cavity barriers during house building.

What is a firestop in a wall?

Firestops are physical barriers designed to prevent the spread of flames, deadly gases and toxic smoke through openings created during building upgrades and the installation of electrical, communications, plumbing, and ventilation systems, as well as grease ducts.

What is a cavity wall barrier?

Cavity barriers are typically pieces of fire-stopping material which are fitted within building cavities – horizontally at each floor, and vertically at each party wall. This assists with fire compartmentation. … Services that may run through a barrier should be fire-stopped using appropriate materials.

What are cavity trays made of?

Cavity trays can be formed using a pliable material such as lead, but more commonly they are pre-formed, with a wide range of shapes allowing for different cavity widths, corners, stop ends, steps, lintel shapes, arch shapes and sometimes incorporating external flashing.

Should a cavity wall be closed at the top?

The cavity barrier must be closed at the top of the wall for the provisions of Diagram 34 ADB(V2) to apply. Note that a cavity barrier should, wherever possible, be tightly fitted to a rigid construction and mechanically fixed in position.

Who can install fire stopping?

It is not required by law for firestopping products to be installed by contractors with third party certification. However, having acquired third party accreditation means that the contractor has gone through an audit and their staff has received relevant training.

What is blocking in framing?

Blocking is lumber installed within framing meant to be a nailer for something else later in the build. … Install Ladder Blocking everywhere an interior wall intersects an exterior wall. Best Practice: Install ladder blocking before standing interior walls to help tie them securely to exteriors.

Where do you need cavity closers?

A cavity closer fits within a cavity wall, where windows and doors are fitted. Cavity closers are required for a number of reasons within a building to protect it from various factors, including water ingress, damp, heat loss and condensation.

Article first time published on

What is the minimum time a cavity barrier should resist fire?

Cavity barriers need to achieve a minimum of 30-minute fire resistance (30/15 EI).

Is decay a cavity?

No, tooth decay is not the same as a cavity. However, tooth decay can cause cavities. Tooth decay, or also referred to as dental caries, start as plaque, the sticky film that builds up on your teeth.

Are cavity barriers required in masonry cavity walls?

According to the guidelines cavity barriers need to be installed around ALL openings in cavity walls. The only exception to this rule is when walls have two leaves of masonry or concrete that has a minimum thickness of 75mm. In this case cavity closers need to be installed at the top and around the openings.

Where do fire socks go?

BS 9991 requires that cavity barriers should be provided in an external wall (n.b. barriers are required in other locations as well): To close the edges of cavities, including around openings (such as window / door openings, extract vents, etc.).

Can I use expanding foam to close cavity?

Yes, you can use expanding foam insulation as cavity wall insulation. … Expanding foam insulation can be applied to any surface to prevent draughts and enhance structural integrity, thus making it ideal for cavity walls.

Can you plasterboard over cavity closers?

Yes, it will hold.

What happens if weep holes are blocked?

Whatever you do, do not fill those weep holes. They’re an integral part of the drainage system to keep water from building up behind the brick. If allowed to contact any untreated lumber, this water will cause serious wood rot, mold and, eventually, structural problems with your home.

What do weep holes do?

The inclusion of weep holes in masonry walls is intended to serve two purposes: … Ventilation: They allow ventilating air to the back of a wall to help prevent mildew, dry rot and damp which might otherwise reduce the life or performance of building materials such as cavity wall-ties, cavity insulation and so on.

Can cavity trays fail?

Problems can occur when the cavity tray goes under any flashings or DPC’s associated with the detail. Failure to extend the cavity tray in front of the window head may divert water down the face of the frame or onto the back of the frame, where it may accumulate in weathering grooves.

What is fire blocking in a house?

Fireblocking is used to subdivide or block off the stud cavity inside a wall, in a soffit over cabinets, between stair stringers at the top and bottom of a run, in an exterior cornice, or in the space between the combustible finish materials and the wall itself.

What is Draftstopping?

“Draftstopping” is defined in both the International Residential Code (IRC) and the International Building Code (IBC) as, “A material, device or construction installed to restrict the movement of air within open spaces of concealed areas of building components such as crawl spaces, floor-ceiling assemblies, roof- …

What is the wood between studs called?

The cavities between the studs are called bays (or stud bays). A horizontal piece at the bottom of the wall is called the bottom plate.

Do joists have to line up with studs?

Although not a requirement, it is highly recommended that your floor joist and wall studs line up with each other. Most homes have uniform flooring, and it should not be a problem to have them lined up together since they follow the same spacing. Doing this makes it easier to work with these building components.

What is a cripple in framing?

In carpentry, the term “cripple” refers to a special-purpose wall stud or roof rafter. … Spaced 16 or 24 inches on center, they carry the regular wall stud layout across the framed opening. Both cripple studs and cripple rafters are made from the same stock as other studs and rafters—they’re just cut shorter.

Is fire stopping a legal requirement?

Fire stopping is required to control the spread of fire through the use of fire-rated compartmentation of a building. … Suppose cables or pipes breach fire-resisting elements. In that case, gaps must be sealed to ensure that the penetrations do not cause a decrease in the integrity of the resisting material.

How do you fire stop around pipes?

If your pipes pass through a brick wall, seal them in place with fire-resistant mortar, or use a fire batt cut to fit around the pipe. Fire batt is a mineral fibre board coated with a special mastic that turns into fireproof ceramic in the case of a fire, offering up to 4 hours protection.

What is the difference between a cavity barrier and firestop?

A cavity fire barrier fills concealed internal gaps within walls, ceilings and other parts of a building. Fire-stops typically fill visible gaps around openings or joints in fire-resistance rated walls.

What way round do cavity closers go?

Which way round do you fit a cavity closer? The plastic part of the cavity closer should always be touching the outer brick wall and not the inner block wall, as the drawing shows below.

How wide should a wall cavity be?

Cavity wall construction As the name implies, a cavity wall comprises an inner and outer wall, often referred to as leafs. These are separated by a cavity that is typically 100mm to 150mm, which is spanned by ties connecting both leafs.

How thick are cavity closers?

Depth32 mmHeight32 mmMaterialPhenolicThermal Conductivity0.022 W/mKTypeCavity Closer

Do I need fire rated cavity closers?

Create a fire barrier – To comply with Building Regulation Part B a fire rated cavity closer should be used. A fire rated cavity closer can prevent the spread of fire for up to 1 hour. A purely insulted cavity closer without a fire rating will not actually comply with part B.
