The sum of the two is 208V. As you would expect, if the two waveforms were coincidental (peaked at the same time), you would add both 120V peaks together to get 240V. The purpose of this device is to allow a path for the UPS protected equipment to be fed by utility power in the event of UPS service or replacement.

What is 208 voltage used for?

The most common commercial building electric service in North America is 120/208 volt wye, which is used to power 120 volt plug loads, lighting, and smaller HVAC systems. In larger facilities the voltage is 277/480 volt and used to power single phase 277 volt lighting and larger HVAC loads.

Can I use 208V instead of 240V?

In short, just because a 208v motor may be designed to run on 230v or 240v systems by using two power legs from the utility source, that doesn’t mean that it will provide the same output efficiency. You will see differences in performance if you try to use 208v when 240v is typically required.

Is 208 the same as 220?

208V is a line to line voltage of a 208/120Y system. 220V is a line to ground voltage of a 380/220Y system. 240V is the line to ground of a 415/240Y system.

Is 208 a single phase?

In the USA, 208V single phase and three phase voltage is one of the standard voltage levels used for commercial applications.

Is 208V always 3 phase?

208 volts is Line-to-Line Voltage. This three Phase voltage is frequently used in small businesses. … It is 208 volts /1.732 which is 120 volts. The power is brought is as 208 volts 3 Phase and then the Line-to-Neutral Voltage will be 120 Volts.

Why does 208 not need a neutral?

Although phase balanced can occur, there is no neutral connection on 208 circuits, therefore no physical way for current to flow. The only purpose for a neutral would be for 120 convenience outlets. This is assuming all loads are hot-to-hot with a standard 120/120/120 Wye service.

How does a buck boost transformer work?

How Does it Work? A buck-boost transformer works by taking input voltage from the primary side of the transformer and stepping it up or down – depending on the preferred configuration. Rectified voltage is then provided on the secondary side (output), where it can be used by a connected device or machine.

Is 208V more efficient than 120V?

In the Silicon Valley, California, many small offices are abuzz with the sound of servers and workstations because 120V is available. In terms of power supply efficiency, 208V is generally around 2% more efficient with figures commonly quoted in the 1-3% range.

Can I use a 230 volt motor on 208?

This is a NEMA requirement. So, a 230 volt motor can operate as low as 207 volts. When a motor is rated at 208/230 volts this means the motor will operate at the 208 volt rating, not 10% under the 208 volt rating.

Article first time published on

What is the difference between 208 and 277?

208 is phase to phase of 120/208 system. 277 is phase to neutral of a wye phase to phase is 480. 240 could be phase to phase voltage of a 3 phase delta or if single phase it could a 3 wire Edison. This is commonly used in North America typically the center of the winding is tapped and earthed.

Can I run a 208V motor on 240V?

If the motors are single voltage 208V (there are also dual voltage motors), their use at 240V, a 15% overvoltage, will cause overloading and overheating of the motor. Your best bet would be to get a buck/boost transformer connected in buck mode to drop the 240V down to something much closer to 208V.

What is the difference between 208V 220V and 240V?

In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. However, 208V refers to a different system voltage level. … The 208VAC system is not the same as 240VAC. It uses a “Y” style transformer with a neutral, and will yield 208VAC between two phases and 120VAC from hot to neutral.

What is the difference between 120V and 208V?

Capacity: The main difference between 120V and 208V is that 208V circuits have more power and density, therefore requiring less PDU’s needed in the rack. For example, here’s the two most common circuits at 80% total power: 15A at 120V circuit has capacity for 1.8kW at 80%, equaling 1.44kW.

How do you measure 208 voltage?

The formula is volts times the square root of 3, which happens to be rounded off to 1.732. For 2 lines each carrying 120 volts, the calculation for this is 120 volts times 1.732, and the result is rounded up to 208 volts. That’s why we call it a 208 volt three-phase circuit, or a 208 volt 3 phase line.

How do you get 277 from 480?

So if you’re wondering how we get numbers like 208, 277 you use 1.732 (because they’re three-phase voltages). For example 480 / 1.732 = 277 volts, and 120 x 1.732 = 208 volts.

What is 240V single phase?

Single Phase 120/240 It may also be called Split Phase 240. This configuration consists of 2 voltage legs that are 180 degrees apart. The voltage between the two legs (called phase to phase or line to line) is 240V and the phase to neutral voltage is 120V.

Does 208 have a ground?

The 208V is phase-to-phase, between any of the 3 phases, and has no reference to ground, whereas the 120V is phase to neutral – hence the phase voltage to ground is 120V – if and only if the neutral is indeed tied to ground.

What is a 208 volt circuit?

208V is the voltage between phases of a 3-phase “Y” circuit that is 120V from neutral to any hot. 480V is the voltage between phases of a 3-phase “Y” circuit that’s 277V from hot to neutral. In keeping with 110V versus 120V strangeness, motors intended to run on 480V three phase are often labeled as 440V.

How do I know what size wire I need?

Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms. 30,000 x 1.724 x 10^-8 = 0.0005172 ohm sq.

What are phases in electricity?

What is Phase in Electricity? Generally, the phase-in electricity is the current or the voltage among an existing wire as well as a neutral cable. Phase means the distribution of load, if a single wire is used, an additional load will occur on it & if three wires are used then loads will be separated between them.

What is the difference between 208V single phase and three phase?

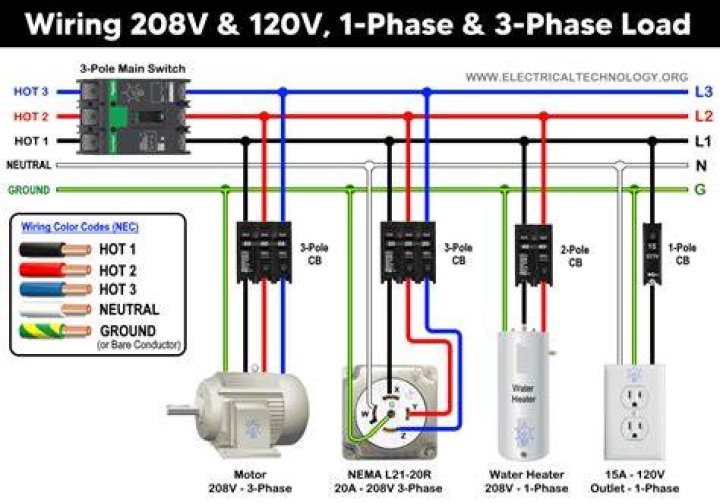

208V 3 Phase power has 3 electrical legs (phases) evenly spaced in a circle (360 degrees / 3 phases = 120 degrees) around a center (neutral). … 208V 3 Phase power also goes by the names 208V 3 Phase 4 Wire and 208Y/120V. These are technically more accurate because they refer to the neutral.

What is 1ph power supply?

A single-phase (1-phase) has less power, requiring two wires; while, three-phase (3-phase) requires more, including three or four wires. What is a Single-Phase Power? Single-phase power simultaneously changes the supply voltage of an AC power by a system.

How can I get 120V from 208?

Locate and identify the ground or neutral terminal of the 208-volt 3-phase system. Connect the input terminals of your circuit between any phase conductor and the neutral terminal of the system. This connection point will deliver 120-volts to your circuit.

What does 120V 208V mean?

120/208VAC means that power distribution is 3 phase with neutral connection (Y System). 120V represents voltage of each phase to neutral point and 208V represents voltage between any two phases. For balance systems, line to neutral voltage is line to line voltage divided by 1.73 (Sq. root of 3).

What is difference between boost and buck?

In PV applications, generally, a Buck converter is used to charge the battery (since the output from a Buck converter is supposed to be less than its input), while a Boost converter is used to “match the load voltage” from the (supposedly) low voltage PV input.

What would happen if the connection of the buck-boost transformer is reversed?

Single phase Buck-Boost transformers rated 3KVA and above can be reverse connected with no loss in capacity and with voltage stability. … These may be reverse connected, but the output voltage will be less than nameplate due to the compensation factor of the windings.

How do you pick a buck-boost transformer?

You should have the following information before selecting a buck-boost transformer. Line Voltage — The voltage that you want to buck (decrease) or boost (increase). This can be found by measuring the supply line voltage with a voltmeter. Load Voltage — The voltage at which your equipment is designed to operate.

Will a 220v motor run on 208V?

Most devices designed for 220 will run on 208 and in shops all over the place this is commonly done. Purely resistive components (like heaters) will run at a slightly lower power. So, your machine will work, but will take longer to come up to temperature.

What is the difference between 220 volt and 230 volt?

Wiring an outlet for 230 volts is identical to wiring an outlet for 220 or 240 volts. When electricity is wired into a home, the power company delivers electricity at 120 and 240 volts with a plus or minus of 5 percent. Therefore 220, 230 and 240 volts are all interchangeable and wired the same.

What is each leg of 480v?

From contributor T: The 480 VAC will be 277 from each hot leg to neutral. In three phase applications, the 480 typically is stepped down to 208 VAC. Then, each hot leg off the step down transformer will be 120 VAC hot to neutral.
