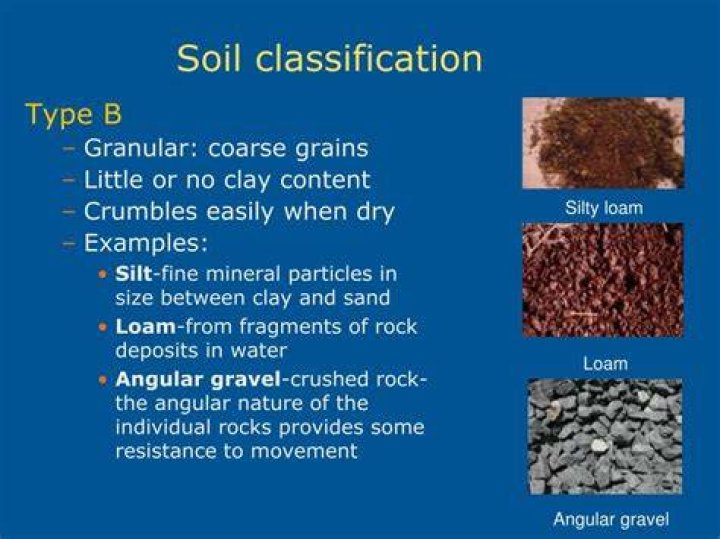

Type B Soils are cohesive soils with an unconfined compressive strength greater than 0.5 tsf (48 kPa) but less than 1.5 tsf (144 kPa).

What is the OSHA required maximum angle of repose when sloping a soil classified as Type A?

Maximum allowable slopes for excavations less than 20 ft (6.09 m) based on soil type and angle to the horizontal are as follows [Source]: Maximum allowable slope for Stable Rock is a vertical Height:Depth ratio / 90° Slope angle. Maximum allowable slope for Type A soil is a ¾:1 Height:Depth ratio / 53° Slope angle.

What are the sloping requirements of a Type 3 soil?

Type 3 soil must be sloped from the bottom of the excavation or trench, with a slope at an angle not steeper than one horizontal to one vertical, or 450 measured from the horizontal .

What is the total width at the top of the excavation when sloping Type B?

Type B (6 feet x 2) x 1 + 2 feet = 14 feet wide at the top. Type C (6 feet x 2) x 1.5 + 2 feet = 20 feet wide at the top.

What is the maximum allowable slope for Type C soil?

Type C Soils shall have a maximum allowable slope of 1 1/2:1 (34 degrees). Supplemental information on sloping and benching configurations are presented in Exhibit 1. For excavations greater than 20 ft depth, the slope or bench shall be designed by a registered professional engineer.

What is the maximum allowable slope?

Maximum allowable slope means the steepest incline of an excavation face that is acceptable for the most favorable site conditions as protection against cave-ins, and is expressed as the ratio of horizontal distance to vertical rise (H:V).

What is the maximum allowable slope for an excavation less than 20 feet in a Type B soil?

APPENDIX B Combination System for TYPE B Soil For combination slope/bench systems in TYPE B soil and a trench depth of less than 20 feet, the steepest maximum allowable slope is 45 degrees from the horizontal is allowed only if a trench support or shield is used. This translates to a 1H: 1V incline and is shown below.

When vertical shores are used there must be a minimum of feet?

(6) When vertical shores are used, there must be a minimum of three shores spaced equally, horizontally, in a group.

What is sloping excavation?

Sloping (Sloping system) means a method of protecting employees from cave-ins by excavating to form sides of an excavation that are inclined away from the excavation so as to prevent cave-ins.

How do you calculate slope of soil?

For example, if the trench is 6 ft deep and 20 ft wide across the end of the trench and the bottom of the trench is 2 ft wide, the slope can be calculated as follows: Horizontal distance = 20 ft – 2 ft ÷ 2 = 9 and the Vertical depth = 6 ft; Slope = 9 ÷ 6 = 1.5 to 1, which is the slope needed for type C soil.

Article first time published on

What is the maximum depth of a benched excavation in Alberta?

See Figure 32.11; (4) the maximum depth of a benched excavation is limited to 6 metres. Increasing the depth of the excavation or increasing the height of the slope and benches increases the risk of slope failure, compromising the safety of workers within the excavation.

How do you calculate excavation volume and slope?

So, the formula is: Ab = Wb * Lb, where Wb and Lb are the width and length of the bottom of the excavation. At = Wt * Lt, where Wt and Lt are the width and length of the top of the excavation.

What is the maximum excavation depth before an exit ladder stairway is required?

So OSHA excavation standards require that a stairway, ladder, ramp or other safe means of egress shall be located in trench excavations that are 4 feet or more in depth so as to require no more than 25 feet of lateral travel for employees.

How much slope does a trench have?

The OSHA guidelines for trench sloping are generally pretty simple: for trenches less than 20 feet in depth, the slope needs to be cut back to 1.5 times wider than the depth of the trench.

At what depth is benching required?

Sloping, benching, or other approved cave-in protection systems must be utilized in excavations 5 feet or greater in depth.

What does a 4 1 slope mean?

For example, “slopes are expressed as ratios such as 4:1. This means that for every 4 units (feet or metres) of horizontal distance there is a 1 unit (foot or metre) vertical change either up or down.“

What type of soil Cannot be benched OSHA?

Type C soil cannot be benched.

What is Type C soil?

Type C soil is the least stable type of soil. Type C includes granular soils in which particles don’t stick together and cohesive soils with a low unconfined compressive strength; 0.5 tons per square foot or less. Examples of Type C soil include gravel, and sand. … Clumps mean that the soil is cohesive.

What is 4H 1V slope?

Side slopes of 1V:4H or flatter are considered traversable and recoverable. Slopes of 1V:3H are traversable, but are not recoverable. Slopes steeper than 1V:3H are neither traversable nor recoverable.

What is the maximum depth that can be excavated below the bottom members of an excavation support system?

In addition, the standards permit excavation of 2 feet (0.61 meters) or less below the bottom of the members of a support system, but only if the system is designed to resist the forces calculated for the full depth of the trench and there are no indications, while the trench is open, of a possible loss of soil from …

Which type of soil is the most cohesive?

Clay is a very fine grained soil, and is very cohesive. Sand and gravel are course grained soils, having little cohesiveness and often called granular. Generally speaking, the more clay that is in the soil being excavated, the better the trench walls will hold up. Another factor in soil cohesiveness is water.

What is a 2 1 slope?

Numerically speaking, slope is the change in elevation (rise) over a given distance (run). In other words, the number of feet the land rises or falls over a horizontal distance. Slope is often described in terms of percent. … A 2:1 slope is also 50% slope, and a 1:1 slope is 100% slope.

What is a 100% slope?

Slope is a measure of change in elevation. … A rise of 100 feet over a run of 100 feet yields a 100 percent slope. A 50-foot rise over a 100-foot run yields a 50 percent slope.

What is the maximum lateral travel distance to a ladder inside an excavation?

Means of egress from trench excavations. A stairway, ladder, ramp or other safe means of egress shall be located in trench excavations that are 4 feet (1.22 m) or more in depth so as to require no more than 25 feet (7.62 m) of lateral travel for employees. Exposure to vehicular traffic.

What is a 1 in 3 slope in degrees?

The normal answer is a rise of one for a run of three. This gives us a slope of 18.4 degrees. But in some countries when this term was used for the roads it was a rise of one but the run was actually measured along the road. This gives an angle of 19.5 degrees.

What is the minimum distance allowed between a spoils pile and trench's edge?

Keep excavated soil (spoils) and other materials at least 2 feet (0.6 meters) from trench edges. Know where underground utilities are located before digging. Test for atmospheric hazards such as low oxygen, hazardous fumes and toxic gases when > 4 feet deep. Inspect trenches at the start of each shift.
