Sheathing Plywood (Common: 15/32 in. x 4 ft. x 8 ft.; Actual: 0.438 in. x 48 in.

What is the true size of a sheet of plywood?

A standard sheet of plywood is 4′ x 8′ and will cover 32 square feet. The 4′ x 8′ size correlates to the spacing on floor joists, roof trusses or wall studs for easy installation.

What is the actual size of 12 plywood?

The standard thicknesses for plywood are 1 ¼, 1 1/8, ¾, 5/8, ½, 3/8, ¼, and 1/8 inches. The corresponding actual thicknesses are 1 ¼, 1 1/8, 23/32, 19/32, 15/32, 11/32, 1/4, and ⅛, respectively.

What size is 12mm plywood?

ImperialMetric3/8 in.9.5 mm7/16 in.11 mm15/32 in.12 mm1/2 in.12.5 mm

What is 12mm plywood used for?

12mm Ply is often used by furniture makers to create drawers and cabinets, we’ve seen some beautiful creations using our 12mm Russian Birch Plywood – which has been incredibly popular amongst our joiner clientele.

What is 15mm plywood?

Specifications. Our 15mm Hardwood Plywood is made up of 3 or more thin layers of wood veneer laid on top of each other and glued with the grain of each segment. … This Plywood is B/BB Graded, so it already has a great surface finish, but can be varnished or painted if you require a different finish.

What is CDX plywood?

CDX Plywood is used primarily by contractors to build exterior walls and roofs. CDX plywood has one side veneer grade “C” and one side veneer grade “D”. The two are bonded together with glue which can withstand a little moisture. The APA would recognize CDX Grade Plywood as C-D Exposure 1 plywood.

Is 15 32 The same as half inch?

NOMINAL VS. ACTUAL SIZES1/4-inch11/321/2-inch15/325/8-inch19/323/4-inch23/32

Does plywood come in 12 foot sheets?

If building in the United States, the length and width of plywood is measured in standard units. As described, the most common size for a sheet of plywood is 4 x 8 feet. … Also available for utility plywood are sheets that measure 5 feet wide and come in lengths of 6, 8 and 10 feet.

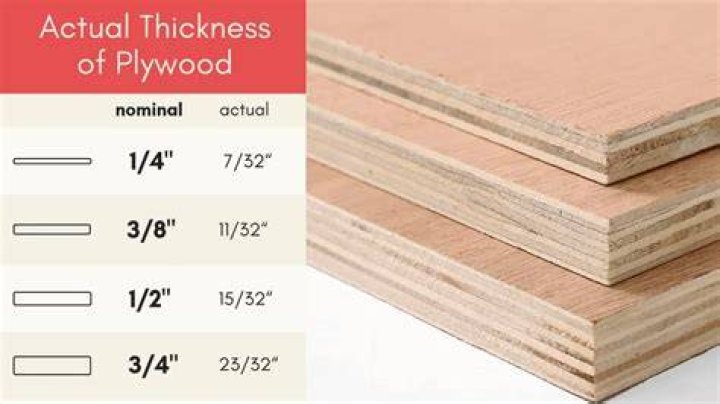

Is there a true 1/2 inch plywood?

Plywood is often sold in 1/4“, 1/2“, or 3/4” nominal thicknesses, but the actual thickness is often 1/32” thinner. Because the actual thickness may vary measuring the plywood is the only accurate way to determine its thickness. A 3/4” sheet is actually 23/32” thick. A 1/2” sheet is actually 15/32” thick.

Article first time published on

What is the actual dimension to OSB?

Oriented Strand Board (Common: 19/32 in. x 4 ft. x 8 ft.; Actual: 0.578 in. x 47.75 in.

What is nominal size plywood?

The nominal thicknesses of plywood range from 1/8 inch, or 3.2 mm, to 1 1/4 inches, which is equivalent to 31.75 mm. These often aren’t the actual thicknesses, however, because sanding during manufacturing removes up to 1/32 inch of material.

How many board feet are in a 4x8 sheet of plywood?

Find the square footage of each space and add together to find the total square footage needed. Divide by the total square footage by the square footage of a sheet of plywood to find the number of sheets required to cover the space. A 4×8 sheet of plywood is 32 ft2.

Is 12mm plywood strong enough for shelves?

It is not so strong as solid timber and will tend to sag except under a very light load. Use 12mm chipboard as a minimum and support the shelf at no greater than 300mm centres for all but the lightest of loads.

Which is stronger plywood or blockboard?

Strength and durability Mostly uses hardwood veneers arranged in a uniform cross-layered pattern. Plywood is much stronger than blockboard. Plyboard is strong compared to particleboard and MDF but is less durable as compared to plywood.

How thick should plywood be for cabinets?

Use 1/4-inch plywood for the cabinet back unless it will support the weight of the cabinet, in which case 1/2 inch is a better choice. Select 1/2-inch plywood for drawer sides, fronts and backs, but 1/4 inch is suitable for drawer bottoms. Plain front plywood doors are rare, but they can be made from 3/8-inch plywood.

What is BC grade plywood?

BC Plywood is a top quality product with a smooth surface. The BC simply means there’s one B-grade side sanded and smooth, backed by a C-grade side. BC Plywood is ideal for jobs that require a finished sanded product.

What is marine grade plywood?

Marine Grade Plywood is an exterior structural panel, sanded on both sides, most commonly made from Douglas fir or Pine. Other species of hardwood may also be used for marine plywood, usually in the Marine (boating) industry.

What is PRS plywood?

Coastal produces Performance Rated Sheathing panels as defined in US Product Standard PS2-10 for Construction and Industrial Plywood. The Performance Rated Sheathing has designated Span Ratings for use in load-carrying applications.

How many plies are in plywood?

Plywood Thickness (mm)Number of Plies (including face veneers)5.2-6.55 or 797 or 9129 or 111511 or 13

Can you get 8mm plywood?

This flexible plywood panel is commonly called bendy plywood or flexibly, and is used extensively in furniture and shopfitting, wherever curves are desirable, thus demanding a panel that is extremely flexible. …

What is the standard size of plywood in the Philippines?

The standard dimension of plywood is 4 feet x 8 feet. Price currency is in Philippine Peso (Php).

Why is plywood so expensive right now?

Wood is fairly abundant, in North America, especially in the southern forests. Modern mills are very efficient at turning logs into 2x4s and sheets of plywood. Lumber and plywood prices are so high now because of the short-run dynamics of demand and supply. Wood demand shot up in the summer of pandemic.

What is the cheapest plywood you can buy?

D-grade plywood: The cheapest type of plywood veneers, these sheets typically haven’t been repaired. The flaws can be slightly larger and the knots in this type of plywood can be up to 2.5 inches in diameter. CDX: CDX-grade plywood is typically inexpensive material, as it is made of the two lowest grades (C and D).

What size plywood is best for subfloor?

The minimum thickness of plywood for subflooring is about 5/8 inch. Since it does not hold fasteners as well as plywood, OSB must be a little thicker, or at least 23/32 inch.

What is the actual thickness of 1 inch plywood?

Thickness (inch)Thickness (milimeter)1-1/4”31.75mm

Why is plywood in 32nds?

The reason un-sanded plywood, such as sheathing, is described as 15/32-in. thick is to reflect the manufacturer’s tolerance of 1/32 inch, even though in layman’s terms the sheet is equivalent to a 1/2-in. sheet of plywood.

How many 32nds are in an inch?

There are 32 32nds in 1 inch.

What are the 3 types of plywood?

Although specialty plywood can have any number of plies above three, most plywood is categorized as 3-ply, 5-ply or multi-ply. 3-ply is one of the most common types of plywood. It is about 2- to 3-millimeters thick and is generally used indoors, since it looks more decorative than thicker plywood boards.

Is OSB stronger than plywood?

OSB and plywood offer similar (and sufficient) performance in terms of strength and functionality, though plywood is about 7% stronger. … Plywood will absorb moisture quicker than OSB, but consequently it will also dry quicker.

Will Lowes cut my wood for me?

We make your projects easy. We can cut lumber, mini-blinds, pipe, rope, chain and more. Lowe’s also offers free pipe threading and cutting for any size of galvanized or black iron pipe.
