PEX is inexpensive, cuts and joins easily, and requires few special tools. PEX tubing is also very easy to bend.

How much can you safely bend PEX?

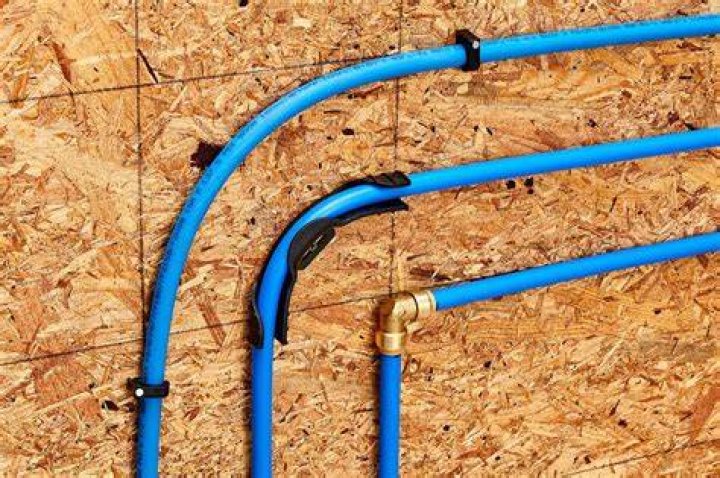

PEX Bend Supports allow for 90° bends to be made with PEX tubing which can eliminate the need for additional fittings in certain instances, reducing the amount of potential leak points in a plumbing system. Bend supports also help to reduce noise and vibration.

At what temperature will PEX pipe burst?

But be aware that the general rule of thumb is that pex tubing can withstand temperatures of up to 200 degrees Fahrenheit.

How much heat can PEX pipe take?

The maximum heat temperature of the PEX tube is 200 degrees. The maximum heat of the PEX can be up to 180 degrees. The PEX tubing has the highest temperature limitation listed in small prints.

Is it better to bend PEX or elbow?

Use PEX bend supports instead of elbows. While these, unlike elbow fittings, cannot provide a sharp turn, they are suitable for most frame homes and will provide a certain degree of protection for the pipe from rigid/abrasive stud edges.

Can PEX bend 180 degrees?

Bending radius Over-bending the PEX pipe, deforms its’ round shape, restricts flow and over-stresses the pipe. Note: minimum bending diameter only refers to the 90-degree and 180-degree (U-shaped) bends. Parallel runs of pipe can be spaced as close as necessary.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

Does PEX freeze and bust?

Due to its flexibility (polymers), PEX has a small margin of expansion under the damaging pressure caused by ice formation. If the weather gets cold enough, PEX pipes can and will freeze – – like any plumbing. However, PEX may be less likely to rupture as a result of freezing.

Where is PEX not allowed?

PEX can’t be installed in high heat areas. You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.

Is PEX OK for hot water?

White PEX pipe can be used for either hot or cold water. Gray PEX pipe, like white, can be used for either hot or cold water (although not all DIY centers carry gray).

Article first time published on

What type of PEX is used for heating?

A: Oxygen barrier type PEX pipe has an external polymer coating called EVOH or “oxygen diffusion barrier” and it’s the type used for all standard closed loop heating applications, including floor heating, baseboard/radiator heating and snow melting.

Can Blue PEX be used for hot water?

PEX without an oxygen barrier is designed primarily for use in potable water plumbing systems. … The color of PEX does not change any of the tubing’s ratings. There would be no problem, for example, using blue PEX for hot water lines or red PEX for cold water lines.

Do PEX pipes need to be insulated?

Does PEX Pipe Need To Be Insulated? Yes, although PEX pipes can withstand freezing temperatures better than other pipe materials – but they are not freeze proof! If the temperature drops below 20 degrees Fahrenheit your pipes have a very good chance of freezing.

Does PEX freeze faster than copper?

Unlike rigid materials like steel and copper, PEX piping stands up well to expansion caused by frigid temperatures. But pipe ruptures are possible if the weather gets cold enough. While PEX pipes don’t freeze as easily as copper, when they do freeze and thaw repeatedly they start to lose their flexibility.

What is the difference between PEX A and PEX B?

Flexibility – PEX-A is the most flexible, allowing for it to be fastened by cold expansion, which allows the end to be fluted prior to inserting the fitting. PEX B is not expandable and you should never expand the end of a PEX-B pipe. Kink-Resistance – PEX-A has the greatest resistance, PEX-B the lowest.

How far can I run 1 2 PEX?

A 3/8-inch line is sufficient for lengths up to 250 feet; 1/2-inch line will deliver adequate water pressure up to 350 feet; and 3/4-inch tubing is necessary to run a 500-foot line. Look for a maximum recommended lengths specification on the PEX packaging.

Will PEX elbows reduce flow?

The reality is that even PEX expansion fittings, which are sometimes referred to as “full-flow,” restrict flow rates. … At a rate of 8 feet per second, the CPVC fitting will cause less than 1% restriction in flow while PEX fittings create a 23% to 54% reduction in flow, depending on the fitting used.

Should I use copper or PEX?

We generally belive that Plumbing PEX Tubing is much better than Copper for most, if not all, plumbing systems. … PEX Tubing is much more resistant to freeze-breakage than copper or rigid plastic pipe. PEX Tubing is cheaper because it takes much less labor to install. PEX Tubing is quickly becoming the industry standard.

How long does PEX pipe last?

Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.

Can mice chew through PEX pipe?

Mice and rats will chew through anything they can, including plastic, so PEX tubing is at just as much risk as the plastic-coated wiring in a car or an HVAC unit. While all rodent damage can be expensive, if rodents chew through a home’s PEX water pipes, the result can be disastrous.

Is PEX safe for drinking water 2021?

With a plumbing-pipe offering in sizes up to 3 inches, PEX is challenging traditional copper and CPVC materials for domestic water applications. … This provides confirmation the pipe does not leach harmful substances into drinking water and is safe for potable systems in healthcare facilities.

Can hot and cold PEX lines touch?

Hot and cold PEX water lines run through the same hole in a stud wall. … This is not a typical installation; both pipes should have their own holes to pass through the framing.

How much psi can PEX?

PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing). So neither the pipe nor the fittings are weak points, making for an extremely high-performing system in domestic water and hydronic piping applications.

Can PEX be used behind walls?

03-17-2016, 07:16 AM Re: PEX question: T fittings inside a wall. by The Famous Grouse (Hopefully this is a …) Grouse, yes pex is allowed in a wall.

Should I replace my copper pipes with PEX?

The installer recommends replacing my copper pipes with PEX. … If so, you could get another 23 years out of your copper pipes and spare the cost to replace plumbing. If it’s a small area that’s leaking, you could just replace that section with either PEX or copper. Both types are interchangeable.

Can PEX be exposed in garage?

Detached garages,firewalls,etc has NOTHING TO DO WITH PEX EXPOSED IN A GARAGE.

Is PEX freeze break resistant?

A: No, PEX pipe is freeze-damage resistant, meaning the pipe will expand if frozen and contract to its original shape when thawed. … PEX pipe is not freeze-proof, however, meaning that the water in the pipe can still freeze and block the flow.

Is PEX better than PVC?

When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. … When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)

How long is PEX exposed to sunlight?

they said, generally, pex pipe company allow 30-60 days uv exposure.

Is PEX safe for drinking water 2020?

The inner pipe for drinking water is made of a plastic called cross-linked polyethylene (PEX). … There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.

What's the difference between PEX and PEX A?

Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.
