O-Rings are produced using a variety of manufacturing techniques like extrusion, compression molding, injection molding, transfer molding or machining. Depending on the application, they can be made from a plethora of materials: nitrile rubber, silicone, polyurethane, neoprene, fluorocarbon as well as other elastomers.

How are O-rings manufactured?

The production and manufacturing of O-rings involves the use of extrusion or injection, compression, and transfer molding. The extrusion part of the process is used to shape elastomers for the molding process.

What is O-ring material?

O-rings are mechanical gaskets with a round cross section. They are used to prevent gas and fluid leaks in static and dynamic applications and are manufactured from various types of elastomers. Some of the common types of O-ring materials include PTFE, Nitrile (Buna), Neoprene, EPDM Rubber and Fluorocarbon (Viton).

Are O-rings made of natural rubber?

an o-ring that is made from natural rubber – the stuff that comes from rubber trees – today. What you will find instead is a product that is made out of a synthetic material, called an elastomer, that looks, feels and behaves like one might think natural rubber would.

What are black O rings made of?

Black o rings are primarily neoprene or Nitrile or, in some cases, a mix of the two materials.

What is groove in O-ring?

Designing the parts of an application where o-rings will be applied is broadly termed “o-ring groove design”. In order to seal properly, the o-ring has to deform in the application by being compressed and stretched in any number of ways.

Do you need to lubricate o-rings?

Lubricating an O-ring is an important part of the assembly line process as it can help protect an application from abrasion or scuffing damage. … The addition of a lubricant can extend the operating life of the O-ring by creating a barrier film over its surface.

Are silicone O rings better than rubber?

In conclusion, silicone ‘O’ rings can be applied to high-temperature applications or where damage from the elements may otherwise be an issue. … In such cases, there are several other rubber ‘O’ ring materials that offer a more well-rounded package of benefits, including thermal stability and chemical resistance.

Are O rings made of silicone?

Silicone rubber is a common material used in the construction of O-rings. Silicone rubber O-rings are resistant to both cold and hot temperatures, and they also have a longer lifespan than O-rings made of other materials. … With these properties, silicone rubber is a popular material for O-rings.

What is the most elastic O ring material?

Buna Nitrile Most popular elastomer O-ring material. Parker Hannifin uses 70 durometer hard nitrile (Buna-N) for most of its standard O-rings supplied, with 90 durometer available for tube fittings and adapters.

Article first time published on

What can I use if I don't have an o-ring?

1. Extruded and cut seal profiles. One alternative to O-rings are extruded and cut seal profiles. …
2. Rubber substitutes. O-rings are often made of rubber elastomers. …
3. Flange seals. …
4. Static radial seal. …
5. Axial face seals. …
6. Press-in-place seals. …
7. Composite sealing plates. …
8. Parker Hannifin.

Can you make a custom o-ring?

The actual process of making the O-rings is alarmingly simple: You’re essentially just gluing the ends together. Be sure to use an appropriate glue for your O-ring material! … Remember, you can always make the cord a little smaller, but increasing the size involves using a whole new length again.

What makes an O-ring a good seal?

The ring is compressed radially in its groove, with a compression of the cross-section of from 2% to 6%, according to thickness. This ensures good sealing with comparatively long life even with inadequate lubrication.

What are Danco O-rings made of?

Danco o-rings are high abrasive resistant and tempature resistant. Danco o-rings will withstand heat between a temperature range of 86°F to 248°F (-30°C to 120°C). These tough and pliable Buna-Nitrile Rubber (NBR) O-Rings will help provide long-term use for your plumbing needs.

What material are rubber seals made from?

Nitrile rubber—also known as Buna-N or NBR—is the most commonly used elastomeric material for gaskets and seals.

What is the number one cause of O-ring failures?

The most common causes of O-Ring failures include: Improper gland design, allowing for too much or too little compression, not enough for seal expansion and tolerance stack-up.

What are Red O-rings for?

red O-RiNG FKM The red gasket, thanks to its particular mix, has a high resistance to aggressive fluids. For example, if the system distributes mineral oils or hydrocarbon oils, the red O-ring will be the right choice to guarantee the maximum tightness.

What O-rings for hydraulics?

Nitrile O-rings, which have a temperature range between -54 and 149 degrees Celsius, are suitable for use with water, petroleum oils and some hydraulic fluids.

Is WD-40 good for rubber seals?

WD-40 can be used on just about everything. It is safe for metal, rubber, wood and plastic. WD-40 can be applied to painted metal surfaces without harming the paint. Polycarbonate and clear polystyrene plastic are among the few surfaces on which to avoid using a petroleum-based product like WD-40.

What happens if you don't Lube an O ring?

Contributor. I agree, you should keep o-rings lubricated. If they dry out, they become brittle and more difficult to get to seal.

How deep should an O-ring groove be?

Available Cross Sections for Encapsulated O-Rings & Groove Design DataInchMMGroove Depth.063±.0041.60±0.10.046.070±.0041.78±0.10.049.079±.0042.00±0.10.057

How much should an O-ring stick out?

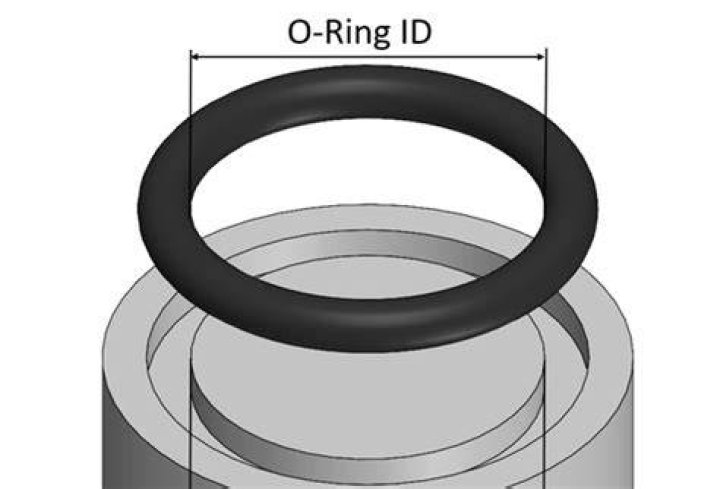

To provide an effective seal, the O-ring’s inside diameter (I.D.) must be smaller than the piston groove diameter, so that the O-ring is slightly stretched, fitting snugly in the groove. This stretch should be between 1%-5% with 2% as the ideal in most applications. A stretch greater than 5% is not recommended.

How much compression should an O-ring have?

Compression should not exceed 3% of the O-ring diameter. Stretch for a smaller O-ring should not exceed 5%.

What is gland fill?

Gland fill percentage is defined as the percentage of the volume of the seal groove that the seal occupies. This percentage is represented by the following formula: It is imperative not to overfill the gland. An excessive seal volume in a groove could cause damage to the seal and/or the sealing surfaces.

How do you calculate O-ring stretch?

Find your o-ring’s squeeze amount in inches by subtracting the gland depth from cross-sectional diameter with a calculator. For example, if your o-ring’s cross-sectional diameter is 1.25 inches and its gland depth is 1.20 inches, subtract 1.20 from 1.25 to determine that the o-ring is able to squeeze out a total of .

What is a gland O-ring?

Dynamic Reciprocating O-Ring Gland Design In reciprocating sealing applications there is a back and forth or reciprocating motion along the shaft axis between the inner and outer parts of the gland. O-rings are often referred to as piston and rod seals when used in these types of applications.

What is the difference between silicone and fluorosilicone?

Fluorosilicone is a variation of silicone rubber that maintains excellent high temperature stability and mechanical properties, while offering greater resistance to fuel, oil and other chemicals. These added benefits also come with a cost—fluorosilicone is typically five times the cost of silicone.

What is the difference between silicone and Viton?

Silicones are very stable at low and high temperatures. … Viton provides excellent resistance to compression set at high temperatures which accounts for its ability to maintain sealing force and remain tough and elastic even after long exposure to 392 degree F.

What is the highest temperature O ring?

Silicone or VMP O-rings offer temperature resistance of up to 230°C and some variants of this material can handle up to 300°C. These are commonly used where there is high exposure to UV, ozone and weathering although they are not suitable for use in hot water, chemical or dynamic applications.

What is EPDM O ring?

EPDM o-rings, or ethylene propylene o-rings, are a family of synthetic elastomers with lower cost steam and chemical resistance, particularly for applications involving solvents, acids and other mild chemicals.

How much pressure can an O ring hold?

Most o-rings are designed to operate at pressures up to 1,500 psi. At higher pressures, the material must have enough strength to resist extruding into the clearance gap. The chart shows the recommended combined limits of clearance, gap, material hardness and system pressure differential.
