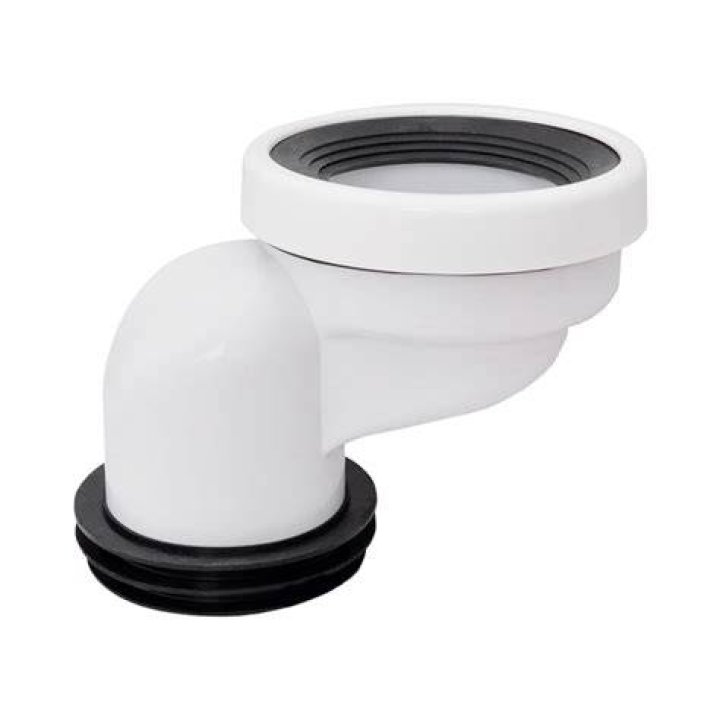

Unlike a standard flange, which is centered on the waste pipe, an offset flange is off-center—that lets you shift the location of the toilet by a couple of inches (left, right, forward or back).

How is toilet offset measured?

Measure from the wall behind the toilet to the center of one of the closet bolts (which hold the toilet down). If the toilet has four closet bolts, measure to the center of one of the rear ones. Then measure from the center of the mounting holes to the back of the new toilet you’re considering.

How do I know if my toilet is a 10 or 12 rough?

If the old toilet is still there, measure from the center of the capped bolts (on the bottom) to the wall (not the baseboard). There should be 24 inches of clearance from the wall facing the bowl and 15 inches on each side as a guideline. If your measurements are between 11.5 and 12.5 inches, it is a 12-inch rough-in.

How do you install an offset toilet flange in concrete?

1. Cut off the Old Flange and Obstructions. After you remove the toilet, you will probably find an existing toilet flange. …
2. Scrape off Old Wax Ring. …
3. Pick the Correct New Toilet Flange. …
4. Place T-Bolts in New Toilet Flange. …
5. Position Toilet Flange. …
6. Drill Holes Into Concrete. …
7. Screw Toilet Flange Onto Concrete.

What is code for toilet clearance?

Most codes require at least 15 inches (measured from the center of the toilet) from any side wall or obstruction and not closer than 30 inches center to center to any other sanitary fixture. (The NKBA actually recommends 32 inches.) There should be at least 24 inches of clear space in front of a toilet or bidet.

How far can you move a toilet with an offset flange?

For the waste water line, an offset toilet flange will allow you to move the toilet a couple of inches in any direction without having to cut a new hole in the floor or reconstruct the waste water pipe.

How much does an offset toilet flange offset?

The typical offset is 12-inches for most residential toilets. As a result, the toilet had 4-inches behind the tank.

What does 12 rough in mean for toilet?

The toilet rough-in refers to the distance from the finished wall to the center of the toilet’s floor drain or waste outlet. Most toilets have a rough-in of 12 inches, although it’s not uncommon for older homes to have an unusual size such as 10″ or 14″. … Rear-outlet toilets are configured a bit differently.

Is it possible to move a toilet a few inches?

Yes, you can actually move a toilet. Even moving a toilet by a few inches without having to make a new hole in the floor is possible. You can use an offset toilet flange to move the toilet by a couple of inches on any side. This will allow you to use the same wastewater line and in turn help to save you a lot of money.

How should a toilet flange sit?

5 Answers. The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too.

Article first time published on

Can a toilet flange be too high?

When your toilet flange is too high, your toilet may leak water and rock back and forth when used. Both the leaking and the rocking can warp or break the floor. A leaking flange can also rot the subfloor and lead to the accumulation of mildew and mold.

Should toilet flange be flush with floor?

For those that don’t already know, the proper toilet flange height is when it’s flush with the top of the finished floor. … Third, you can take off the flange as well as the toilet and trim down the waste pipe that comes up through your bathroom floor. This opening of this pipe should be level and flush with the floor.

Can a toilet be more than 12 inches from the wall?

It won’t affect how the toilet itself operates. However, the extra inches will cause the tank to be further away from the shutoff valve on the wall, so a longer connector may be needed to reach effectively.

Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet?

The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.

Why would I want an elongated toilet bowl?

Elongated bowls are also considered more ‘hygienic’ in that the larger surface area of the bowl makes is easier for men and children to use with less mess. The longer bowl size is also a requirement for ADA use, and the longer/wider bowl is generally easier to use for those with mobility issues.

Why is the toilet always next to the shower?

Toilets tend to be next to bathtubs because both of them tend to be in a small room that is kept rather private from the rest of the house and because both of them need to have fairly substantial plumbing in order to operate correctly.

What is the width of a toilet space?

When designing the area your toilet will sit, you must provide a floor space that is at least 30 inches wide and 60 inches long.

How much clearance do you need for a toilet Canada?

Toilets should have at least 15 inches clearance to side obstructions such as walls, tubs and showers. Measurement is from the center of the toilet. Toilets and sinks should have at least 21 inches (more in some jurisdictions) clearance in front.

What is a compact toilet?

Essentially, a compact toilet simply takes up less space. This is done by giving it a smaller water tank or seat or opting for a round bowl instead of an elongated one. … There are compact toilets that sit on the floor like a standard toilet, and then there are those that are mounted to the wall.

How far from the main stack can a toilet be?

If the waste line is 4 inches in diameter, the toilet can be as far as 10 feet from the stack. Maintaining these critical distances ensures the stack can handle the new toilet.

Is it expensive to relocate a toilet?

The cost to move a toilet or sinks can be $2,500-$3,500 per fixture. Plumbing can be a significant cost factor in a remodel when a bathroom floor plan is altered. The toilet is the most expensive to move. Connecting the toilet to the existing sewer line can be a bit tricky for your plumber.

How difficult is it to relocate a toilet?

Moving a toilet is not so much about moving the actual fixture—in fact, installing a toilet is a simple job that takes less than an hour—as it is about moving the drainage and the water supply plumbing to the new location. Once all of the plumbing is in place, installing the toilet is a relatively easy task.

How far is toilet flange from wall?

The Distance To Set The Toilet Flange From The Back Wall. You’ll want to set the center of the water closet flange 12 inches from the finished back wall. Don’t measure from the base molding!

Can you move a toilet to where a shower was?

Can you put a toilet where a shower was? The simple answer is yes, you can put a toilet where a shower was, but the move doesn’t come without its issues. This isn’t a simple DIY job. You are going to have to remove at least one wall and, hopefully, only a small portion of the floor.

What is a toilet stack?

Q: What is a stack in plumbing? A: A “stack” is described as the vertical section of a plumbing drainage system of soil, waste or vent piping rising through one or more stories of a building. The stack is the largest vertical pipe into which all the horizontal pipes either drain or vent.

Can you move plumbing on a concrete slab?

Many plumbing service providers may choose to reroute existing pipes that are located in a slab. Rerouting them, outside along walls or through walls or ceilings. Some regions may not permit repiping through a concrete slab foundation unless an engineer is engaged.

What is comfort height toilet?

Traditional toilets are 15 inches high. Comfort height toilets (or “right height” toilets) have higher seats than traditional toilets, usually between 17 inches and 19 inches. Comfort height toilets are becoming a popular option for many households.

Do all toilets fit the same?

For a standard toilet, the rough-in measurement should be between 11 inches and 13 inches. … If the rough-in measurement is not between 11 inches and 13 inches, a standard toilet will not fit the space, and you will need to look for a toilet designed for that specific rough-in distance.

What are plumbing rough ins?

Rough-in is the stage of a construction project when the various mechanical, electrical, and plumbing lines are brought in. … This is when lines are laid out, but final connections are not made until other stages of the project are completed.

Does toilet flange go inside or outside pipe?

Install a toilet flange on the outside. This can be done with a hammer and chisel. If the flange is cast iron with a rubber gasket, you should be able to remove the cast iron with a hammer and chisel, remove the rubber gasket with a sharp knife, then replace the gasket and the flange.

Is it better to put wax ring on toilet or flange?

Installing a flange extender or using an extra-thick wax ring will work much better in the long run. Place the wax ring on the closet flange, not on the toilet.
