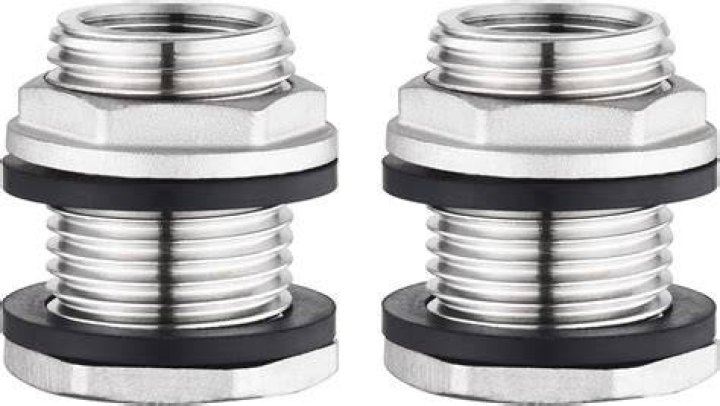

A bulkhead is a fitting designed to allow the drainage of a tank or reservoir through a hole. It creates a seal to avoid leakage and allows you to plumb the water from that tank to wherever you need it to go.

How do you plug in a bulkhead?

If the bulkhead is still in place, you can get a PVC plug to screw into the hole. If it is just a hole in the glass, either buy a bulkhead/plug or use a small piece of plexiglass and silicone it down. Plexiglass will be easy to pry up later if neccessary, while glass would break.

What is a pipe bulkhead?

Bulkhead fittings are specially designed fittings meant to allow free flow of liquids in tank, drum drainage and other plumbing connections. These fittings are also used as distribution outlets in a piping system. … When used with unions, bulkhead fittings facilitate the removal of pumps and accessories.

How do you connect a tank connector?

To install the Speedfit Tank Connector, unscrew the nut and push the body of the fitting through the tank hole with the washer on the inside of the tank. Hand tighten the nut onto the body. Push the pipe into the connector. Note: Hard tightening the nut onto the body is all that is required.

How do you seal bulkhead fittings?

fitting, the bulkhead fittings seal by drilling a single hole into the sidewall of the tank. The installer places a ring gasket onto the bulkhead fitting and it goes from the inside of the tank to the outside through the hole. A compression nut then threads onto the bulkhead fitting, is tightened up and is sealed.

How tight should a bulkhead fitting be?

We suggest hand tight; then a quarter turn to snug up the retaining nut. Over-tightening the bulkhead could cause damage to either the bulkhead or your tank. Once the bulkhead is installed, and any other plumbing is completed, we recommend doing a leak test.

What is a bulkhead in electrical?

A bulkhead is simply a connector that is installed through the face plate of a GracePort while the cable has one end fixed to the face plate and the other end is typically a 10′ cable that goes inside the cabinet.

How does a Uniseal work?

A uniseal or a uni seal is a rubber seal that is used to run pipes through tank walls, water filters, and storage devices. … When the pipe is squeezed in through the outside of a uniseal, its inside walls contract to create a watertight compression.

How do you measure bulkhead fittings?

You need to measure the OD of the PVC pipe going into the bulkhead, and take the bulkhead off and measure the hole in the glass. Once you measure the pipe OD, you need to reference a pipe chart to determine the nominal pipe size. For example, 1″ pipe has a 1.315″ diameter measurement, 1.5″ pipe is 1.9″ OD, and so on.

What does a tank connector do?

A tank connector or tank coupler is a fitting which connects a pipe to a cistern, allowing water to be drawn from the cistern, and in some circumstances, allowing water to enter it. Tank connectors are typically found on cold water storage cisterns and feed and expansion cisterns.

Article first time published on

What is a brass fitting?

Brass pipe fittings are typically used for carrying water, chemicals, flammable gases, slurries, and other plumbing substances. Pipe fittings made of brass come in a wide range of shapes and thread sizes to connect, adapt, or control any liquid or gas in pipes.

What is a slip bulkhead fitting?

Bulkheads are used to attach plumbing to aquariums and sumps to allow water to flow through them. … Slip fittings will require a solvent to bond the bulkhead to the plumbing permanently.

Why does my bulkhead leak?

Bulkhead leaks can come from rusted doors, improperly sealed joints and cracks in the concrete foundation surrounding the bulkhead. … Look for holes in the doors, cracks in the surrounding foundation or leaks in the joints where the bulkhead meets the concrete foundation.

What is Bullhead tee?

Bull head pipe tees are those type of pipe tees where the “branch pipe” connection is of a larger diameter than the straight through “run” connections. … In bull head tee, the flow moves into the Tee via the “branch” pipe and the outlet is split between the two “run” connections.

How does a bulkhead fitting work?

A bulkhead fitting allows piping connections to be made to a tank. A hole is cut in the tank into which the fitting body is inserted. A locknut threads onto the body to hold it in place. The locknut puts pressure on the gasket(s) that allows it to make a liquid tight seal.

How do I fix a leaking bulkhead in my aquarium?

Replace the bulkhead, gasket, or tank as necessary The main piece that usually causes leaks is the gasket. Check to make sure that the gasket is still rubber and not cracked or otherwise broken. If the gasket has seen better days it is best to replace the gasket.

What is a reefer bulkhead?

The term bulkhead in a single temp operation typically refers to the air-return bulkhead on the front wall behind the refrigeration unit. But in a multi-temp operation, the term bulkhead refers to the insulated divider between zones. And there’s a whole book of options you can use.

Can you silicone a bulkhead?

You could use silicone but what I would recommend is getting a gasket sheet and cutting it to fit the entire size of the outer box. Drill two holes in it just big enough to fit the bulkheads through and install it between the tank and the outer box.

What is a bulkhead wall?

A bulkhead is a retaining wall, such as a bulkhead within a ship or a watershed retaining wall. … Coastal bulkheads are most often referred to as seawalls, bulkheading, or riprap revetments. These manmade structures are constructed along shorelines with the purpose of controlling beach erosion.

What is a feedthrough connector?

Bulkhead Feedthrough Connectors eliminate permanent fixing of cable harnesses through panels or bulkheads. They eliminate the need for cables to be passed through holes, which can lead to chafing, while providing greater flexibility, mechanical integrity, and ease of access for serviceability.

What is an inline connector?

In-line connectors—This is a pair of male and female connectors that break the cable into two physical cables but maintain signal continuity between them. The connector assembly must have an assembly-level coordinate system on either side representing an entry point and an exit point.

What is a bulkhead harness?

With most manufacturers the ECU to engine wiring harness is all one harness called the engine harness. … The Subaru engine harness plugs into the bulkhead harness which runs to the body side of the car in the engine bay that works into the cabin and connects to the ECU.

What size bulkhead do I need?

Bulkhead SizeRecommended Hole Sizes3/4 inch1 1/2 inches35 to 40 mm3/4 inch thick wall1 3/4 inches45 mm1 inch1 3/4 inches45 mm1 1/4 inch2.0 inches50 mm

What are the 3 types of bulkhead?

The three basic types of bulkheads found on most ships, are: i. watertight, ii. non-watertight and iii. oiltight or tank bulkheads.

How do you measure ceiling bulkhead?

Measure the length of where the bulkhead will be installed. If it is in a corridor, for example, it will be the distance from one side wall to the other. This measurement will give you the length of the 2-inch-by-4-inch board that will be nailed across the ceiling, which is referred to as the top plate.

How long do Uniseals last?

Compared to a bulky bulkhead connector you don’t seem to get very much for the money. However a lot of time and money went into the development of Alcryn Uniseals and they are guaranteed free of manufacturing defects for 25 years. If it can last for that length of time they actually work out a whole lot cheaper.

How much pressure will a Uniseal hold?

Feel like rubber, but they are made of MPR, rated to 40 psi and warranted for 25 years. They are immune to cold, will not harden and hold pressure and vacuum.
