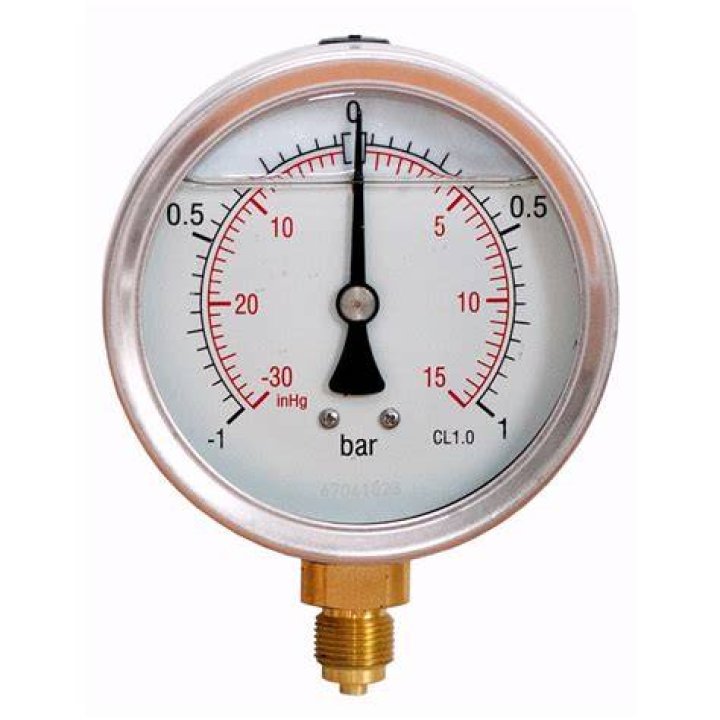

An aircraft instrument used to measure the negative pressure or suction in an aircraft vacuum system, usually by an aneroid or bourdon tube.

What is gauge and vacuum pressure?

Gauge pressure is the pressure relative to the atmospheric pressure. Pressures below atmospheric pressure are called vacuum pressures. The atmospheric pressure is the pressure that an area experiences due to the force exerted by the atmosphere.

How does an aircraft suction gauge work?

The Suction Gauge is fitted between the Outlet and Inlet ports to give a differential pressure measured in Inches of Mercury. The Outlet sides of the Two Gyro’s are connected to a vacuum regulator which is used to regulate the amount of airflow measured on the suction gauge. … this can be regulated with the regulator.

What is a vacuum gauge called?

Vacuum Gauge Units: ​A unit of pressure used to measure vacuum on an absolute scale. Also called a “micron”.

What is normal vacuum pressure?

Normal manifold vacuum at idle for an engine in good condition is about 18 to 22 in. -Hg.

What is full vacuum?

Full vacuum pressure (and, indeed, all vacuum pressures) more-or-less refers to the absence of anything; anything, in this case, being any type of matter or substance (including molecules of oxygen and other gases). … Firstly full vacuum in an industrial hose is pulling negative pressure or sucking in.

What does gauge pressure mean?

Gauge pressure, also called overpressure, is the pressure of a system above atmospheric pressure. Gauge pressure is zero-referenced against ambient air (or atmospheric) pressure, so gauge pressure readings include the pressure from the weight of the atmosphere.

What psig means?

PSIG -PSI GaugeGauge pressure is measured relative to ambient atmospheric pressure. A vessel completely void of any air molecules (at sea level) would be roughly -14.7 PSIG, and ambient air pressure is always measured as 0 PSIG, regardless of whatever current barometric pressure is.

Why do you need a vacuum gauge?

You can drive by vacuum for the most in economy, and also get to see when your boost transitions in (in relation to throttle opening and load), which can be helpful for tuning purposes. A vacuum gauge can also be an indicator of possible poor running conditions such as loose valve guides, leaky valves, etc.

How is a vacuum measured?

Vacuum is primarily measured by its absolute pressure. At room temperature and normal atmospheric pressure, one cubic foot (0.03 cubic m) of air contains approximately 7×1023 molecules moving in random directions and at speeds of around 1,000 miles per hour.

Article first time published on

What is rigidity in space?

Rigidity in space refers to the principle that a gyroscope remains in a fixed position in the plane in which it is spinning. An example of rigidity in space is that of a bicycle wheel. As the bicycle wheels increase speed, they become more and more stable in their plane of rotation.

What happens if pitot tube is blocked?

A blocked pitot tube will cause the airspeed indicator to register an increase in airspeed when the aircraft climbs, even though actual airspeed is constant. (As long as the drain hole is also blocked, as the air pressure would otherwise leak out to the atmosphere.)

What is perfect vacuum?

A perfect vacuum, by definition, is a space where all matter has been removed. … Vacuum pressures that come close to the “almost no matter” point are difficult and expensive to create. Industrial and laboratory applications require varying degrees of vacuum that are less than perfect vacuum.

Does vacuum increase with RPM?

Starting with the engine at idle, slowly increase engine speed to 3,000 rpm. Engine vacuum should be equal to or higher than vacuum at curb idle. If vacuum decreases at higher rpm, an excessive amount of back pressure is probably present due to a restriction in the exhaust system.

What is the lowest vacuum possible?

Today, the lowest achieved vacuum level (on Earth) is 10-13 Torr and scientists continue to explore the field of vacuum technology and vacuum science, and make innovative discoveries.

Why do we use gauge pressure?

Gauge pressure is typically used in processes where pressure cannot dip below atmospheric pressure, such as when measuring and controlling tire pressure.

What are the three types of pressure?

Pressure is classified into three types, they are: Absolute pressure. Gauge pressure. Differential pressure.

Where is the gauge pressure?

Gauge pressure is the pressure measured relative to the ambient atmospheric pressure. Gauge pressure can be measured using a diaphragm sensor, where one side of the diaphragm is exposed to the pressure media that is to be measured, while the other side is exposed to the ambient atmospheric pressure.

What does Hg mean in vacuum?

In the U.S., the common standard to measure rough vacuum is inches of mercury (“Hg), which can be measured in two different ways. One method is as “Hg gauge (“HgV), where the scale starts at 0″ Hg (atmospheric pressure) and goes up to 29.92” Hg, which is perfect vacuum.

What is the maximum vacuum?

Because the maximum theoretical vacuum at sea level is 29.92 in. -Hg, actual pump capabilities are based on and compared to this theoretical value. Depending on pump design, the vacuum limit ranges from 28 to 29.5 in. -Hg or about 93% or 98% of the maximum theoretical value.

What is the formula of vacuum?

Vacuum is defined as air pressure below atmospheric pressure. The vacuum level is the difference in pressure between atmospheric pressure and pressure in the evacuated system: 0% vacuum = 760 torr = 14.7 psia = 29.92 inc mercury abs = 101.4 kPa abs.

What is normal vacuum at idle?

Normal manifold vacuum on an engine running at idle speed is around 18 to 20 inches. If you have an engine at idle and your vacuum gauge reads very low, or no vacuum, you are probably connected to ported vacuum.

What is low vacuum?

Low vacuum, also called rough vacuum or coarse vacuum, is vacuum that can be achieved or measured with rudimentary equipment such as a vacuum cleaner and a liquid column manometer.

How do I convert psig to PSI?

This is atmospheric pressure, measured in pounds per square inch. Subtract this answer from your pressure. For example, if you are converting a pressure of 50 psi, then 50 – 14.696 = 35.3. This is the pressure measured in psig.

What's the difference between PSI and psig?

PSI: This term is short for “pound-force per square inch,” typically referring to gas or liquid. … PSIG: This is the term used for PSI in relation to atmospheric pressure. PSIG is also known as Gauge Pressure. The ambient pressure at sea level is about 14.7 PSIA, but ambient PSIG is always 0.

Is ATM a pressure?

Atmospheric pressure, also known as barometric pressure (after the barometer), is the pressure within the atmosphere of Earth. The standard atmosphere (symbol: atm) is a unit of pressure defined as 101,325 Pa (1,013.25 hPa; 1,013.25 mbar), which is equivalent to 760 mm Hg, 29.9212 inches Hg, or 14.696 psi.

What is 30 inches of vacuum?

30″Hg is regarded as the maximum vacuum level available at sea level, and because the oceans are the same height across the planet, this is a good datum point for reference. This number is actually rounded up from 29.92″Hg.

What is diaphragm pressure gauge?

A diaphragm pressure gauge, also known as a membrane pressure gauge, is a device that utilizes the deflection of a flexible thin membrane called the ‘diaphragm’ to measure the pressure of the fluid in a system.

What is gyroscope principle?

Gyroscope Working Principle The working principle of gyroscope is based on gravity and is explained as the product of angular momentum which is experienced by the torque on a disc to produce a gyroscopic precession in the spinning wheel.

What is gyroscope precession?

Precession describes a change in the direction of the axis of a rotating object, so in this case a change in the spin axis of the gyroscope.

What does a gyroscope do?

Micro-Electro-Mechanical System (MEMS) gyroscopes are motion sensors that detect and measure the angular motion of an object. They measure the rate of rotation of an object around a particular axis: 1-axis, 2-axis, and 3-axis.
