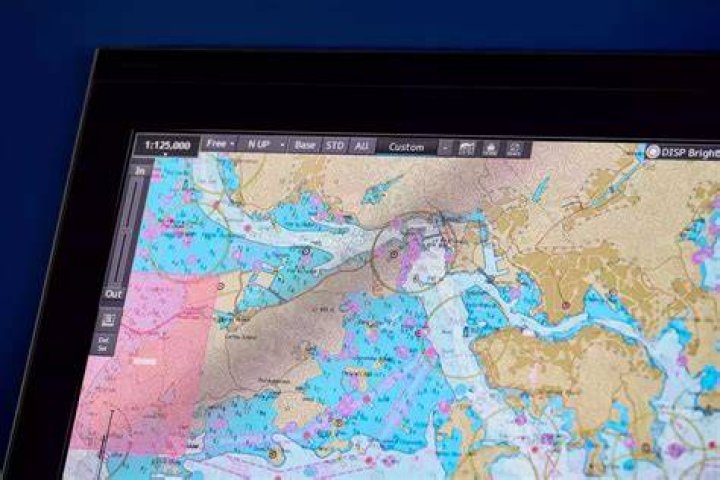

S-57 is the data format used for the transfer of digital hydrographic data between national hydrographic offices and for ​its distribution to manufacturers, mariners and other data users.

What is s63 in ECDIS?

S-63 is an International Hydrographic Organization (IHO) standard for encrypting, securing and compressing electronic navigational chart (ENC) data. … The standard also defines the systems to develop permit files that are delivered to end-users of ENC data enabling them to decrypt the data and use it for navigation.

What is IHO s52?

What is S-52? S-52 provides specifications and guidance regarding the issuing and updating of Electronic Navigational Charts (ENC), and their display in ECDIS. This IHO Publication was developed in conjunction with the IMO Performance Standards for Electronic Chart Display and Information System (ECDIS).

What is s 64 in ECDIS?

Introduction. The IHO Publication S-64 comprises an Instruction Manual and numerous data sets. … Encrypted data sets conforming to the S-63 ENC standard, have been included so that ECDIS data loading and management operations can be tested for conformance with IEC 61174.

What is s58?

S-58 specifies the minimum checks that producers of ENC validation tools should include in their validation software. The checks have been compiled from checks provided by a number of Hydrographic Offices and software companies.

What is scale minimum on ECDIS?

Each object in an ENC is given a scale minimum (SCAMIN) value. This determines the display scale below which the object must no longer be displayed by an ECDIS. When the chart is zoomed out to more than 1:499999 (Scale minimum of the nature of the seabed in this case), the concerned object(s) disappears from View.

What are s-63 charts?

What are S-63 Charts? S-63 charts are encrypted charts in the S-57 file format that respect all the standards set by the International Hydrographic Organization (IHO). “S-63” Refers to the encryption standard under which the charts are protected.

What is IHO on ECDIS?

(IHO) had revised its ECDIS standards with an implementation date of 1 September 2017, whereby IHO Presentation Library edition 3.4 in use on existing ECDIS was required to be upgraded to the IHO Presentation Library edition 4.0 by 31 August2017.

What is s 61 IHO?

S-61 defines the minimum requirements for a raster navigational chart (RNC) to be used in the Raster Chart Display System (RCDS) Mode of Operation, as described in the IMO Performance Standards for ECDIS.

What is Scamin in ECDIS?

The SCAMIN value of an object determines the display scale below which the object is no longer visible on an Electronic Chart Display and Information System (ECDIS). The purpose of SCAMIN is to reduce the amount of clutter displayed to the ECDIS user.

Article first time published on

What is Presentation Library 4.0 ECDIS?

ECDIS manufacturers refer to these IHO ECDIS Standards when developing their software, specifically the latest Presentation Library (4.0) within S-52. This contains instructions for the ‘drawing engine’ within the ECDIS on how to display symbols, colours and line styles on the screen.

What IEC 61174?

IEC 61174:2015 specifies the performance requirements, methods of testing and required test results of equipment conforming to performance standards not inferior to those adopted by the IMO in resolution MSC. 232(82). This standard is based upon the performance standards of IMO resolution MSC.

What is ECDIS three color scheme?

ECDIS allows the mariner to change the color palette that is used to display an ENC. Three different color tables have been designed to provide the maximum clarity and contrast between features on the display under three different lighting conditions on the bridge, namely Day, Dusk and Night.

What is the system S63 ENC user permit?

S-63 User Permit A 28 character alphanumeric code created by your system manufacturer and provided to you when you purchase your navigation system. You must use this code when ordering your ENC service. Your S-63 User Permit is used to create cell permit files (PERMIT. TXT, ENC.

What is a chart scale?

Chart scales are expressed as ratios (1:100,000 for example), so the unit of measure does not matter. On a chart whose scale is 1:100,000, one inch on paper represents 100,000 inches in the real world. … When comparing one scale to another, the “larger” scale chart is the one with the smaller number following the colon.

What are the 5 ECDIS mandatory alarms?

The five mandatory alarms (as per IMO ECDIS Performance standards) are: crossing safety contour, deviation from route, positioning system failure, approach to critical point and different geodetic datum.

What is shallow contour?

Shallow Contour: Indicates the depth below a vessel could run aground and it is equal to vessel’s maximum static draft. … It should be estimated twice or four times the draught of vessel (depending on the depth of water available)

What is the main aim of IMO Resolution MSC 232 82 )?

MSC. 232(82) sets out the scope of ECDIS in the following terms: “The primary function of the ECDIS is to contribute to safe navigation.”

What is the full form of IHO?

Organisation hydrographique internationaleAbbreviationIHOFounded21 June 1921LocationPrincipality of MonacoMembershipList of Member States

What is s57 chart?

The S-57 digital chart is a vector format based on the S-57 object model. This model defines hydrographic information as a combination of descriptive and spatial characteristics. Within the model, these sets of characteristics are defined in terms of objects separated into a feature and a spatial part.

What is the Ecdis Chart 1?

ECDIS Chart 1 is a legend of the entire set of symbols that may be used within an ENC, and is installed on all type-approved ECDIS systems. Positions obtained from Global Navigation Satellite Systems, such as GPS, are normally referred to WGS84 Datum.

What is raster and vector chart?

In its most basic form, raster images are made up of a number of pixels, all different colours. At the appropriate density or scale these pixels make up an image. Vector files are made up of paths made up by mathematical formulas.

What is ENC compilation scale?

ENC Compilation Scale The viewing scale of a paper chart is determined and fixed by the cartographer at the chart compilation stage, so symbols are typically larger than the extent of the real-world feature they represent and do not change.

What is s52 in ECDIS?

S-52 is a standard used by ECDIS manufacturers that determines how ENC data is displayed on an ECDIS screen through symbols, line styles, colours and other visual cues. This means that what the mariner sees on the screen is displayed in the same way across all approved makes and models of ECDIS.

What is T&P Notices to Mariners?

EXPLANATION OF TEMPORARY AND PRELIMINARY NOTICES Certain Notices to Mariners appearing in the monthly editions have a (T) or (P) appended to the regular number. These letters indicate that the information contained in the notice is of a temporary or preliminary nature.

What is date dependent view in Ecdis?

A means for the mariner to insert a date or date range within the ECDIS to display date dependent features. Will allow the mariner the ability to plan and check routes, viewing the conditions they will encounter on a given date or time period in the future.

How do I update Ecdis?

1. Under the Chart Menu, select Manual Updates. …
2. Select “New” and next select the type of object that is to be added, e.g.: a buoy and select Accept New Object.

Which Solas regulation defines the nautical chart?

SOLAS Regulation 27 – Nautical Charts and Nautical Publications.

What is the full form of IEC standard?

The International Electrotechnical Commission (IEC) headquartered in Geneva, Switzerland, is the organization that prepares and publishes international Standards for all electrical, electronic and related technologies.

What IEC 60945?

IEC 60945 (Maritime Navigation and Radio Communication Equipment and Systems – General Requirements – Methods of Testing and Required Test Results) is an international standard which specifies minimum performance requirements, methods of testing, and required test results for maritime navigation and radio …

What is meant by safety contour in ECDIS?

The safety contour is the most important parameter of all the safety settings for the display of unsafe water areas, detecting isolated dangers and triggering anti-grounding alarms. The safety contour is basically an outline which marks the division between safe and unsafe waters.
