Iron Pipe Size (IPS or I.P.S.) pipe sizing system based on the inside diameter (ID) of pipe. It was widely used from the early 19th century to the mid 20th century and is still in use by some industries, including major PVC pipe manufacturers, as well as for some legacy drawings and equipment.

What does IPS stand for in pipe?

Copper Tube Sizes: How They Differ. December 3, 2019 Viega. If you trace the history of pipe dimensions, iron pipe size (IPS) is the first to pop up on the industry timeline. But with the rise of copper tubing over the years, another industry standard has emerged: copper tube sizes (CTS).

What class is schedule 40 pipe?

Standard (STD), Extra Strong (XS) and Double Extra Strong (XXS). For PVC pipe, STD is schedule 40, XS is considered schedule 80 and XXS is a bit more undefined but generally considered schedule 120. Anything above schedule 80, however, is considered Double Extra Strong.

Can I use poly pipe for sprinkler system?

Poly is short for high-density polyethylene, or HDPE. This pipe is also used in irrigation systems, and other piping & conduit applications. Poly has the benefit of being more flexible while still maintaining a high level of strength sufficient for most residential irrigation system.

What is the difference between IPS and pip pipe?

Both are industry standards. IPS (Iron Pipe Size) is a standard that matches Schedule 40 (plumbing) iron pipe or stronger Schedule 80 iron pipe and is larger than PIP (Plastic Irrigation Pipe), a standard that is most commonly used today in agriculture.

What is IPS and NPS?

When IPS was introduced, pipes were cast in halves and welded together. The sizing of IPS refers to the inside diameter of the pipe and is roughly the same as today’s Nominal Pipe Size (NPS). However, the measurement of NPS is not actually the measured size of the inside diameter of the pipe.

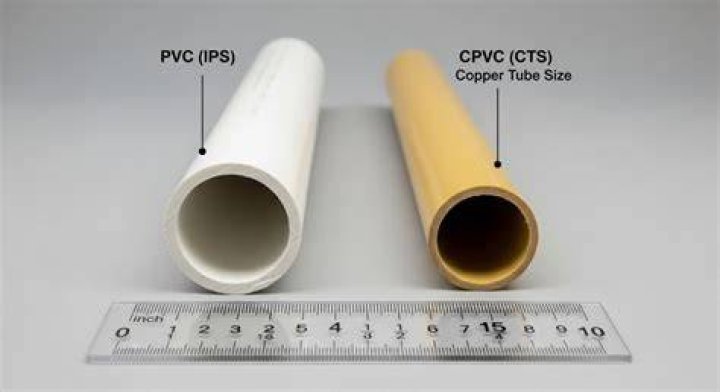

Is PVC a CTS or IPS?

At this point, you’ll most often come across rigid piping in Nominal (rigid copper piping falls under this), IPS (PVC, galvanized and stainless steel all fall under this) and CTS (Copper Tubing Size – soft copper tubing and some styles of CPVC fall under this).

What is CPVC plumbing?

CPVC (chlorinated poly (vinyl chloride) is a strong and rigid thermoplastic material that is used for hot and cold potable water applications in residential construction. Because of its makeup, CPVC is immune to damage from highly chlorinated domestic water and has a higher temperature tolerance than PVC.

What is CTS and IPS?

CTS stands for Copper Tubing Size while IPS stands for Iron Pipe Size. IPS is larger in diameter compared with CTS (1” CTS versus 1” IPS).

Is polyethylene better than PVC?

Plastic Properties Both polyethylene and PVC are waterproof, but PVC is more so. Additionally, PVC is much more fire-resistant than polyethylene, because the chlorine atoms it releases during a fire inhibit the process of combustion.

Article first time published on

How long will poly pipe last underground?

Conservatively expected to last 50-100 years by the Plastic Pipe Institute.

Is Poly pipe PVC?

PVC Pipes. Poly–vinyl chloride (PVC) is a durable material, with a potential service life of 100 years. PVC pipes used in a wide variety of applications, as pressure or drainage pipe.

Which is better schedule 40 or 80?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

What is Schedule 40 and Schedule 80 pipe?

Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.

What is SCH in pipe?

Pipe Schedule (SCH) is a standard that measures the nominal wall thickness of a pipe, given by the ANSI / ASME B36. 10M standard for Stainless Steel Pipe dimensions, and API 5L standard for seamless and welded steel pipes.

What is CPVC vs PVC?

What are the differences between CPVC and PVC? The main difference between CPVC and PVC is the range of temperatures each is capable of withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

What PVC pipe is thinner than Schedule 40?

Class 200 pipe, the most common class pipe used in irrigation, is rated for 200 pounds per square inch pressure (psi) and has a wall thickness of . 063” for a 1” pipe. Notice that is a lot thinner than schedule 40.

What is class PVC pipe?

Class number for PVC pipe denotes its pressure rating; examples are Class 315, Class 200, Class 160, Class 125, etc. This “pressure class” distinction tells you that the pipe is designed to withstand normal pressures of 315 psi, 200 psi, 160 psi, 125 psi, etc.

What is PVC DWV pipe?

DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. … Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV). Drain, waste, and vent applications use gravity to create the flow of water and waste through the pipe line.

Is IPS same as NPT?

National Pipe Tapered (NPT) and Iron Pipe Straight (IPS) are two commonly used thread standards in plumbing. … NPT and IPS nominal sizes are always the same.

What is NSF pipe?

NSF stands for National Sanitation Foundation. If a fitting or pipe is NSF rated it just means it has passed some standard or test procedure and is certified for use in a residential or commercial plumbing project. The problem is there are many different NSF standards and they have different applications.

What is NB in pipe?

Nominal bore is actually the approximate internal measurement across the diameter of the mouth of a pipe – NOT necessarily the expected diameter. … In the inch system, nominal bore is abbreviated as NB; in metric systems, it is “diameter nominal” (DN), or Nominal Pipe Size (NPS) in North America.

What is DN in pipe size?

DN stands for diametre nominal, which denotes the size of a pipe (specifically, its inside diameter) in millimeters (mm). NPS, or nominal pipe size, is merely the non-metric equivalent in which the diameter is measured in inches (in.).

What is CTS plumbing?

C.T.S.: Copper Tube Size. Describes the female end connection of a valve or fitting where copper tubing is inserted and joined by means of capillary action (soldering or sweating) or compression.

What is the OD of pipe?

OD and Nominal Pipe Size Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different.

Is PEX an IPS?

For example, PEX pipe may be manufactured to IPS–ID (iron pipe size, inside diameter controlled) sizes with varying thickness to meet pressure requirements, while PEX tube may be manufactured to CTS-OD (copper tubing size, outside diameter controlled) sizes, commonly with a standard thickness of SDR-9 (standard …

What is CTS pipe size?

CTS – Copper Tubing Sizes used in PlumbingNominal sizeOutside diameter OD1​1⁄41 3⁄834.9251​1⁄21 5⁄841.27522 1⁄853.975

Is CPVC an IPS?

CPVC. CPVC tubing comes in nominal sizes ranging from 1/2 to 2 in. copper tube size (CTS), and pipe sizes ranging from 1/2 to 24 in. (Sch 40/80) iron pipe size (IPS).

Which is better copper or CPVC?

Energy efficiency: CPVC is more energy efficient than copper due to its improved thermal insulation properties, which also help to reduce condensation. Its insulating characteristics can signify long-term savings for building owners, keeping water hot for a longer period of time than metal tubing.

Which pipe is better PPR or CPVC?

1. Physical Properties. With 60% greater tensile strength and nearly twice the flexural strength, CPVC is a stronger, more durable piping material than PP R. Due to its strength, CPVC can withstand more pressure, which means same flow rate with smaller pipes.

Is HDPE pipe the same as poly pipe?

High-density polyethylene, known as HDPE plastic is a denser version of polyethylene typically used to make water and drain pipes because of its rigidness and crystalline structure. … The main difference between HDPE and polyethylene or PE is that HDPE has PE as its base.
