MSG-3 is a task-oriented methodology to derive scheduled maintenance requirements. It provides a standardized format for analysis and determination of scheduled maintenance tasks for Aircraft Systems/Powerplant, Structures and Zonal.

What is ATA msg3?

The ATA MSG-3 publication outlines a decision-logic process for determining initial scheduled maintenance requirements for new fixed-wing aircraft and/or power plants. This document presents a means for developing maintenance tasks and intervals acceptable to regulatory authorities, operators and manufacturers.

What is MSG aircraft maintenance?

MSG stands for Maintenance Steering Group (3 is the 3rd version of the process and has been around since 1980). It provides a process which is used for developing scheduled maintenance tasks and intervals, which will be acceptable to the regulatory authorities, the operators and the manufacturers.

What is msg1?

The MSG-1 process used decision logic to develop scheduled maintenance. MSG-2 was developed and used for developing scheduled maintenance for 1970’s, MSG-2 was process orientated and for first time introduced ‘condition monitored maintenance’ concept.

What is msg3 in LTE?

What is msg3? Message transmitted on UL-SCH containing a C-RNTI MAC CE or CCCH SDU, submitted from upper layer and associated with the UE Contention Resolution Identity, as part of a random access procedure.

What are the parts of an airframe?

airframe, basic structure of an airplane or spacecraft excluding its power plant and instrumentation; its principal components thus include the wings, fuselage, tail assembly, and landing gear.

What are the levels of MSG-3 inspections?

• Lubrication-Servicing (LU-SV) …
• Operational-Visual Check (OP-VC) …
• Inspection-Functional Check. …
• Specific Inspection Types.
• General Visual Inspection (GVI) …
• Detailed Inspection (DET) …
• Special Detailed Inspection (SDI) …
• A Stand-alone General Visual Inspection (GVI)

What is condition monitoring in aviation?

Definition. An Aircraft Condition Monitoring System (ACMS) is a predictive maintenance tool consisting of a high capacity flight data acquisition unit and the associated sensors that sample, monitor, and record, information and flight parameters from significant aircraft systems and components.

What is structurally significant item?

“Structurally Significant Item (SSI) is defined as a structural detail, element or assembly which is judged significant because of the reduction in aircraft residual strength or loss of structural function which are consequences of its failure.”

What are task descriptions of the MSG-3 can be assigned categories?

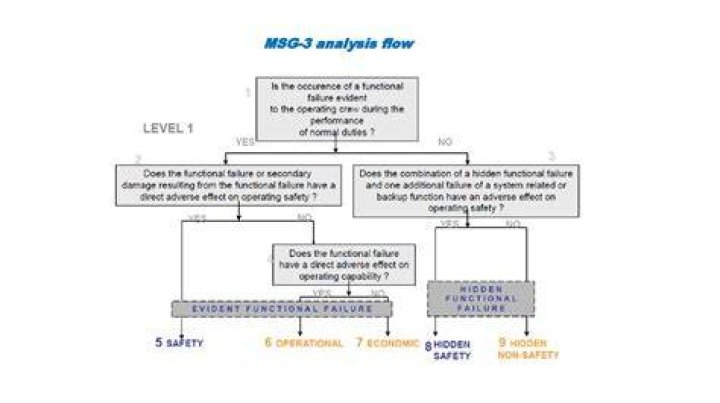

The MSG-3 guidelines provide logic designed to assign each functional failure effect to one of five categories: Evident Safety, Evident Operational, Evident Economic, Hidden Safety, Hidden Non-Operational (or Hidden Economic).

Article first time published on

What are the 3 MSG in aviation?

MSG-3 (Maintenance Steering Group) ‘Operator/Manufacturer Scheduled Maintenance Development‘ is a document developed by the Airlines For America (A4A) (formerly the Air Transport Association or ATA).

What year Boeing started the modern approach to maintenance program?

The handbook “Maintenance Evaluation and Program Development,” also referred to as “MSG-1,” was developed in 1968 for the 747 by the Air Transport Association (ATA) Maintenance Steering Group (MSG), a group of airframe manufacturers, airlines, U.S. Federal Aviation Administration (FAA) representatives, and suppliers.

What is a maintenance significant item?

Definition. An item whose failure or malfunction could have one or more of the following effects or characteristics: affect safety on the ground or in flight. be undetectable during operations. have significant operational economic impact.

What is CBRA and CFRA?

In CBRA, the UE randomly selects an RA preamble from a pool of preambles shared with other UEs in the cell. … In CFRA, the UE uses a dedicated preamble provided by the network specifically to this UE via RRC signaling or PDCCH order.

What is Msg3 in 5G?

Step 3: Scheduled UL Transmission (Msg3) The UE sends uplink scheduling information over the PUSCH. The signaling messages and information sent by the UE varies across different RA scenarios and some of the example is listed here.

What is rapid LTE?

This is used by the E-UTRA MAC layer and relates to the 6bit access preamble identifier which was initially used by a UE accessing the eNB on the PRACH. Effectively it forms part of the contention resolution procedure.

What is zonal inspection?

Definition. A general visual inspection of an area of an aircraft in order to make a broad assessment of whether it has normal, airworthy status.

Is airframe a movie?

Based upon the Michael Crichton novel of the same name, the film opens with a barely averted mid-air disaster involving a new passenger jet.

What do ailerons do?

The ailerons are used to bank the aircraft; to cause one wing tip to move up and the other wing tip to move down. The banking creates an unbalanced side force component of the large wing lift force which causes the aircraft’s flight path to curve.

What is airframe fitter?

Aircraft fitters generally work on the frame of the aircraft. In manufacturing, this includes building parts such as wings and fuselage structures from scratch. Maintenance involves replacing old or damaged structural parts and can include work on spars, beams, flooring, wings, engine nacelles and doors.

What is SSI in aircraft?

a. A Structural Significant Item (SSI) is any detail, element or assembly, which contributes significantly to carrying flight, ground, pressure or control loads, and whose failure could affect the structural integrity necessary for the safety of the aircraft.

What are three types of condition monitoring?

• Vibration analysis and diagnostics. The frequency of vibration in rotating parts can indicate how well that component is operating. …
• Lubricant analysis. …
• Acoustic emission. …
• Infrared thermology.

Why do we need condition monitoring?

Condition monitoring is an efficient, non-intrusive process with the potential to save thousands of pounds in secondary damage, lost production and unnecessary maintenance. Making it part of your routine maintenance is critical as it allows you to get to know the equipment better and allows for long-term productivity.

What is example of condition monitoring?

Monitoring things like oil sampling and analysis, acoustic emission analysis, vibration analysis and infrared thermography are all condition monitoring-based techniques to give you an inside look at a machine’s current condition.

What is maintenance Steering Group 3?

Maintenance Steering Group-3 (MSG-3) is a method for developing preventive maintenance programs in the aerospace industry. The process is maintained by A4A (Airlines For America formerly known as ATA). … A decision tree is then applied to decide the maintenance strategy for each SSI.

How many subsidiaries does Boeing have?

Boeing operates four separate business segments: Commercial Airplanes; Defense, Space & Security; Global Services; and Boeing Capital. The company posted a net loss of $11.9 billion on revenue of $58.2 billion in fiscal year (FY) 2020, which ended Dec. 31, 2020.

Can we fly the aircraft without any inspection being done in an aircraft?

A jet can’t fly for unscheduled inspection if it has a component that has not met the safety standards. While each flight has to be approved individually, sometimes the technical team can allow a ferry flight under specific conditions.

How much money does an airplane mechanic make?

Most importantly, the annual salary for aircraft mechanics ranges from $35,000 to $110,000. Also, hourly rates range from $20 to $50 per hour. For example, GE Aviation offers $31 per hour to start. As a result, the average annual median salary for aircraft mechanics is $73,050.

What is significant item?

Significant Item means any non-cash and non-recurring item of income or expense of such size, nature or incidence that is relevant to the user’s understanding of the performance of the entity and is disclosed as a “Significant Item” in the Accounts.
