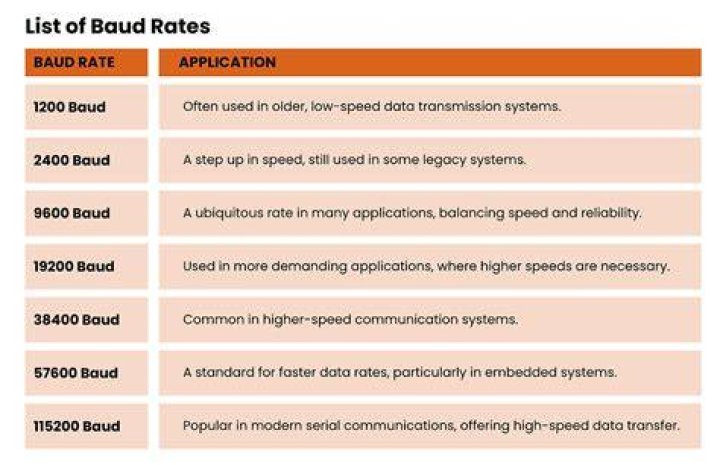

Baud Rate – GPS receivers send serial data out of a transmit pin (TX) at a specific bit rate. The most common is 9600bps for 1Hz receivers but 57600bps is becoming more common.

How do I change my GPS baud rate?

Open the configuration view by pressing F9. Navgiate to UBX -> CFG -> PRT to change the serial port baud rate and click Send button located on the bottom. Navgiate to UBX -> CFG -> RATE to change the GPS data rate by changing Measurement Period and click Send button located on the bottom.

What is NMEA baud rate?

NMEA Standard is the normally used language. This is the NMEA 0183 information sent at a 4800 baud rate. This baud rate is for autopilots, VHF radios, Sounder information, and compass input. NMEA High Speed uses the same information as the NMEA Standard, but is transferred at a much higher 38,400 baud rate.

What is the data rate of GPS?

GPS signals The navigation messages are broadcast at a rate of 50 bits per second. Utilizing this collection of data, GPS receiver calculates distance between satellites and the receiver in order to generate position data.

What frequency does GPS use?

All GPS satellites broadcast on at least two carrier frequencies: L1, at 1575.42 MHz, and L2, at 1227.6 MHz (newer satellites also broadcast on L5 at 1176 MHz).

How strong is GPS signal?

The typical power level of the GPS signal is -125 dBm.

What is PMTK?

PMTK command is MediaTek proprietary data transfer protocol for GNSS. It enables configuring the parameters of the GNSS chipset, aiding assistance position information and receive notifications from the GNSS chip.

Is GPS digital or analog?

GPS is a satellite based navigation system. It uses a digital signal at about 1.5 GHz from each satellite to send data to the receiver.

What data do GPS satellites transmit?

Signals. Each GPS satellite transmits data on two frequencies, L1 (1575.42 Mhz) and L2 (1227.60 MHz). The atomic clocks aboard the satellite produces the fundamental L-band frequency, 10.23 Mhz. The L1and L2 carrier frequencies are generated by multiplying the fundamental frequency by 154 and 120, respectively.

How do I read NMEA GPS data?

1. Find an application such as AT Command Tester that can parse data from the NMEA port.
2. Connect the GPS device over the interface that is supported by the device.
3. Display NMEA GPS data read from the NMEA port.

Article first time published on

What is RMC in GPS?

This command enables the GPRMC recommended minimum specific GPS/transit data message and determines the rate at which the information is transmitted.

What does NMEA stand for?

The National Marine Electronics Association (NMEA) was founded in 1957 to strengthen the relationships between electronic manufacturers.

What is GPS L5 frequency?

L5 is the third civilian GPS signal, designed to meet demanding requirements for safety-of-life transportation and other high-performance applications. Its name refers to the U.S. designation for the radio frequency used by the signal (1176 MHz).

Which type of modulation is used for GPS?

GPS satellites transmit radio signals using BPSK modulation.

Are GPS signals RF?

GPS uses the former while radio astronomy uses the latter. Transmitters use electrical signals at radio frequencies (RFs) to produce an RF carrier wave. The part of a transmitter that creates the RF carrier wave is called an oscillator. On transmission, the RF is modulated with the information to be relayed.

Why are 4 satellites needed for GPS?

You need four satellites because each data from one satellite put you in a sphere around the satellite. By computing the intersections you can narrow the possibilities to a single point. Three satellites intersection places you on two possible points. The last satellite give you the exact location.

How does GPS calculate speed?

The LC-8310 compact & high-sensitive GPS speedometer calculates speed by using Doppler effect of the carrier waveform from GPS satellites. The Doppler effect is the phenomena that is observed whenever the source of waves such as radio wave, light wave, or sound wave is moving with respect to an observer.

How accurate is GPS in a building?

Typically, GPS can reach 5m-10m accuracy in an open outdoor environment which is far from the accuracy of half-meter required by many industrial use cases. The accuracy in indoor space is further degraded. Indoor positioning, both tracking and navigation, is in high demand for many use cases.

What is the output of GPS?

GPS receiver module gives output in standard (National Marine Electronics Association) NMEA string format. It provides output serially on Tx pin with default 9600 Baud rate. This NMEA string output from GPS receiver contains different parameters separated by commas like longitude, latitude, altitude, time etc.

How does GPS work without Internet?

On both iOS and Android phones, any mapping app has the ability to track your location without needing an internet connection. Without getting too complicated, the GPS system inside your smartphone works in two different ways. When you have a data connection, your phone uses Assisted GPS, or A-GPS.

How does GPS consume data?

GPS by itself does not use any data, but the apps that use GPS for navigation will be using data. … While many location-based apps use up data quickly, your phone’s GPS tracking allows you to use them in offline mode, as long as you preload maps and information while connected to Wi-Fi.

What is GPS PPT?

A GPS receiver can tell its own position by using the position data of itself, and compares that data with 3 or more GPS satellites. To get the distance to each satellite, • By measuring the amount of time taken by radio signal (the GPS signal) to travel from the satellite to the receiver.

Which principle is used for GPS?

The working/operation of the Global positioning system is based on the ‘trilateration’ mathematical principle. The position is determined from the distance measurements to satellites. From the figure, the four satellites are used to determine the position of the receiver on the earth.

Does GPS use satellites?

GPS satellites carry atomic clocks that provide extremely accurate time. The time information is placed in the codes broadcast by the satellite so that a receiver can continuously determine the time the signal was broadcast. … Thus, the receiver uses four satellites to compute latitude, longitude, altitude, and time.

How do you read GPS output?

When outlining the coordinates of a location, the line of latitude is always given first followed by the line of longitude. Therefore, the coordinates of this location will be: 10°N latitude, 70°W longitude. The line of latitude is read as 41 degrees (41°), 24 minutes (24′), 12.2 seconds (12.2”) north.

What is GPS parsing?

Parsing is simply removing the chunks of data from the NMEA sentence so the microcontroller can do something useful with the data. For example, the microcontroller might need to read only the altitude of your GPS.

What are the different GPS coordinate formats?

• Degrees, minutes, and seconds (DMS): 41°24’12.2″N 2°10’26.5″E.
• Degrees and decimal minutes (DMM): 41 24.2028, 2 10.4418.
• Decimal degrees (DD): 41.40338, 2.17403.

What is NMEA RMC?

NMEA Message Format RMC, (Recommended Minimum) provides fix information, speed over ground and Magnetic Variance information.

How many devices can connect to NMEA 2000?

An NMEA 2000 network can have up to 50 physical devices connected to the network at any one time.

Is NMEA serial?

The NMEA 0183 standard uses a simple ASCII, serial communications protocol that defines how data are transmitted in a “sentence” from one “talker” to multiple “listeners” at a time.

What is L1 and L5 GPS?

Power Level. The L1 signal has a minimum signal strength of −158.5 dBW while L5 has −154.9 dBW. It means that L5 is 3.6 dB better level as compared to L1. Some other important difference parameters between L1 and L5 are summarized in Table 1.
