The GMDSS is an automated ship to shore system using satellites and digital selective calling technology. The GMDSS is mandated for ships internationally by the International Maritime Organization (IMO) Safety of Life at Sea Convention (SOLAS), 1974, as amended in 1988, and carries the force of an international treaty.

What is the basic concept of GMDSS?

What is the fundamental concept of the GMDSS? It is intended to automate and improve existing digital selective calling procedures and techniques. It is intended to provide more effective but lower cost commercial communications. … It is intended to automate and improve emergency communications in the maritime industry.

What is the 7 elements of GMDSS?

The exam consists of questions from the following categories: general information, narrow band direct printing, INMARSAT, NAVTEX, digital selective calling, and survival craft.

What are the GMDSS equipment required by Solas?

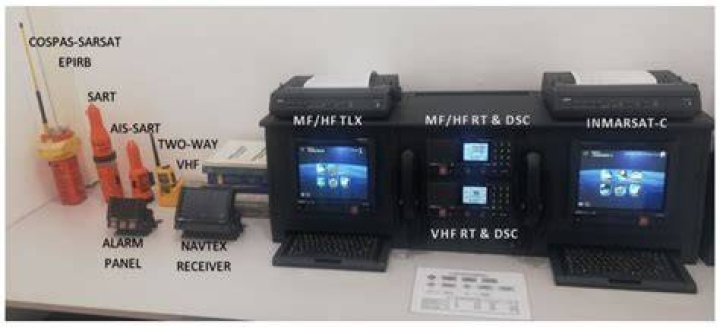

Every GMDSS ship is required to carry the following minimum equipment (as defined by SOLAS Chapter IV, regulation 7): A VHF radio installation capable of transmitting DSC on channel 70, and radiotelephony on channels 16, 13 and 6; A SART (Two on vessels over 500 GRT, one on vessels 300 – 500 GRT);

What is the GMDSS equipment on A4?

AREARANGEEQUIPMENTA4Above 70° N or SHF + MF + VHF

What are the 3 components of GMDSS?

• Emergency position-indicating radio beacon (EPIRB)
• NAVTEX.
• Satellite.
• High frequency.
• Search and rescue locating device.
• Digital selective calling.
• Power supply requirements.
• GMDSS radio equipment required for U.S. coastal voyages.

What are the steps in testing GMDSS equipment?

1. Press the [2/DSC] key at the DSC standby screen and then push the [ENTER] knob to open the CALL TYPE menu.
2. Rotate the [ENTER] knob to choose TEST CALL and then push the [ENTER] knob.

What is the GMDSS functional requirements?

, each using a different radio communication. Reception of shore – to ship distress alerts. Transmission and reception of Ship to ship distress alert.

What are the four 4 sea areas of GMDSS?

SEA AREAS. The GMDSS operates over 4 sea areas of coverage from shore to ship. The 4 sea areas are classified as: A1, A2, A3 and A4.

What is the Gmdss equipment on sea area A3?

Sea Area A3: Here a complete VHF radio and either a MF/HF radio or INMARSAT station is required. This area covers 70-degrees North Latitude and 70-degrees South Latitude.

Article first time published on

What is Epirb and SART?

An Emergency Position Indicating Radio Beacon or EPIRB is used to alert search and rescue services in the event of an emergency. … A Search and Rescue Transponder (SART) is an electronic device that automatically reacts to the emission of a radar. This enhances the visibility on a radar screen.

What is Sea area A1 A2 A3?

sea area A1: within range of shore-based VHF DSC coast station (40 nautical miles) sea area A2: within range of shore-based MF DSC coast station (40 to 150 nautical miles) sea area A3: within the coverage of an Inmarsat geostationary satellite (approximately 70°N to 70°S, excluding sea areas A1 and A2)

What is the meaning of MMSI?

MMSI Overview. Maritime Mobile Service Identities (MMSIs) are nine digit numbers used by maritime digital selective calling (DSC), automatic identification systems (AIS) and certain other equipment to uniquely identify a ship or a coast radio station.

What is DSC in Gmdss?

Digital selective calling or DSC is a standard for transmitting pre-defined digital messages via the medium-frequency (MF), high-frequency (HF) and very-high-frequency (VHF) maritime radio systems. It is a core part of the Global Maritime Distress Safety System (GMDSS).

What is the use of VHF DSC?

Summarizing, the VHF-DSC radio enables vessels to quickly transmit a DISTRESS alert and message, digitally alerting other vessels that an URGENCY or SAFETY message is about to be sent, and establish contact with other vessels and coast stations discretely without hav- ing to use Channel 16.

Is AIS part of Gmdss?

Although AIS is not part of the GMDSS, it can be considered part of the GMDSS due to the advent of the AIS-SART (AIS Search and Rescue Transmitter), which can be used in lieu of a search and rescue radar transponder (SART), since 01 January 2010.

How do you test MF and HF?

Printer test checks the connection between MF/HF equipment and printer. Go to Menu#2 -> READOUT & SET UP -> press 4 -> press ENT. This displays the “SELF TEST” screen. Select the “printer test” and press ENT.

How do you test MMSI?

Instead, you may run a test call to the nationwide Coast Guard MMSI number, 003669999. Enter this number into your radio’s calling memory and select the “Test Call” option from the radio’s list of individual DSC calls, then press the “call” or “enter” key.

How do I use Nbdp?

To receive the distress message on NBDP, switch to NBDP frequency corresponding to the frequency on which DSC alert was received. Press the function key F3 and choose “Manual Reception”. Select FEC mode and press enter key. When a call is detected, Lock will get highlighted.

What is the Gmdss equipment that can be used in A2?

GMDSS Sea AreaGeographical sattelite and radio communication coverageAutomatic and portable radio equipmentA2Outside Sea Area A1 Within continuous MF (Medium Frequency) DSC coverage from a CRS with follow on MF RT (about 100 NM from the coast)406 MHz EPIRB SART VHF handheld radio

What is the purpose of MF HF transceiver?

Long Range Certificate Course MF/HF RT radio is often known as SSB radio. It is a transmitting-receiving system often referred to as a Transceiver (Tx/Rx), which allows the operator to either transmit or receive information by voice. MF/HF radios use SSB modulation for voice communication.

What is LRIT equipment?

The Long-Range Identification and Tracking (LRIT) system provides for the global identification and tracking of ships to enhance security of shipping and for the purposes of safety and marine environment protection. … the shipborne LRIT information transmitting equipment; the Communication Service Provider(s) (CPS);

What is are the equipment required to be carried in Sea Area A2?

Sea Area A2 GMDSS-regulated ships travelling this area must carry a DSC-equipped MF radiotelephone in addition to equipment required for Sea Area A1. The United States has no Sea Area A2 service. The US Coast Guard 2 MHz infrastructure is closed effective 1 August 2013.

What is the Solas chapter and Reg of vessel carriage Gmdss equipment?

Ship under GMDSS must be fitted with proper approved equipment for maritime distress operation and as described in SOLAS chapter V like radar etc. Transmission and receiving of maritime safety information.

What SART means?

SART stands for Sexual Assault Response Team and is the term used to describe an evidentiary medical exam.

What is SART for?

A Search and Rescue Transponder (SART) is an electronic device that automatically reacts to the emission of a radar. This enhances the visibilty on a radar screen. SART transponders are used to ease the search of a ship in distress or a liferaft. All GMDSS vessels up to 500 ton must carry at least one SART.

How do you test SART?

1. Switch SART to test mode.
2. Hold SART in view of the radar antenna.
3. Check that visual indicator light operates.
4. Check that audible beeper operates.
5. Observe radar display and see if there are concentric circles on the PPI.
6. Check the battery expiry date.

How is Epirb activated?

• Locate the sliding cover / button on the EPIRB.
• Slide a protective cover to one side and.
• Click the switch or push the button in order to activate the EPIRB. Once activated the EPIRB will flash and a strobe is activated.

What is IMO and MMSI?

The IMO number consists of the three letters “IMO” followed by a seven-digit number and is never reassigned to another ship. The MMSI number (Maritime Mobile Service Identity) is a unique nine-digit number for identifying a ship. … The last six digits are used for the unique identification of the vessel.

What is AIS boat?

Operating in the VHF maritime band, the AIS (Automatic Identification System) system enables the wireless exchange of navigation status between vessels and shore-side traffic monitoring centers.

Do I need MMSI?

The MMSI # is required for ALL AIS transponders to transmit your identity over the air. If you are a US documented or registered vessel and are required to have MMSI # then you are also required to have an FCC Ship Station License & Restricted Radio Operators Permit.
