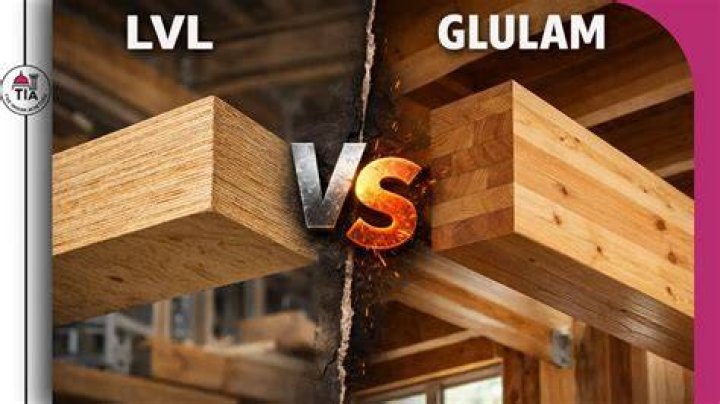

A glulam beam looks like a stack of 2 x 4s (or larger lumber) glued together on their broadsides. This is in contrast to other engineered members, such as LVL (laminated veneer lumber) and Microlam beams, which look like very thick plywood, with very thin layers of wood glued together to form a thicker mass.

What is the strongest engineered beam?

Power Beam® – 3000Fb – 2.1E – 300F Power Beam® is the strongest engineered wood product (EWP) on the market with design values of 3000Fb – 2.1E – 300Fv.

What are the disadvantages of LVL?

Although its dimensional stability is better than solid wood, the product may result in some defect, such as warping, if it is not properly stored in the warehouse. Also, LVL requires high capital investment to have relatively low production cost.

How much stronger is a glulam beam?

Glulam is one tenth the weight of steel and one sixth the weight of concrete; the embodied energy to produce it is one sixth of that for a comparable strength of steel. Glulam can be manufactured to a variety of shapes, so it offers architects artistic freedom without sacrificing structural requirements.

What are the disadvantages of glulam?

Quality. The second disadvantage of glulam timber is its quality. Glulam Timber is made by joining several timber pieces. If defective timber is used in the middle of the timber block during production, this malfunctioning timber can cause the entire timber block to deteriorate.

Why is glulam so expensive?

Glulam provides us with a longer and larger piece of building material that is composed of smaller pieces of lumber. … This generally makes Glulam more stable than traditional timber. Glulam can also be more expensive than traditional lumber.

Are glulam as strong as solid timbers?

Glulam has been shown to be as strong as steel, with greater strength and stability than similarly sized standard dimensional lumber. … As compared to solid sawn lumber posts, Glulam is a stress-rated engineered wood product composed of layers of bonded wood laminations running the length of the post.

How big of a LVL beam do I need?

Design a beam width based on the fact that the typical width of an LVL beam is 1 3/4 inches. The width can be increased by laminating in multiples of 1 3/4 inches. Beam width should be 1/4 to 1/3 beam depth.

Are level beams strong?

Due to its strength, an LVL beam can span up to 60 feet and is much stronger than traditional lumber.

How much does a 20 foot glulam beam cost?

Glulam beams cost $6 to $34 per linear foot on average.

Article first time published on

Is glulam more expensive than timber?

Glulam is more expensive than non-laminated timber. This is because there are a large number of stages involved in the manufacturing process. Our glulam beam and glulam structure price calculator can give you a quick budget price.

Is LVL stronger than dimensional lumber?

Laminated veneer lumber (LVL) studs can be two times stronger in compression and tension than standard framing lumber of the same dimension.

Is LVL waterproof?

LVL is made from rotary-peeled veneers that are bonded together under heat and pressure into large panels that are cut into range of widths. Phenol-formaldehyde resins provide waterproof bonds.

Where in Australia is the only LVL producer?

Wesbeam is Australia’s only LVL manufacturer and distributor – with a world class factory in Perth and next day delivery from Wesbeam distribution centres. Wespine Industries sawmill has operated at Dardanup since the early 1980’s.

What are the main uses of LVL?

When should I use LVL? Laminated Veneer Lumber is ideal for a variety of uses inside the home, especially when it comes to maintaining a structure. This includes everything from rafters, headers, lintels, purlins, roof trusses, and formwork – in addition to window frames and steps.

What are the advantages of glulam?

Flexible – Glulam can be made into virtually any shape. Stabile – Glulam does not twist or bend. Fire Resistant – Glulam withstands fire better than many other construction materials. Value for Money – The total cost of a glulam construction is often lower than it would be with other construction materials.

What are the benefits of glulam?

• Locally available and environmentally sustainable material. …
• Flexibility of shape and size. …
• Appearance. …
• Excellent strength to weight ratio. …
• Durability. …
• Consistency of Performance. …
• Fire.

How is glulam manufactured?

The glulam manufacturing process consists of four phases: (1) drying and grading the lumber; (2) end-jointing the lumber into longer laminations; (3) face gluing the laminations; and (4) finishing and fabrication. Figure 10.9-5 shows the glulam process.

What is LVL timber?

Laminated Veneer Lumber (LVL) is a high-strength engineered wood product used primarily for structural applications. It is comparable in strength to solid timber, concrete and steel and is manufactured by bonding together rotary peeled or sliced thin wood veneers under heat and pressure.

Is glulam considered heavy timber?

However, in consideration of engineered wood products, IBC Table 2304.11 (IBC 2015 Table 602.4) provides equivalent glulam and SCL sizes that qualify as heavy timber. For most building elements other than heavy timber, passive fire-resistive requirements are in the form of a required fire- resistance rating (FRR).

How far can you span with glulam?

In large open spaces, glulam beams can span more than 100 feet. One of the greatest advantages of glulam is that it can be manufactured in a wide range of shapes, sizes and configu- rations.

Can glulam get wet?

Guard against direct exposure of glulam members to severe conditions like high temperatures, rain, and other damaging weather conditions. Hot/dry and wet/winter climates can create high-risk environments, depending on how quickly the moisture content changes.

Do glulam beams have a top?

Unbalanced Glulam Beams To assure proper installation of unbalanced beams, the top of the beam is clearly stamped with the word “TOP.” Unbalanced beams are primarily intended for simple span applications.

Is laminated wood stronger?

Laminated wood is stronger because each thin veneer piece is glued in alternating directions. Thus making it stronger & resistant to warping.

Do LVL beams sag?

Your wood/LVL will sag much more. What you are describing is ultra typical when there is a point load above and they used LVL. I don’t know why cities keep allowing the use of LVL for anything more than 10 feet. It will look great and then year 2-3 it starts sagging… year 4-5 you get cracks and notice it…

What is the longest LVL beam?

LVL is available in lengths up to 24.4 m (80 ft), while more common lengths are 14.6 m (48 ft), 17 m (56 ft), 18.3 m (60 ft) and 20.1 m (66 ft). LVL can easily be cut to length at the jobsite.

Can you rip LVL beams?

Manufacturers rip it as standard practice when producing beams. LVL is made in billets up to 48 inches wide that are ripped to commercially available standard depths. It’s okay to rip LVL beams to a smaller depth, too, though you’ll have to recalculate the beam capacity.

How big of a beam do I need to span 20 feet?

Wood beam size for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of wood beam or lumber joist should be 2×14 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 350mm (14″) and width of beam is 50 mm or 2″.

Can you paint LVL beams?

NelsonPine LVL billets in standard thicknesses come with an industrial type finish that can have normal timber paint and stain systems satisfactorily applied to them. Enhancement of the visual appearance and coating adhesion can be achieved by relatively coarse sanding the surface prior to the first coat.

What size beam do I need to span 24 feet?

For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …

How much does a LVL beam weigh?

Weight of LVL (Laminated Veneer Lumber)↓1/4 inch14″1 inch0.07 lbs3.991-3/4″0.13 lbs6.983-1/2″0.25 lbs13.95
