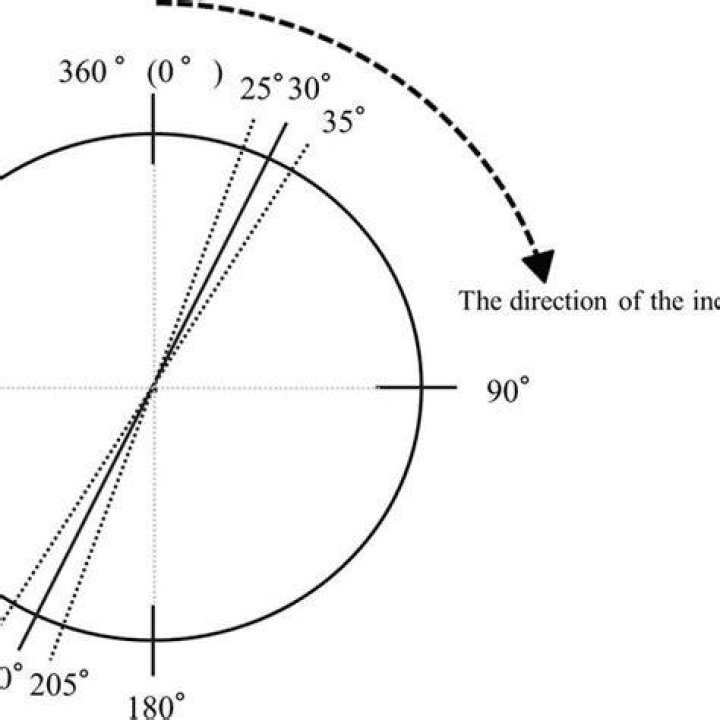

The actual gantry angle could then be defined as the angle between vertical, as indicated by a plumb bob, and the direction of the beam axis that could be indicated by the position of a BB placed in the central axis and its shadow.

What are the parts of CT gantry?

The CT imaging system includes the moveable gantry and patient table or couch. The gantry is a frame that contains the x-ray source, collimators, filters, detectors, a data acquisition system (DAS), rotational components including slip ring systems and all associated electronics.

Why should you angle the gantry when scanning CT of the brain?

To reduce the amount of radiation to the eyes, brain CT scans are often made with a tilted gantry.

What is gantry aperture?

The gantry aperture is the opening through which the table with the patient moves for the examination. Typical diameters of the gantry range from 50 to 85 cm. The gantry aperture diameters between 70 and 85 cm are useful for biopsy procedures and obese patients. … This gantry can rotate 360 degrees around its axis.

What is a gantry in radiation therapy?

gantry. A frame housing the x-ray tube, collimators, and detectors in a CT or radiation therapy machine, with a large opening into which the patient is inserted; a mechanical support for mounting a device to be moved in a circular path.

Why is it important to include cooling systems in the gantry?

Cooling mechanisms are included in the gantry. They can take different forms, such as blowers, filters, or devices that perform oil to air heat exchange. Cooling mechanisms are important because many components can be affected by temperature fluctuations.

How is a CT scan carried out?

During a CT scan, you lie in a tunnel-like machine while the inside of the machine rotates and takes a series of X-rays from different angles. These pictures are then sent to a computer, where they’re combined to create images of slices, or cross-sections, of the body.

What is patient couch?

Patient Couch also known as patient table is a platform on which the patient lies during the procedure. It is present in X-ray, CT scan, and MRI etc. … Patient table movement is done by hydraulic systems and table movements is controlled by the switches provided in the gantry or in the console.

What is the range of aperture size for a gantry?

About The Gantry The diameter of the opening or aperture varies in size, as does the gantry as a whole. The aperture range size is usually 70-90 cm. The gantry can be tilted forward or backward as needed to accommodate a variety of patients and examination protocols, usually 15-30 degrees.

What is aperture in CT scan?

A CT scanner looks like a big, square doughnut. The patient aperture (opening) is 60 cm to 70 cm (24″ to 28″) in diameter. Inside the covers of the CT scanner is a rotating frame which has an x-ray tube mounted on one side and the banana shaped detector mounted on the opposite side.

Article first time published on

What are CT detectors made of?

Individual detector elements are affixed to a circuit board. Solid state crystal detectors are made from a variety of materials, like cadmium tungstate, cesium iodide, bismuth germinate and ceramic rare earth compounds like gadolinium of yttrius.

In what year was CT introduced to the clinical setting?

introduction. The first clinical CT scan on a patient took place on 1st October 1971 at Atkinson Morley’s Hospital, in London, England.

What is CT chest without contrast?

The CT chest (non-contrast) protocol serves as an outline for the acquisition of a chest CT without the use of an intravenous contrast medium. Note: This article aims to frame a general concept of a CT protocol for the assessment of the chest.

What is the patient positioning for MRI of brain and skull?

PATIENT POSITIONING: • Patient should be supine, head first into the gantry, with the head in the head-holder whenever possible. Center the table height such that the external auditory meatus (EAM) is at the center of the gantry.

Does CT brain need contrast?

CT of the brain can be done with or without contrast, but it is often not needed. In general, it is preferred that the choice of contrast or no contrast be left up to the discretion of the imaging physician.

Is IMRT therapy safe?

IMRT is a tremendous advance in the safe and effective delivery of radiation. However, it also requires much more time and resources from cancer clinics, radiation oncologists, physicists, radiation therapists, dosimetrists, nurses and their support staff to be done correctly.

How many types of radiation treatments are there?

Types of Radiation Therapy. There are two main types of radiation therapy, external beam and internal.

Why do you need to drink water before a CT scan?

Preparing for a CT scan The water hydrates you prior to having contrast media for the CT. In the waiting area you will be asked to drink another 500ml of water which outlines the stomach and bowel clearly on the scans. The water also helps fill your bladder so that it shows on the scan.

What are the disadvantages of CT scans?

In general, a CT scan has the advantage of short study time (15 to 20 minutes) with high quality images. However, disadvantages include the need for ra- diation exposure and the use of a contrast material (dye) in most cases, which may make it inappropriate for patients with significant kidney problems.

Is one CT scan harmful?

It depends on your age, gender, and the part of your body that’s being scanned. Overall, your odds are very low — the chance of getting a fatal cancer from any one CT scan is about 1 in 2,000. Some organs are more sensitive to radiation than others. It tends to do more damage to cells that grow and divide quickly.

What is MRI gantry?

An MRI gantry remains fixed, and contains cryogenically cooled superconducting electromagnets and radio transmitters that flip protons in hydrogen atoms in the human body via proton nuclear magnetic resonance.

What is slip ring technology in CT?

Slip-ring functions to allow the transfer of electrical information and power between a rotating device and external components. They are used in helical CT and MRI scanners among other applications; in this setting, they allow image acquisition without progressive twisting of cables as the scanner rotates.

What is the unit of measure for the power capacity of the generator in CT?

The maximum amount of electricity that a generating unit, power plant, or utility can produce under specified conditions. Capacity is measured in megawatts and is also referred to as the nameplate rating.

What does the source collimator do?

In X-ray optics, gamma ray optics, and neutron optics, a collimator is a device that filters a stream of rays so that only those traveling parallel to a specified direction are allowed through. … Collimators are also used in radiation detectors in nuclear power stations to make them directionally sensitive.

What determines the center pixel value in grayscale?

Window width assigns the quantity of pixel values to the gray scale. Window level determines the center pixel value in the gray scale.

What is couch Incrementation in CT?

In multislice computed tomography, patient dose is described as the CT dose. index (CTDI). When the distance that the patient moves between slices (the couch. increment CI) equals the slice thickness ST, the CTDI equals the dose averaged over. all slices (multislice average dose MSAD).

What is the type of collimation used in CT scan?

Anti-scatter collimators (also referred to as anti-scatter septa or grid) are used in CT X-ray equipment used for medical imaging, but also non-medical X-ray applications such as cargo scanners at (air)ports.

What is XRAY couch?

A patient couch for an X-ray diagnosis comprises a base portion to be fixed to a floor of an X-ray diagnosis room and a movable portion mounted to the base portion to be movable with respect to the base portion and having a table top on which a patient lies.

How big around is a CT scan?

Computed tomography scanners do vary in their gantry aperture, with more modern scanners typically 75–85 cm in diameter 1. This information should be available from radiology staff, or alternatively a simple tape measure may be enough to prevent a wasted journey to CT.

How fast does a CT scanner spin?

Rotation speed The most recent CT scanners have a rotational speed under 300 milliseconds compared to the older models which are in the region of 400-500 milliseconds.

What's better CT or MRI?

Both MRIs and CT scans can view internal body structures. However, a CT scan is faster and can provide pictures of tissues, organs, and skeletal structure. An MRI is highly adept at capturing images that help doctors determine if there are abnormal tissues within the body. MRIs are more detailed in their images.
