PVC Schedule 40 Foam Core is lightweight, non-toxic and easy to install. It is coextruded and has a cellular core. Installation requires primer and solvent cement. PVC SCH 40 Foam Core is used in DWV Applications. It is highly durable and with no rusting, it offers years of trouble-free service.

Is foam core PVC good?

The foam core slightly alters some of the properties of the PVC foam core pipe in comparison to solid PVC pipe. The foam core pipe is less rigid, which means it lasts up to 10 years longer than solid pipe before it needs to be replaced. The core insulates sound, which can dampen unwanted noise within a building.

How do I know if my PVC is foam core?

How can I tell if the pvc installed is solid core or cellular/foam core PVC? What marking on the outside should solid core have? and What marking should the cellular/foam core have? It might state “foam” or “cellular”, but the certification number “ASTM F 891” should be printed on the pipe.

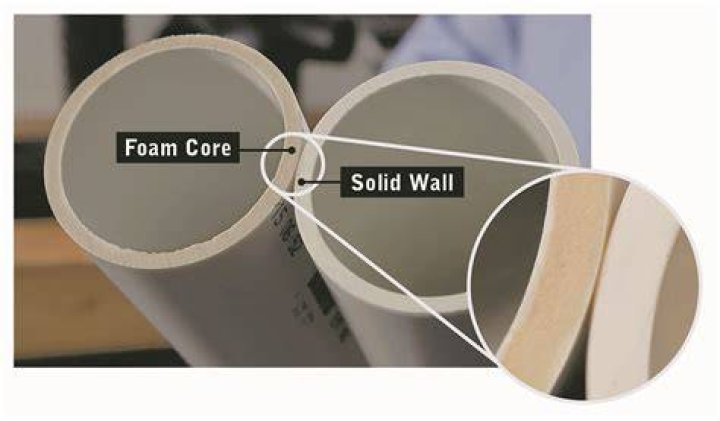

What is the difference between solid core and cell core PVC pipe?

The inside and outside walls are solid PVC, while the inner core is cellular (or foamed) PVC, a material that includes tiny bubbles of entrained air. … For pipe manufacturers, the main advantage of cellular-core PVC is lower cost, since it requires less resin to make than solid pipe.

Is foam core PVC food safe?

Yes, PVC is a food-safe material for gardens and aquaponics.

What is solid core PVC used for?

PVC or ABS plastic piping is often used on high-efficiency heating and water heating systems as vent piping for the exhaust gases, since the exhaust temperatures are relatively low. This piping is often vented out the side of the home.

Can a foam core pipe be used for pressure?

PVC Schedule 40 Foam Core Pipe is for DWV purposes only. It is for Non-Pressure systems where temperatures will not exceed 140° F.

Is all ABS pipe foam core?

You may see PVC or ABS pipe being sold as “cellular core” or “foam core.” This type of pipe is not solid. It is made with an inner PVC/ABS skin and an outer PVC/ABS skin with a foam/cellular core in between.

What is ABS foam core pipe?

ABS Foam Core Pipe are for drain, waste and vent purposes only. They are used in gravity fed waste elimination systems. They are Non-Pressure systems where temperatures will not exceed 140 degrees F. ABS Foam Core is lightweight and easy to install.

What's stronger ABS or PVC?

PVC pipe is more flexible than ABS, while ABS is a bit stronger and can resist a higher shock or impact. Additionally, PVC has an advantage in that it’s better at muffling the sound of water as it flows through the pipework.

Article first time published on

Can you use cellular core PVC for venting?

DO NOT use Cellular Core PVC/CPVC or Radel for venting exhaust. Use of these materials for exhaust may result in property damage, personal injury, or death.

Can you bury cellular core PVC?

Flexible piping systems like ABS or PVC have less structural strength than rigid metallic piping systems, which is an important consideration when designing systems buried in unstable soil. … Per the standard, cellular core pipe is not permitted to be used in this application due to its reduced pipe stiffness.

What is Schedule 40 PVC pipe?

PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections. PVC schedule 40 pipe is available in plain end or belled end that do not require coupling for installation.

How do I know if my PVC has a cellular core?

How can I tell if the pvc installed is solid core or cellular/foam core PVC? What marking on the outside should solid core have? and What marking should the cellular/foam core have? It might state “foam” or “cellular”, but the certification number “ASTM F 891” should be printed on the pipe.

Is Schedule 40 PVC safe for hydroponics?

Look for Schedule 40, NSF-61, NSF-PW markings in PVC pipes. These are safe for both hydroponics and aquaponics.

What PVC is food safe?

Regular PVC (polyvinyl chloride) is a common, strong but lightweight plastic. It is made softer and more flexible by the addition of plasticizers. If no plasticizers are added, it is known as uPVC or Rigid PVC (Food Safe PVC). uPVC or Rigid PVC does not contain any phthalates or BPA and is safe and stable.

Can you cut foam core PVC?

Product Description. Foam Core Cutter is the ONLY dedicated tool that cleanly cuts (cellular) FOAM CORE ABS and FOAM CORE PVC pipe. Fast – Make a complete cut in one single rotation. … Clean – Cut is clean and doesn’t require deburring.

What is Schedule 40 plastic pipe made of?

The Schedule 40 PVC piping system is manufactured from custom blends of PVC compounds with unique physical properties desirable for piping applications. GF’s Harvel PVC Schedule 40 piping can handle a variety of applications, temperatures and pressure requirements.

What is the difference between Schedule 30 and Schedule 40 PVC?

Schedule 30 is NOT to be used for pressurized systems, whereas Schedule 40 may be safe to about 150 PSI at 6 inches in diameter, up to about 300 PSI at 2 1/2 inches or less in diameter.

What type of PVC is used for venting?

Condensing Furnace Codes and Recommendations Despite the confusion, the safe practice would suggest the use of PVC schedule 40 pipes for the air intake vent on the furnace and CPVC for the exhaust flue vent, given its higher service temperature.

Can ABS be used for high efficiency furnace?

Like PVC, ABS pipes are used for high-efficiency furnace ventilation systems. You can distinguish an ABS pipe from PVC by its color, as ABS is black and PVC is white. Like PVC, ABS does not rust, corrode or collect condensate, which makes it a good material for direct vent furnace systems.

What is the difference between PVC DWV and Schedule 40?

DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. The only real difference is that DWV PVC is not made to handle pressurized uses like schedule 40 parts are. Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV).

Can ABS and PVC be glued together?

It is possible to join ABS to PVC, but it is only supposed to be done with a mechanical coupling, not glued. … For the most part, ABS and PVC are not supposed to be glued together. We’ll turn to the Minnesota State Plumbing Code for some background on this topic.

What are the advantages and disadvantages of ABS plastic?

PROSCONS+ Very sturdy and hard– Made out of oil, so more damaging to the environment+ Suitable for machine or car parts– Deformes when not being print on a heated surface+ Higher melting point– Hot plastic fumes when printing+ Longer lifespan– Therefore, you need ventilation

What is the OD of 2 ABS pipe?

Nominal Pipe SizeO.D.Average I.D.2″2.3752.0472-1/2″2.8752.4453″3.53.0423-1/2″43.521

What is the strongest type of PVC pipe?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. You are probably most familiar with schedule 40 PVC pipe. It’s the white pipe you see used for drainage around buildings, and it can be found in local hardware stores.

Can I use PVC for shower plumbing?

PVC can be used only for drain lines (including indoors, despite what the answer below says). If you want to use it for your tub and shower drain, you can. CPVC can be used for water supply lines, and you can use it for the connection between the shower valve and the shower spout.

Where is ABS pipe banned?

The State of California has banned the use of “regrind” or recycled plastic resin for use in ABS drain-waste-vent pipe. The new law stemmed from major problems with pipe failure of recycled-content ABS pipe made by several companies during the 1980s.

What is solid wall PVC?

Solid Wall PVC pipe provides hydraulic efficiency, corrosion and chemical resistance, and watertight joints for sanitary sewer, drainage, and underdrain applications.

What does PE pipe stand for?

About PE (Polyethylene) Polyethylene (PE) is a thermoplastic material produced from the polymerization of ethylene. PE plastic pipe is manufactured by extrusion in sizes ranging from ½” to 63″. PE is available in rolled coils of various lengths or in straight lengths up to 40 feet.

Can you use cell core ABS underground?

DRAIN-WAY® ABS Throughout Canada, ABS-DWV (drain, waste and vent) piping has been successfully used in single family homes and general wood-frame construction. … The pipe may be used both above ground and underground and is made in Schedule 40 pipe dimensions in either sold wall or cell core composition.
