Panic hardware, also known as an exit device or fire exit hardware when used on fire doors, is designed to provide fast and easy egress to allow building occupants to exit safely in an emergency.

How does panic hardware work?

Panic hardware is a door component that was designed to allow fast and unencumbered exit from a doorway. … You simply push a rod, a bar or other activator, the latch mechanism is retracted and you are able to push the door open.

Why is panic hardware used?

Panic hardware, also known as an exit device, is designed to provide building occupants fast and easy egress in an emergency. Because of its durability and ease of use, panic hardware is commonly installed in places where it isn’t required by code.

What is panic bar on door?

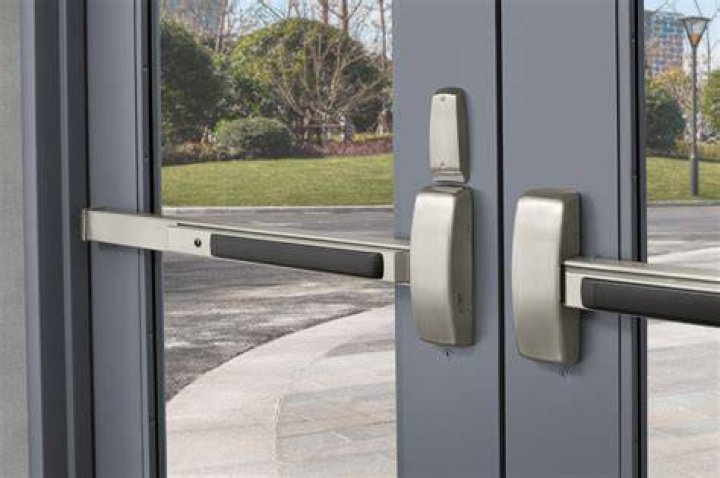

A crash bar (also known as a panic exit device, panic bar, or push bar) is a type of door opening mechanism which allows users to open a door by pushing a bar.

Where do you need panic hardware?

The required locations for panic hardware vary depending on which code has been adopted, but typically, panic hardware is required for assembly, educational/daycare, and high hazard occupancies, where the calculated occupant load is 50 people or more (International Building Code (IBC) and International Fire Code (IFC …

Can panic hardware go on any door?

Panic hardware can be used with single doors or pairs of doors. They are used in combination with free egress, delayed egress, and controlled egress or controlled access doors.

Do all exit doors require panic hardware?

Keep in mind that when an application requires panic hardware, all of the doors in the means of egress from that room or area will typically require panic hardware, including the exit access, the exit, and the exit discharge.

Do stair doors need panic hardware?

According to all editions of the IBC starting with the 2006 edition, panic hardware is required for doors serving 3 use groups: Assembly occupancies with an occupant load of 50 people or more* Educational occupancies with an occupant load of 50 people or more. High Hazard occupancies with any occupant load.

What is the difference between panic hardware and fire exit hardware?

Panic Hardware is an exit device which is tested for use on a door that is required to have panic hardware, but cannot be used on a fire door. … Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging.

Is panic hardware requirements on electrical rooms?

In the 2020 NEC update, either option – panic hardware or fire exit hardware – is allowed for personnel doors in electrical spaces. Just be sure to meet any applicable life safety or IBC requirements in your area.

Article first time published on

What is egress hardware?

Delayed egress hardware prevents a door from being opened from the egress side, usually for a period of 15 seconds. This type of device is often used to prevent theft, while maintaining life safety.

How does a panic bolt work?

The Panic Bolt Unit eliminates the risk of impeding people’s escape, either by being unnecessarily complicated or not being readily capable of being opened, as it works by a simple spring loaded bolt which is held in place by a ceramic or glass tube that can be broken in the event of an emergency.

What is exit device?

An exit device (also referred to as a panic device, panic hardware, panic bolt and crash bar) is hardware that is installed on a door that keeps it locked from the outside, while allowing people on the inside to exit without unlocking it.

How much is a panic bar?

The cost to replace a rim-type panic bar, professionally installed by a licensed locksmith, will range from $500 to $1700 depending on the desired parts.

Does a fire exit have to have a push bar?

Fire exits doors should open easily and, wherever possible, in the direction of traffic flow. If it is a security door that is usually kept locked but will be used by members of the public in an emergency situation, it will have to be fitted with a panic or push bar.

What is an assembly occupancy?

An assembly occupancy is generally defined as “an occupancy (1) used for a gathering of 50 or more persons for deliberation, worship, entertainment, eating, drinking, amusement, awaiting transportation, or similar uses; or (2) used as a special amusement building, regardless of occupant load.” Assembly occupancies …

Is panic hardware considered a latch?

Panic hardware is defined by the International Building Code (IBC) as: “A door-latching assembly incorporating a device that releases the latch upon the application of a force in the direction of egress travel.” Fire exit hardware is panic hardware that is listed for use as part of a fire door assembly.

Are panic bars required on exit doors?

It is usually only installed on doors that are required by law to have panic hardware. International Building Code IBC only requires this type of hardware on buildings: with specific high-traffic or high-hazard occupancy, such as educational or assembly facilities with more than 50 people.

Why are they called crash bars?

The names panic bar and crash bar were coined to indicate the way people when panicked in a mass evacuation due to emergency crashed into the doors in order to exit. In any building area or room where many people may be gathered, code requirements dictate that safe and easy egress must always be possible.

What does it mean to dog down a door?

The definition of dogging in door hardware is to mechanically retract a latch to allow a free swing. This is a common feature of panic hardware – the latch can be “dogged down” and the door can then freely swing.

How do you teach a dog to go down a panic bar?

The most common way to “dog down” or place the exit device in the unlocked mode is by pushing the bar, inserting and turning a “dogging key” into a hole on the interior bar of the exit device. The dogging key is commonly a hexagonal or “hex” key like the picture.

How do you use dogging keys?

In a nutshell, dogging a device holds the latchbolt retracted removing the need to turn the lever or push the panic bar to retract the latch and open the door. You essentially only have to push or pull the door for it to open when the exit hardware is “dogged”.

What is ul305?

UL 305 was developed specifically as a test method focused on the evaluation of panic hardware to be used in emergency exits. Underwriters Laboratories (UL) published the first edition of the standard in 1955 and it has been in continuous use through today’s Sixth Edition.

Does an electrical room have to have a door?

If the equipment is more than 6 feet wide or 6 feet deep, there must be a door at each end of the working space, providing entrance to and egress from the required working space. … Electrical vaults (Section 1010.31 (A) (4)) and rooms housing equipment of more than 1000 volts, nominal (Section 110.33 (A) (3))

Does an electrical room need two exits?

Two exit access doorways are required in boiler, incinerator and furnace rooms where the area is over 500 square feet (46 m2) and any fuel- fired equipment exceeds 400,000 British thermal units (Btu) (422 000 KJ) input capacity.

How many access entrances are required to working space about electrical equipment rated 1200 amperes or more and over 6 feet wide?

EXHIBIT 110.18 At least one entrance is required to provide access to the working space around electrical equipment. EXHIBIT 110.19 For equipment rated 1200 amperes or more and over 6 feet wide, one entrance not less than 24 inches wide and 61⁄2 feet high is required at each end.

How does an egress door work?

The Delayed Egress Lock is designed to delay exit through a fire egress door for a predetermined time period (usually 15 to 30 seconds). A user approaches the door, pushes on a panic bar equipped with an exit sense switch, and holds the panic bar in while the countdown timer counts down to zero from the preset time.

What is the egress side of a door?

In other words, it’s an exit. Both commercial buildings and residential homes contain codes regarding the paths of egress. An egress door is any door that is along the path of exit (the egress path). If someone needs to go through that door to exit the building, then that door is an egress door.

What is emergency egress door knob?

An emergency egress lock is an entrance lock where the deadbolt and the knob/lever latch are linked with an interconnect device. … The single action (unlock and open) function makes for a quick and easy exit from a building during an emergency.

What is a flush bolt?

Flush bolts are used to secure the inactive leaf of a pair of doors, projecting into the frame head and into a floor strike. … Manual flush bolts and surface bolts are projected and retracted manually, and automatic flush bolts are projected when the active leaf closes and depresses a trigger on the edge of the door.

What is a Redlam bolt?

The Redlam Panic Bolt is a tried and tested solution to giving access to Emergency Exit Doors which are normally not in use. The Redlam Panic Bolts are designed to release the lock on a door in the event of someone smashing the tube in the assembly.
