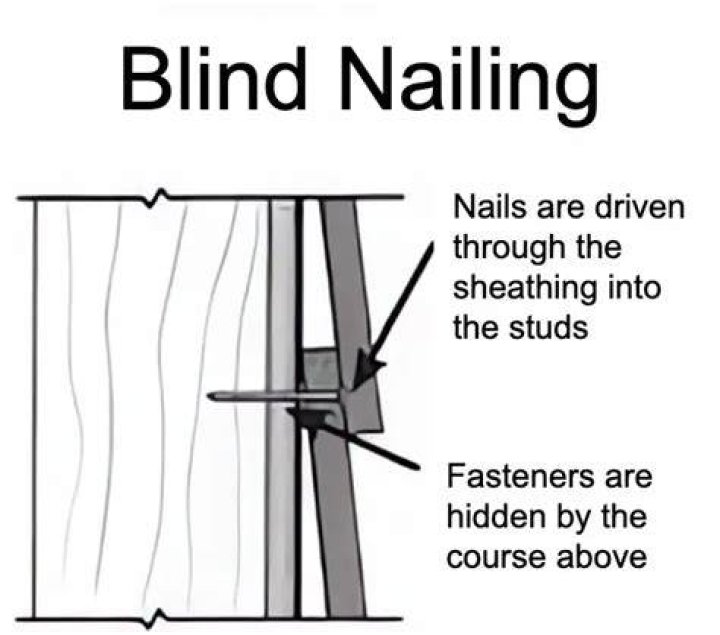

For most exterior boards – especially HardiePlank and other fiber cement materials – the best way to nail is corner to corner “blind nailing.” Blind nailing refers to nailing each board, one at a time, and then overlapping that nailed layer with the next board, so that all nails are hidden.

What is a blind nail used for?

The Blind Nail allows you to have an invisible mechanical connector. Simply insert the dual head nail into the set tool to set the nail, then tap the molding or wood into place on the other side. The Kit includes the Blind Nail Tool and Blind Nails.

What are Brad nails?

Brad nails, or brads, are made of 18-gauge steel wire. Nail gauge sizes indicate the thickness of the nail. Thinner nails have higher gauge numbers. … In addition to being thinner than standard nails, they also feature a smaller head. The slender profile of brad nails helps to prevent splitting on delicate material.

What is face nailing?

Definition of face nailing : nailing in which the nailheads are exposed to view and which is used in the fastening of facing wood to a base.

Is it OK to face nail Hardie siding?

Face nailing is applicable where dictated by building code, in high wind areas, and when fastening is to OSB or equivalent sheathing without penetrating into studs. … Fasteners shall be installed between 3/4 in. and 1 in. from the bottom edge of the board and the head must be snug, not counter sunk or overdriven.

How do you dovetail nails?

All you do is grip the upright piece in a vice or the jaws of a portable work-bench, and glue the horizontal piece on top if it – supporting it with scrap wood to hold the joint square – and then drive in the nails dovetail fashion.

Is Toenailing stronger?

Toenailing—the key to success Toenailing not only makes a strong joint but also is a great way to coax stubborn boards into position. Photos 1 – 3 walk you through the basic steps of toenailing. The key to success is starting the nail in the right spot and angling it a little steeper than 45 degrees.

How can I hide my tongue and groove nails?

Drive the nails through the shoulder of the tongues into the framing at about a 45-degree angle. The next grooved edge will hide the nail holes. A 15- or 16-gauge brad nailer with 2-in.nails is the best choice for fastening, although an 18-gauge nailer will do the job, too.

What are the three methods of nailing?

• FACE-NAILING. This is the rudimentary nailing we learned first. …
• TOE-NAILING. In contrast, toe-nailing produces a strong joint. …
• DOVETAIL NAILING. This technique is akin to toe-nailing, as it involves driving nails on a bias. …
• BLIND NAILING. Tongue-and-groove boards are blind nailed. …
• CLINCH NAILING.

What is cross nailing?

Cross Nailing in Framing It is used when installing a stud into an already framed wall. In that case, normal face nailing where the nail is pounded through the face of the floor plate into the end of the new stud can’t be done, so the nails are installed at an angle, crossing each other.

Article first time published on

What is the difference between brads and finish nails?

Most brad nails are made from a very thin 18-gauge wire. Finishing nails typically range from 16 to 10-gauges and are much more robust than brad nails. Finishing nails also come in a wider variety of lengths than most brad nails do; some can be upwards of 3” in length.

Can you hammer in finishing nails?

Avoid scratches or hammer dents by using a nail set to finish driving the nail. Use a nail set that is the same diameter as the finishing nail. Center it on top of the nail and hit it with the hammer. Continue hammering until the nail is about 1/8-inch below the surface of the wood.

Which is the best nail gun?

1. VonHaus Cordless Electric 2 in 1 Nail & Staple Gun. Best nail gun for occasional use. …
2. Milwaukee M18CN16GA-502X Angled 16G Nail Gun. Best high-end nail gun. …
3. Ryobi ONE+ 18G AirStrike Nailer. Best mid-price nail gun. …
4. Tacwise 50mm Brad Nailer. …
5. Stanley Electric Nail And Staple Gun.

Can you use a nail gun on Hardie plank?

Overall, only two types of power nailers work best for attaching hardie siding: siding and roofing nailers. But if you must use a framing nailer, to install any James Hardie product, be sure to fit it with a quality flush mount attachment so as to control the depth the fastener is driven.

Can I use a framing nailer for Hardie siding?

With some overlap in nail size, you may wonder whether framing nailers can be used for siding? The answer is, yes. Framing nail guns can be used for siding installation, if the nail being used is long enough to attach the siding firmly to your exterior wood sheathing.

What kind of nails do I use for Hardie siding?

NAIL TYPE: Fasteners must be corrosion resistant, galvanized or stainless steel. Electro-galvanized nails are acceptable for use with James Hardie Siding Products, but may exhibit premature corrosion. James Hardie recommends the use of quality, hot-dipped galvanized nails.

What is a 16d nail?

A 16d nail is one that’s 3-1/2-inches long. … Legend has it that one hundred 3-1/2-inch nails cost 16 pennies back then. And it would follow suit that one hundred 2-inch (or 6d) nails cost, well, 6 pennies. So, it’s an archaic term, but is apparently one that’s here to stay.

How far should a nail penetrate?

Rule of Thumb #2 – Use a nail that will penetrate the item you are nailing to (not through) at least 3/4″. So, to use the same example of 1/2″ sheathing you would need a nail that is 1 1/4″ long. 3/4″ + 1/2″ = 1 1/4″.

Do you nail dovetail joints?

Rather than clamping up dovetail joints on drawer boxes, you can pin the joints together with a small pin nail, which is easily hidden. When I have a lot of dovetailed drawer boxes to assemble, I use my pin nailer instead of clamps for the glue-ups.

How is a dovetail joint made?

Dovetail joints consist of an interlocking and snugly fitted series of pins and tails. All the tails are cut into one piece of wood, called here the tail piece. Typically, the completed tail piece then serves as a template for marking and cutting the pins in the pin piece.

How deep should wood nails be?

The accepted rule of thumb is the nail length should be 21/2 times the thickness of the wood you are nailing through. Thus, for 1-inch-thick material, you would use an 8-penny nail and for 2-inch-thick material, you’d use a 16-penny nail.

Can you use a brad nailer for tongue and groove?

A finish nailer or brad nailer is the easiest and most efficient tool to use when installing your new shiplap or tongue and groove. They can be purchased/rented relatively cheaply from your local hardware store, they’re lightweight, and are simple enough that a 12 year old can use them!

Can you put tongue and groove over drywall?

If you’re looking to reboot the atmosphere in a living room or bedroom by covering the existing drywall with tongue-and-groove boards, the good news is that there are no codes prohibiting it. In fact, the fire-resistance of drywall balances the propensity of wood to burn and makes the room safer than wood alone.

How do you blind nail hardwood floors?

Blind-nailing. To blind-nail use either a finish nailer or drill pilot holes at a 45-degree angle through the tongue of each board and hand-nail the planks until there is enough clearance for the pneumatic floor nailer to fit over the tongue of the hardwood floor planks.

Does tongue and groove flooring have to be nailed down?

Although tongue and groove solid hardwood flooring does fit together, it must still be nailed to a subfloor. Engineered tongue and groove planks, however, snap together to create a “floating” floor that is not physically attached to the floor below.

Do you nail into the tongue or groove?

For tongue-and-groove flooring, drive a nail at a 45-degree angle through the tongue, then conceal it by engaging the groove of the next board. Be sure to countersink the nail — drive it slightly below the surface of the wood — to prevent interference in the joint.

Where do you nail tongue and groove shiplap?

Avoid visible nail holes Install planks with the tongue up. Nail at an angle directly through the tongue and into your studs. You don’t need to nail through the face of the planks anywhere but on the bottom row and near the ceiling.
