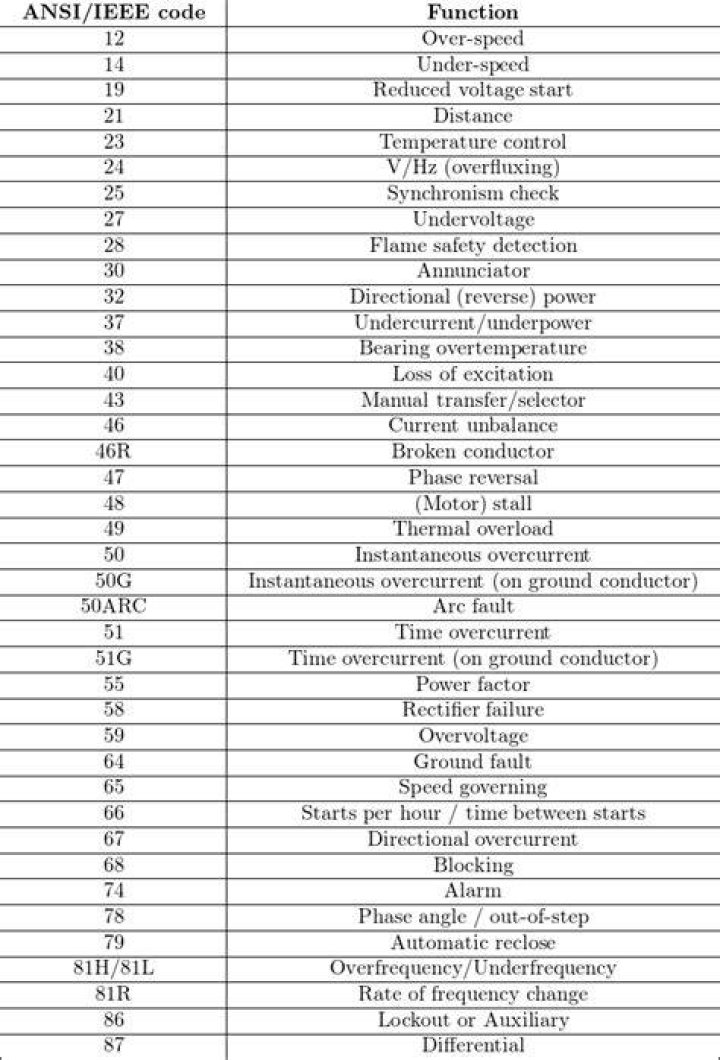

The ANSI protective functions are functions present in protective devices such as a relay. They are identified by the ANSI standard device numbers (ANSI / IEEE Standard C37. 2 Standard for Electrical Power System Device Function Numbers, Acronyms, and Contact Designations).

What is ansi69?

69 – Permissive Control Device. 70 – Rheostat. 71 – Liquid Switch, Level Switch.

What is the device function number of directional power relay?

32. Directional Power Relay. Device that functions on a desired value of power flow in a given direction, or upon reverse power resulting from arcback in the anode or cathode circuits of a power rectifier.

What is 51N protection?

Ground-Fault Protection (G or ANSI 50N-TD/51N) Presentation. Ground-fault protection provides protection against phase-to-ground fault, which is more sensitive than protection based on phase current only. It is generally used in TN-S systems but could also be used in other earthing systems.

Are ANSI standards required?

OSHA laws and government standards are always mandatory; ANSI Standards are generally voluntary. Organizations like ANSI are typically private groups made up of industry representatives, technical experts and policy makers. They get together in committees and try to reach a consensus on safety matters.

What is 51N relay?

The phase relays are designated 51 and the residual ground overcurrent relay is designated 51N (both without instantaneous function). The bracketed denotes that there are three phase overcurrent relays and three CT’s.

What is ANSI approved mean?

Becoming ANSI Accredited means that the CCIFP certification meets the highest of standards. This provides an added level of confidence in the certification and the people who hold the CCIFP designation. It also protects the integrity of ICCIFP and its legal defensibly.

What is a 47 relay?

The 47 relay is on 4.16KV MCB that feeds a line up of 4.16KV feeder breakers, that in turn provide cables underground to building transformers. The original purpose of this relay (I am told) was to protect the motors on site from phase loss, and/or, reverse phase rotation.

What is ANSI transformer?

ANSI Distribution Transformer. Multi-tap / Rectifier Transformers. The WESCOSA Pad Mounted distribution compartmental ANSI transformer is an oil filled, three phase, specifically designed for servicing such as underground distribution loads for shopping centers, schools, institutions and industrial plants.

What is the difference between 51G and 51N relay?

As for 51N and 51G, the way modern relay manuals proposes, 51G actually measures the current in neutral using a CT (residual CTs), where as 51N is where current in neutral is calculated by vector sum of the 3 phase over currents by the relay.

Article first time published on

How does over current protection work?

An overcurrent protection device protects the circuit by opening the device when the current reaches a value that will cause an excessive or dangerous temperature rise in conductors. Most overcurrent protection devices respond to both, short-circuit or ground-fault current values as well as overload conditions.

What is 50N 51N?

ANSI 50N/51N or 50G/51G – Earth fault Earth fault protection based on measured or calculated residual current values: ANSI 50N/51N: residual current calculated or measured by 3 phase current sensors. ANSI 50G/51G: residual current measured directly by a specific sensor.

What is the ANSI device number for an AC circuit breaker?

52 AC circuit breaker A device that is used to close and interrupt an AC power circuit under normal conditions or to interrupt this circuit under fault or emergency conditions.

What is the device function number of an AC circuit breaker?

52. A-C Circuit Breaker. is a device that is used to close and interrupt an a-c power circuit under normal conditions or to interrupt this circuit under fault of emergency conditions.

What is a 52 circuit breaker?

A 52 AC circuit breaker is a device that is used to close or interrupt an AC power circuit. A relay that operates when the power factor in an AC circuit is above or below a preset value.

How does ANSI work with OSHA?

OSHA will participate on selected ANSI accredited standards committees and canvass reviews in a manner consistent with the policies of the OSH Act; OSHA will provide ANSI with notices of standards development activities relating to standards proposals, hearings and final rules.

Who do ANSI standards apply to?

Members. ANSI’s members are government agencies, organizations, academic and international bodies, and individuals. In total, the Institute represents the interests of more than 270,000 companies and organizations and 30 million professionals worldwide.

What does OSHA stand for and what is their purpose?

“OSHA” Stands for the Occupational Safety and Health Administration of the United. States Department of Labor, formed by the Occupational Safety and Health Act of 1970. “CSHO” is an abbreviation for an OSHA Compliance Safety and Health Officer or. Compliance Officer.

How does ANSI apply to fire prevention?

ANSI Offers National Fire Protection Association Standards through Site License Subscriptions.

What is ref transformer?

Restricted Earth Fault (REF) means an earth fault from a restricted/localized zone of a circuit. The term “REF protection method ” means not to sense any earth faults outside this restricted zone. This type of protection is prevalent in Dyn group of transformers (Delta Primary and Star Secondary).

What is difference between standby earth fault and sensitive earth fault?

In sensitive earth fault protection, one dedicated Core Balance CT is used to detect any unbalance in 3 phases and it’s setting is so low so it’s called sensitive earth fault protection. Where in Standby Earth fault protection, CT placed in neutral only and detect zero sequence current.

What is protection transformer?

The protection of a transformer against the overloads is performed by a dedicated protection usually called thermal overload relay. This type of protection simulates the temperature of the transformer’s windings. The simulation is based on the measure of the current and on the thermal time constant of the transformer.

What is 86 lockout relay?

Introduction. Many utilities employ lockout relays (ANSI device number 86, electrically operated, hand or electrically reset) that function to shut down and hold equipment out of service on the occurrence of abnormal conditions.

What is a 21 relay?

The goal of a distance relay (ANSI/IEEE code 21) is to trip its circuit breaker(s) if a fault occurs within its programmed “reach” and to ignore both normal operating loads and faults lying outside its reach.

What is Idmt relay?

IDMT relay is inverse definite minimum time relay. It is one in which Time of operation is inversely proportional to magnitude of fault current near pickup value and becomes substantially constant slightly above the pickup value of the Relay.

How does a 51G relay work?

Unbalanced currents exceeding the primary CT rating are needed to make these relays operate reliably. The 50/51G relay is connected to a single current transformer that is installed in a power system grounding conductor, such as the Wye center connection of a power transformer or generator.

What is 87T relay?

Abstract. Power transformer differential protection 87T has been used for decades. With static or electromechanical 87T relays, external interposing current transformers are used in order to compensate for phase-angle shift and current magnitude variation between the two sides of the protected power transformer.

What is a ground fault relay?

Ground fault relays (or sensors) are used to sense low magnitude ground faults. … relay pick up setting, the control scheme signals the circuit disconnect to open. Ground fault relays can only offer protection for equipment from the effects of low magnitude ground faults.

What happens if an overcurrent protective device is oversized?

Undersize your overcurrent protective device (OCPD), and normal operations might become impossible. … Oversize your OCPD, and the whole place might burn down. It helps that, for a given circuit, conductor sizing and OCPD sizing begin with the same two steps.

What devices are going to use to prevent overcurrent?

Examples of overcurrent protection devices are many: fuses, electromechanical circuit breakers, and solid state power switches.

What are overload protection devices?

An overcurrent protection device (OCPD) is a piece of equipment used in electrical systems that are at risk of experiencing overcurrent due to overloads, short circuits, or ground faults. … The most common of these protection devices are fuses, circuit breakers, and overcurrent relays.
