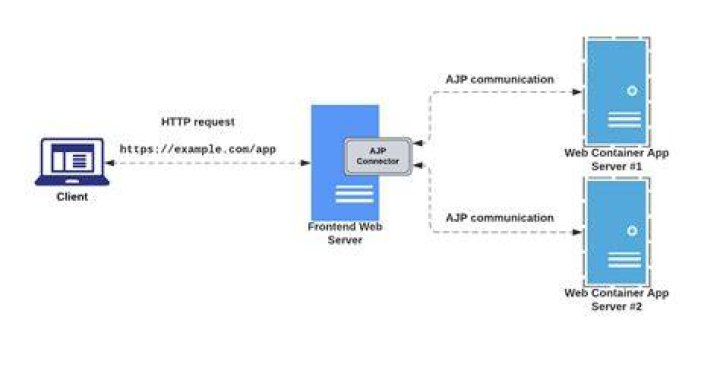

Apache JServ Protocol, or AJP, is an optimized binary version of HTTP that is typically used to allow Tomcat to communicate with an Apache web server. … This functionality is typically required in a high-traffic production situation, where Tomcat clusters are being run behind an Apache web server.

What is Tomcat AJP connector used for?

Apache JServ Protocol (AJP) is used for communication between Tomcat and Apache web server. This protocol is binary and is enabled by default. Anytime the web server is started, AJP protocol is started on port 8009. It is primarily used as a reverse proxy to communicate with application servers.

What is Tomcat AJP 1.3 connector?

The AJP/1.3 Connector element represents a Connector component that communicates with a web connector via the JK protocol (also known as the AJP protocol).

What is AJP connector Tomcat 9?

The AJP Connector element represents a Connector component that communicates with a web connector via the AJP protocol. … Use of the AJP protocol requires additional security considerations because it allows greater direct manipulation of Tomcat’s internal data structures than the HTTP connectors.

How do I disable AJP connector?

1. Edit the file server.xml.
2. Search for the section, <!– Define an AJP 1.3 Connector on port 8009 –> …
3. Comment out the AJP protocol configuration, from: <Connector port=”8009″ protocol=”AJP/1.3″ redirectPort=”8443″/> …
4. Save the server.xml file.
5. Restart Apache Tomcat. Reference.

What is redirect port in Tomcat?

redirectPort. If this Connector is supporting non-SSL requests, and a request is received for which a matching <security-constraint> requires SSL transport, Catalina will automatically redirect the request to the port number specified here.

How does Tomcat NIO connector work?

The NIO connector (non-blocking I/O) is a bit more complicated. It uses the java NIO library and multiplexes between requests. It has two thread pools – one holds the the poller threads, which handle all incoming requests and push these requests to be handled by worker threads, held in another pool.

What is Ajp in Java?

The Apache JServ Protocol (AJP) is a binary protocol that can proxy inbound requests from a web server through to an application server that sits behind the web server.

How do I enable AJP?

1. Open the /Apache Software Foundation/Tomcat 9.0_Tomcat9_30/conf/server. …
2. Remove the comments for the connector.
3. Modify the address parameter to expand the listening range to not only the loopback address.

What is Tomcat Connector executor?

The Executor represents a thread pool that can be shared between components in Tomcat. Historically there has been a thread pool per connector created but this allows you to share a thread pool, between (primarily) connector but also other components when those get configured to support executors.

Article first time published on

Is AJP encrypted?

EDIT: AJP is not designed to be secure, if you need security, use mod_proxy_http and proxy over https, or create SSH tunnel.

What is maxThreads in Tomcat?

By default, Tomcat sets maxThreads to 200, which represents the maximum number of threads allowed to run at any given time. You can also specify values for the following parameters: minSpareThreads : the minimum number of threads that should be running at all times. This includes idle and active threads.

What is ajp13 protocol?

The ajp13 protocol is packet-oriented. A binary format was presumably chosen over the more readable plain text for reasons of performance. The web server communicates with the servlet container over TCP connections.

What is the full form of AJP?

Assam Jatiya ParishadAbbreviationAJPPresidentLurinjyoti GogoiSecretaryJagadish BhuyanFounded2020

How do I find Tomcat version?

1. Check the %_envision%\logs\pi_webserver.log file and find the line contains Apache Tomcat. …
2. Refer to the ServerInfo.properties file within the tomcat-catalina.jar file. …
3. Run a Java command to show the Tomcat version.

Is Tomcat not blocking?

The default installation of Tomcat supports 200 simultaneous connections. This number can be increased in the maxThreads attribute of a Connector tag in the server. … However, Tomcat also supports Non-Blocking I/O.

How does Java NIO work?

Java NIO enables you to do non-blocking IO. For instance, a thread can ask a channel to read data into a buffer. While the channel reads data into the buffer, the thread can do something else. Once data is read into the buffer, the thread can then continue processing it.

Does Tomcat use OpenSSL?

Tomcat can use three different implementations of SSL: JSSE implementation provided as part of the Java runtime. JSSE implementation that uses OpenSSL. APR implementation, which uses the OpenSSL engine by default.

What is Catalina in Tomcat?

Tomcat is actually composed of a number of components, including a Tomcat JSP engine and a variety of different connectors, but its core component is called Catalina. Catalina provides Tomcat’s actual implementation of the servlet specification; when you start up your Tomcat server, you’re actually starting Catalina.

What is Tomcat default port?

By default, Apache Tomcat runs on port 8080.

How configure Tomcat in IIS?

1. On Tomcat, deploy the WebFOCUS web application by creating the ibi_apps context, as explained in Configuring Tomcat.
2. On IIS, set the /approot aliases (virtual directory).
3. Install and configure the Tomcat Connector (Jakarta Tomcat Connector JK1.

What is mod_jk and Mod_proxy?

mod_jk is mature, stable and extremely flexible. It is under active development by members of the Tomcat community. mod_proxy_ajp is distributed with Apache httpd 2.2 and later. Note that the communication protocol used is AJP. mod_proxy_http is a cheap way to proxy without the hassles of configuring JK.

How much load can Tomcat handle?

The default installation of Tomcat sets the maximum number of HTTP servicing threads at 200. Effectively, this means that the system can handle a maximum of 200 simultaneous HTTP requests.

How do I monitor Tomcat?

There are many ways to monitor a Tomcat application server. Java Management Extension (JMX) interface can be used to collect metrics about the server. Application logs can be monitored to determine errors that happen. The application process can be tracked to determine times when the server restarted.

What is a HTTP connector?

The HTTP connector enables integration with any cloud applications that has a HTTP-based API. You can create a new connector as well as add new triggers or actions to existing Workato connectors. This article covers the V2 HTTP connector, which launched in July 2018.

What is difference between AJP and HTTP?

AJP Connectors work in the same way as HTTP Connectors, but they use the AJP protocol in place of HTTP. Apache JServ Protocol, or AJP, is an optimized binary version of HTTP that is typically used to allow Tomcat to communicate with an Apache web server.

What is JMX port in Tomcat?

JMX (Java Management Extension) is a very powerful technology, which lets you administer, monitor and configure Tomcat MBeans. If you are a Tomcat administrator, then you should be familiar with how to enable JMX in tomcat to monitor Heap Memory, Threads, CPU Usage, Classes, and configure various MBeans.

What is called as Tomcat's JSP engine?

Jasper is Tomcat’s JSP Engine. Jasper parses JSP files to compile them into Java code as servlets (that can be handled by Catalina). At runtime, Jasper detects changes to JSP files and recompiles them.

How do I view threads in Tomcat?

To find the status of the in-use threads, Tomcat provides the ThreadPool MBean. The attributes currentThreadsBusy, currentThreadCount and maxThreads provide information on the number of threads currently busy, currently in the thread pool and the maximum number of threads that can be created.

What port is 8009?

8009 is the default port for the AJP protocol endpoint. If there is an entry in your log file that includes “ajp” and “initializing”, the server is vulnerable.

What is HTTP reverse proxy?

A reverse proxy is a server that sits in front of web servers and forwards client (e.g. web browser) requests to those web servers. Reverse proxies are typically implemented to help increase security, performance, and reliability.
