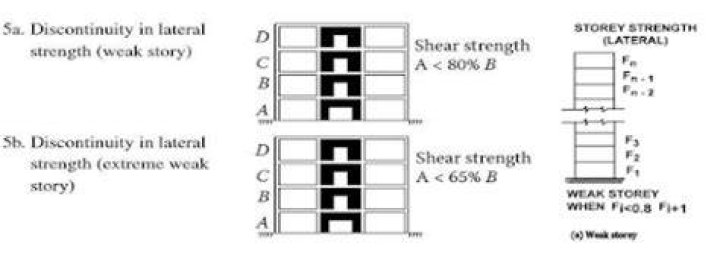

Weak-storey is simply formed by the neighbor floors which have redundant columns, concrete walls and brick-wall areas. The most common observed earthquake damage types encountered in Turkey is caused by the weak-storey irregularities.

What is a soft story structure?

A soft story building is a multi-story building in which one or more floors have windows, wide doors, large unobstructed commercial spaces, or other openings in places where a shear wall would normally be required for stability as a matter of earthquake engineering design.

What is the soft story mechanism and why is it a source of earthquake failure?

Soft stories experience a sudden reduction in lateral stiffness and larger story drift (see figure above), resulting in a concentration of deformation in the ground floor that can cause severe damage to total collapse. The soft story issue has been widely observed in historical earthquakes around the world.

How do you identify a soft story?

What is a soft-story building? A soft-story building is a structure which has a weaker first floor and is unable to carry the weight of the stories above during an earthquake. The first floor generally would have large openings in the perimeter walls such as garages, tuck under parking or even large windows.

How do you stop a soft story?

In case it is necessary, irregularities can be eliminated by increasing the lateral rigidity of this storey by putting up additional walls between single structural elements on the soft storey; placing diagonals between the columns and shear walls; increasing the rigidity of the soft storey by increasing beam-column …

Is my building a soft story?

A typical soft story building is an apartment building of three or more stories located over a ground-level that has large openings, like tuck-in parking garages, or any other large openings. The first floor is considered weak because it is missing adequate shear walls.

What is storey stiffness?

Equivalent storey stiffness of a storey (Ki,eq) is estimated as the lateral force that results in unit lateral translational deformation in that storey (Fig. 4). Thus, this method requires n-additional analyses to estimate storey stiffness of an n-storey building.

Why are soft story buildings in danger during an earthquake?

The soft-story apartment buildings with carports under them are more susceptible to collapse in an earthquake because the heavier upper floors are resting on a weaker ground floor. The wood and cement columns cannot support the entire buildings during violent shaking.

What is a soft story garage?

What is a Soft-Story Building? A typical soft story building is a multi-level structure located over a ground level with large openings. For instance, a building with tuck under parking, garage, or commercial store front.

What is a soft first story?

Technically, the definition of a soft story building is one in which the first story has 70% or less stiffness than the second story or 80% less stiffness than the average stiffness of the three stories above it.

Article first time published on

Which floor is safest during an earthquake?

The shaking will probably be more wobbly than jerky, so if you have everything secured properly, it should reduce the risk of things flying everywhere. If you live in a country with good building codes, there is very little risk of it collapsing, so you may feel safer on the bottom floor if you want to get out quickly.

What is lateral stiffness?

The lateral stiffness Ks of a story is generally defined as the ratio of story shear to story drift. … Conse- quently, the lateral stiffness of a story is not a stationary property, but an apparent one that depends on lateral load distribution.

How long does a soft story retrofit take?

You can learn more about retrofitting and soft – story retrofit in our previous article. However, on average a project can last from 4 to 12 weeks, after receiving a client’s permits and plans, depending on the scope of work.

What is a stilt floor?

A stilt floor is a partially covered parking space on the ground floor of a commercial or residential building. Its height ranges from 2.4 m to 2.7m. A stilt floor is supported by pillars with all four sides open, it usually contains a generator room, switch room, society & information room, etc.

What is base shear?

Base shear is an estimate of the maximum expected lateral force on the base of the structure due to seismic activity. It is calculated using the seismic zone, soil material, and building code lateral force equations (Figure 10.3). … Proximity to potential sources of seismic activity (such as geological faults)

What is mass irregularity?

Mass irregularity is considered to exist where the seismic weight of any storey is more than 200 percent of that of its adjacent storey. … One regular building with uniform mass is studied with 4 irregular buildings with varying masses for Base shear, Mode shapes, storey drift, story shear, Torsion moment.

What is stiffness of building?

Stiffness is a measure of how much force is required to displace a building by a certain amount. If it requires more force to shift Building A than Building B, we would say that Building A is stiffer.

What is story displacement?

1) Story displacement is the lateral displacement of the story relative to the base. The lateral force-resisting system can limit the excessive lateral displacement of the building. … Normally the story drift ratio around the intermediate level of the building is more critical than that at the top.

How is stiffness calculated?

Its stiffness is S = F/δ where F is the load and δ is the extension.

Is my apartment soft-story?

A typical soft story building is an apartment building of three or more stories located over a ground level that has large openings, like tuck-in parking garages, or any other large openings. The first floor is considered weak because it is missing adequate shear walls.

What does retrofitting a building mean?

Renovation, retrofit, and refurbishment of existing buildings represent an opportunity to upgrade the energy performance of commercial building assets for their ongoing life. Often retrofit involves modifications to existing commercial buildings that may improve energy efficiency or decrease energy demand.

Is earthquake retrofit required?

Q: What is the Retrofit Ordinance and why was it passed? A: Los Angeles City Ordinance 183893, with amendments 184081, is a city law that mandates the earthquake retrofit of certain buildings if they cannot be proven to meet specific safety standards.

What is soft parking?

Soft First Floor Parking is similar to first floor parking in configuration and location. However, the construction feature that delineates it from first floor is the absence of perimeter load bearing walls.

How do you know if a building is earthquake safe?

Using the Department of Building and Safety website, you can easily check to see if your building is on that list. Just enter your address into the search tool and click on the “Soft-story Retrofit Program Information” button once your building’s information appears.

Why do earthquakes make noise?

High-frequency vibrations from the shallow earthquake generate the booming sound; when earthquakes are deeper, those vibrations never reach the surface. Sometimes the earthquakes create booming sounds even when no vibrations are felt.

Where do you hide in an earthquake?

COVER your head and neck (and your entire body if possible) underneath a sturdy table or desk. If there is no shelter nearby, get down near an interior wall or next to low-lying furniture that won’t fall on you, and cover your head and neck with your arms and hands.

What floor is safest in collapse?

When a building does collapse, the safest place to be is on the top floor, and the most dangerous is the ground level.

What is Etabs story stiffness?

than the stiffness of the 4.5m story is about the 0.5 times of other story. But after analysis in ETABS the story stiffness is dependent upon the story lateral force and the story displacement. in same case the stiffness of the story is varying for static analysis and response spectrum analysis.

How do you increase the stiffness of a building?

1. Central Core. The stiffness of buildings can be increased substantially through the construction of central core. …
2. Shear Walls. Shear wall is a structural member used to resist lateral forces. …
3. Braced Frame. …
4. Tube system. …
5. Double Tube System.

What is torsion stiffness?

Torsional stiffness is defined as the amount of torque required for twisting an object by unit radian. It is also known as the ratio of torque to the angular twist. Hence the torsional stiffness is given by, Torsional stiffness = Tθ

How much does retrofitting cost?

HOW MUCH DOES IT COST? The CEA estimates that a retrofit costs between $3,000 and $7,000, and generally takes two to three days to complete, depending on the type of home you have and where you live. To help offset that cost, California’s Earthquake Brace + Bolt program is offering up to $3,000 towards the retrofit.
