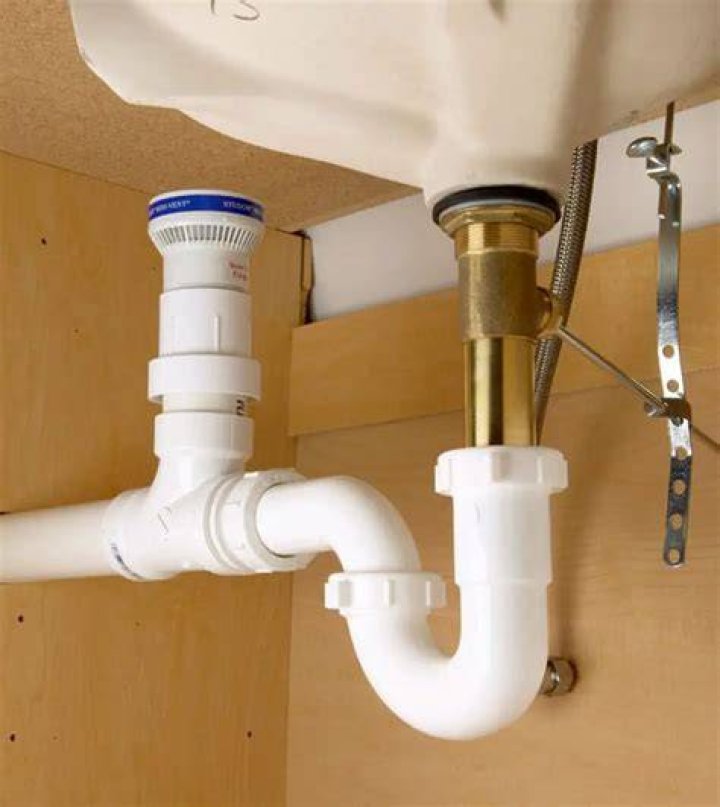

The Studor vent lets that air to be sucked in the pipe during water flow but doesn’t let sewer gas escape out. Code is the thing that determines pipe size and also water flow. Hence no studor vents are permitted to toilets because more air is required to keep water flow going with more waste added to the toilet.

What is the point of a studor vent?

The Studor vent lets that air to be sucked in the pipe during water flow but doesn’t let sewer gas escape out. Code is the thing that determines pipe size and also water flow. Hence no studor vents are permitted to toilets because more air is required to keep water flow going with more waste added to the toilet.

How many fixtures can you have on a studor vent?

A single vent serves as the vent for three to eight fixtures. The Studor vent serves as the circuit vent. More than one Studor vent can be installed within a horizontal branch to vent various fixtures. A relief vent is required when more than 4 branch intervals are located above the branch connection.

Do studor vents go bad?

Nowadays the studor vent is used everywhere and now allow it on every plumbing fixture except your laundry vent. … They are however overused so if you can put a traditional vent in it is best to do because the studor vent does not last forever and they do go bad and need replacement from time to time.

Where are Studor vents located?

Air Admittance Valves (aka Studor vents) are “negative-pressure-activated” one-way mechanical valves. Used most commonly at an island sink or vanity the vents are also located in the attic to prevent the roof penetrations (as seen above) on the front roof line elevation.

Why does my air admittance valve smell?

air admittance valves only let air in,that is if they are installed correctly,but they can not do anything about back pressure in system ,this can push smells through traps and into the room.it could be syphonage of one or more traps,due to poor pipework installation,but is more likely to be shower wastes that are the …

Can you put a Studor vent in the wall?

You can cover it with a vent grill on the wall of your heating/cooling system, but you can’t bury it in a wall.

How do I test my plumbing vents?

Use a flashlight to shine a bright light down the vent pipe to look for further blockage you can reach. If you can see but can’t reach, run a plumber’s snake down the vent pipe. To continue, feed the end of a garden hose down the vent and have someone on the ground turn on the water.

What happens when an air admittance valve fails?

Failure to bring air back into the pipes can result in a vacuum (causing slow draining and gurgling), or even the siphoning of water out of traps (allowing sewer gases to enter the home through drain openings).

Can you studor vent a shower?

Studor vents help to facilitate drainage in bathtubs and showers. Often, when a bathtub, shower or washing machine is bubbling or gurgling, either a Studor vent needs to be installed or an existing vent is locked in the open position.

Article first time published on

How far can a shower be from a vent?

The connection between the fixture drain and the horizontal drain and vent pipe is the only vertical pipe of a combination drain and vent system. 8 feet is the maximum vertical distance.

Can two toilets share the same vent?

The waste lines can usually be tied into the same stack if the house has more than one toilet. They may need their own stack if they are on opposite sides. Two vent openings on the roof are needed since the stacks must be vented.

Does an air admittance valve stop smells?

An air admittance valve uses a clever system that is activated by negative pressure. As negative pressure occurs, the valve opens to allow air into the pipe. Once the pressure balance is recreated, the valve closes again. This allows air to be drawn in when required, but prevents unwanted odours from entering the home.

Can a studor vent be installed outside?

The Maxi-Vent is discreet – it can be installed in the attic area, or even below the flood level of the highest connected branch. It may also be installed outside the building when used in conjunction with the aluminium cover and polystyrene cap.

Do sinks have to be vented?

A vent is a necessary part of the drain system for any plumbing fixture. … Without venting, the negative pressure caused by the flow of draining water can potentially suck water out of the drain trap and allow sewer gases to enter the home. The vents allow air into the drain pipes to help keep the drain flowing properly.

How long does an air admittance valve last?

Air admittance valves are constructed to last you about 20 to 30 years. Therefore, if you’re replacing the valves quite often, there’s a deeper problem. Usually, these happen because of problems with the valve itself.

Can you use a studor vent on a washing machine?

Plumbing codes permit either a 1-1/2- or 2-inch standpipe for washing machines. … When these standpipes have a vent that terminates to an air admittance valve, the water cannot rise in the vent pipe. The air admittance valve is in the closed position under neutral or positive pressure.

Can a Durgo valve be boxed in?

Durgo Air Admittance Valves must be placed no lower than the highest exit point of any toilets, baths, basins or sinks in the home. They are usually placed in the loft space, in a cupboard or boxed in with plasterboard, although some form of ventilation is required.

Where should I place my air admittance valve?

Air admittance valves are typically placed between the P-trap of a fixture and the drain line. They are usually mounted on one leg of a sanitary tee, with the other leg going to the drain. The unit must be placed in accordance with local codes and the manufacturer’s instructions.

Do air admittance valves need maintenance?

Air admittance valves do not need any maintenance but can cause problems if they become faulty as they may allow sewer gas into the building.

Can you vent a toilet with an air admittance valve?

Don’t worry if you do not have a vent pipe in your house, or if it is blocked and you can’t fix it. Instead of thinking about massive construction projects, you can use an Air Admittance Valve, well-known as a cheater vent. … Atmospheric pressure goes through the valve and has the same effect as in the classical venting.

How high should a air admittance valve be?

Air Admittance Valves must be installed on a soil pipe at least 200mm above the highest water entry point on the system – that is the highest point that water can normally reach in a soil pipe. For aesthetic purposes though they are usually installed in the loft or in a duct or cupboard.

What size AAV do I need?

AAVs are typically available with 1 ½”, 2”, 3” and 4” adapter connections. The adapter size is based on the diameter of the vent pipe it is being installed on. Generally, a vent should be sized to be half the pipe diameter of the drain it is serving (refer to local codes for specific vent size recommendations).

Why do I smell sewage in my house?

If you are detecting foul sewer odors inside the house, this means that there is a weak link somewhere in your plumbing system. Possible sources include bathroom sink drains, toilets, kitchen drains, basement drains, old cast iron piping, or even the vent stack that goes out through your roof.

Why is my toilet gurgling when I take a shower?

If your toilet is gurgling when you shower, you have a blockage. … If either the line or the stack has a clog or blockage, air is forced either up or down your toilet, making the gurgling noise you’re hearing. In this article, we’ll explain how to solve the following problems: A clogged sewer drain.

Why does my bathroom sink gurgle when I flush the toilet?

The gurgling is produced as air passes through the sink P-trap, and if there’s enough to empty the trap, there won’t any barrier between you and nasty, methane-rich sewer gases. … A partial blockage in the toilet waste pipe can force air through the sink drain, and plunging the toilet may remove the blockage.

Can AAV be in Wall?

Each AAV has to be accessible and have unimpeded airflow, so it can’t be sealed inside a wall.

Are studor vents legal in California?

Air admittance valves (mechanical vents) are not allowed in CA.

Does a bathtub need a vent?

Bathtubs should have a vent to help drain wastewater properly. All drains in your bathroom, from your bathtub to your toilet, need a plumbing vent stack. Without a proper vent, you may hear gurgling pipes, smell a putrid odor, or notice slow-draining water.

Can a shower and sink share a vent?

If the vent is less than 5 feet from the other fixture, they can share it.

Can a shower and washer share a vent?

The washing machine and tub sharing a wet vent is a code violation. These two fixtures need to be vented separately. Section 912.1 of the International Plumbing Code under sub-section 912.1 Only fixtures within bathrooms are permitted to be wet vented.
