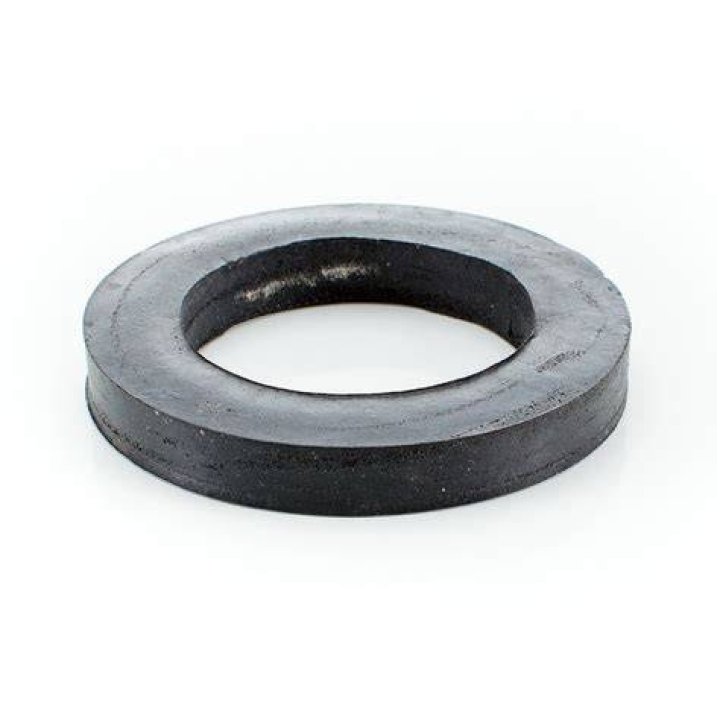

The spud washer fits inside the toilet on the base where the tank drains into the bowl. forming a seal here to hold the water in the tank. It is designed to be a water-tight solution for connecting the tank and seat portion together, while allowing a passageway from the tank to the bowl.

What size are spud washers?

Size (Spud x IPS for tailpiece)Spud Side (Fits in Hole)Rubber Washer1-1/2″ x 1-1/2″2-3/16″$1.412″ x 1-1/4″2-5/8″$2.582″ x 1-1/2″2-5/8″$2.482″ x 2″2-5/8″$1.67

What is a back spud?

A: A top spud fixture refers to a flush valve connection that is on top of the toilet generally located behind the seat. A back spud fixture has a connection for the flush valve located on the back of the toilet. In most cases a back spud fixture will use a concealed flush valve.

What is a spud fitting?

In a nutshell, welding spuds are an alternative to NPT half couplings. They have a nice flanged surface area where they attach to your tanks/vessels and present NPT threads to only one side in a very low profile. … It allows any male NPT fitting to be threaded in from the outside only.

What is a toilet diaphragm?

Diaphragm assemblies regulate pressure inside the valve using a flexible rubber disc (diaphragm) that seals the valve seat after each flush. Diaphragms that becomes worn or warped may either stick in place to prevent flushing or fail to seal so that the toilet keeps running.

What is spud wrench?

A spud wrench is a wrench with an adjustable or standard box wrench on one end and a tapered spike on the other. The spike can be used to line up bolt holes when installing pipe fittings, doing automotive work or—in the case of iron workers—for lining up bolt holes in girders and beams.

What is Radiator spud wrench?

Radiator Valve Spud Wrench is designed for making radiator valve repairs and can be used on 1/2 in. to 2 in. radiator valves. A radiator valve body is connected to the radiator by a spud. The Spud Wrench is used in order to remove the radiator valve and is required to loosen the spud.

Are toilet tank gaskets universal?

The purpose of the tank to bowl gasket is to provide a leak free seal between the toilet tank and bowl. … Manufactured in a high quality, chlorine resistant rubber, the Korky tank to bowl gaskets are universal to fit most toilet tanks. All kits are offered with and without tank to bowl hardware.

Are toilet spuds universal?

Country of Origin Indonesia. Country of Origin is subject to change. Toilet flush-valve spuds, spud couplings, and friction rings form a water-tight connection between a flush valve (flushometer) and a toilet.

Are all toilet tank seals the same size?

The 2 inch Tank to Bowl Gasket is universal to fit most 2 inch two-piece toilet tanks. The universal sponge rubber design measures: 2-1/8 inch inner diameter, 3-1/2 inch outer diameter and 1-1/4 inch thick.

Article first time published on

How long is a spud wrench?

Spud Wrench, 1-1/16-Inch Nominal Opening for Utility Nut.

What is the difference between a pipe wrench and a spud wrench?

A pipe wrench is bigger and sturdier than a standardwrench,allowing it to turn pipes more efficiently. You’ll need a medium-size adjustable pipe wrench to tighten and loosen pipes and other plumbing connections. … A spud wrench is designed to remove these slip nuts.

Whats the difference between a spud wrench and a pipe wrench?

Both spud wrench and pipe wrench are for pipes, yet they differ in pipe usage because a spud wrench is mostly preferred in automotive pipe work as an alternative to the adjustable wrench, with lining up bolt holes when installing pipe fittings, while the pipe wrench is used in plumbing.

What is a 3 in 1 spud wrench used for?

Function. A spud wrench is intended to loosen and tighten a section of piping found on older model toilets. … The spud wrench was designed to work on the bolts, collar and other pieces of the spud unit.

Which way round does a diaphragm washer?

Normally the washer is fitted with the convex side facing the arm and float. The assembly at the other side of the valve body is valve cone facing inwards (pointy end in first) then washer (rubber should be ok) then rear body section. Thanks very much for that concise explanation.

How does a diaphragm fill valve work?

Once the Diaphragm has begun to lift, mains pressure from the inlet tube pushes water into the Outlet Pipe chamber from where it can get between the Diaphragm and its support adding to the area of the Diaphragm being forced upward so it opens quickly. This is the mechanism at work opening the valve.

Can you use a screwdriver to bleed a radiator?

You can use a flathead screwdriver to bleed a radiator without a key. Place the flat head into the notches of the bleed valve. To bleed the radiator, turn anticlockwise to open the valve, and clockwise to close the valve. Remember to hold an old cloth or jug under the bleed valve to catch any escaping water.

What does a vacuum breaker do on a toilet?

A vacuum breaker is an attachment commonly placed on a bibcock valve or toilet or urinal flush valve, that prevents water from being siphoned backward into the public drinking water system. This prevents contamination should the public drinking water system’s pressure drop.

Does a urinal have a wax ring?

Urinal wax rings, seals, and gaskets help form water-tight connections to prevent leaks around urinals. They seal the connection between the urinal and flush valve or between the urinal and the wall or floor.

What is flush valve?

The flush valve, located in the middle of the toilet tank, includes the overflow tube, the hole where water enters the bowl when the toilet is flushed and the rubber tank ball or flapper that covers the hole when the tank is full. A broken flush valve prevents your toilet tank from forming a seal to hold water.

Is there a gasket between toilet tank and bowl?

The point of connection between a toilet tank and toilet bowl is sealed by a rubber gasket which rarely needs replacing. Rubber has a tendency to dry out with age, however, and it can eventually crack.

How many gaskets does a toilet have?

Your toilet tank has four gaskets, and they all must be in good shape to hold water. Two seal the openings through which the tank bolts extend to hold the tank to the bowl. The third, sometimes called a spud washer or sponge, seals the water passage between the tank and the bowl and the fourth seals the flush valve.

Why is the bottom of my toilet tank leaking?

One reason for a toilet leak from the base might be a loose connection where the tank meets the toilet. … Shut off the water at the valve, then flush and hold the handle until all the water has drained from the tank. Remove the old bolts and washers. Clean and dry the area, then install new washers and bolts.

How often do toilet flappers need to be replaced?

Some drop-in bowl cleaners are also hard on the rubber component of a flapper. As the flapper deteriorates it allows leakage. Although it is not something many of us think of as needing replacement on a routine basis, in general, a toilet flapper should be replaced every three to five years.

Is my toilet 2 or 3?

Measure it The size of a toilet flapper is based off of the inside drain diameter. If it measures 1 7/8″ or 2 3/8″ then you have a 2″ toilet. If it measures in the 3″ range, you have a 3″ toilet.

Are all toilet flappers the same?

Flappers comes in two sizes, two inch and three inch. A majority of toilets will use the two inch flapper; however three inch flappers have become popular in recent years and can be found in newer toilets manufactured since 2005.

Does a spud wrench have smooth jaws?

12″ Spud Wrench features narrow jaws to fit into tight places. … Smooth, toothless jaws ideal for square or rectangular stock.
