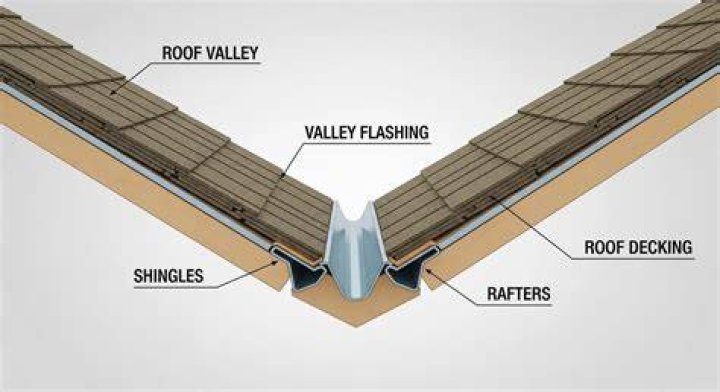

A roof valley is formed where two roof slopes meet. Water collects in a valley to flow off the roof. Your choice of valley installation method is critical because, when improperly installed, valleys are risks for serious leaks.

What part of the roof is the valley?

Valley—Where two sloping roof sections meet. Valley Flashing—The metal or fabric in valleys, extending in under the shingles on both sides.

What are the different types of roof valleys?

There are three main types of roof valleys — cut, weaved and exposed metal. The types differ in various ways, but there are a few central characteristics that set each design apart.

How long do roof valleys last?

At best, roof valleys can last 20 years. It’s highly dependent on the materials used, the quality of the installation, the location of the house, the weather, and so on.

What type roof Valley is the best?

As mentioned above, the closed roof valley is often considered the most aesthetically pleasing. Many homeowners prefer the seamless look of the closed roof valley over the metal-lined open valley, and many homeowners also like the lower cost that comes with the closed roof valley application.

What is a valley in construction?

Valleys are typically found where gable dormer roofs meet the main roof, or when a house has angled wings or additions where two roof sections in different planes meet. … The opposing surfaces of the roof planes drain the water towards the valley area, where it is then channeled towards the edge of the roof.

What is a valley on a house?

Roof “valleys” are the areas on your roof where the slopes meet, forming a V angle where water usually runs off. Roofing contractors understand that these areas are usually the most problem-prone areas of the roof.

How do I stop my roof valley from leaking?

Start by ensuring that the roofing material is properly fastened along the edges of the valley. When in doubt, run a bead of sealant where the roofing material meets the valley underlayment to stop any leaks caused by cross wash. For the most part, leaks and other problems common to roofing valleys are easy to correct.

What causes a roof valley to leak?

The leak is usually caused by flashing at the valley area being improperly installed or nonexistent all together. This sloppy work is usually done by inexperienced roofers or general contractors. The best way to avoid leaks all together is to hire a professional roofing contractor.

Are metal roof valleys better?

Open metal roof valleys provide great performance, especially when it comes to shedding snow and avoiding debris build-up. They also perform better because they don’t require as much nailing in the valley.

Article first time published on

Is Valley flashing necessary?

The valleys see the most water flow, as water from both surfaces gathers in the valley as it runs down. The extra layer of flashing in the valley helps protect it from water intrusion. Metal flashing, which is most often used, also helps the water move more quickly off the roof, and even the occasional snow.

Does Valley metal go under shingles?

Cut Shingles Cut the top layer of shingles along the chalkline. Slip a piece of sheet metal flashing under the top layer of shingles to protect the bottom layer in the valley while you cut the shingles with a hook blade.

What is a valley gutter?

A valley gutter can be defined as the area where two main roofs meet or a change in the roof’s direction. Often found between adjoining, pitched-roofed houses and warehouse buildings, valley gutters are common across the UK. Valley gutter system can take several forms.

When should I replace my roof Valley?

Roof valleys may become worn down, they may become damaged due to poor weather conditions, or they may become rusted through exposure to the elements over time. When this occurs, it becomes more difficult for water striking the roof to be diverted where it needs to go.

What is a valley rafter?

Definition of valley rafter : the rafter running from the wall plate to the ridge and along the valley of a valley roof.

How big is a valley?

Such valleys can be up to 100 km (62 mi) long, 4 km (2.5 mi) wide, and 400 m (1,300 ft) deep (its depth may vary along its length).

How do you seal a valley?

Apply a bead of roofing cement around the outer edge of the patch slide the patch under the shingles on one side and then the other. Put more roofing cement on the top and bottom of the patch where it lays over the original valley piece. Smooth the cement so water can flow uninterrupted down the valley.

Can you replace valley metal without replacing shingles?

Small holes can be patched with the same type of sheet metal the original valley is made of; using a different metal to patch it will cause corrosion. In most cases, valleys can be repaired without touching other parts of your roof.

How do you seal a metal roof Valley?

Best practices for sealing the metal roof valley vary based on the slope of the roof. Use tape sealant between the valley trim and the panel. Use fasteners to attach the panel to the structure, making sure that there is complete compression of the sealant.

What is valley flashing used for?

An open valley relies on metal flashing for protection. That flashing is left exposed, so the roof has visible lines of metal running down the valley. Some homeowners do not like the look of open valleys, while others feel the metal accentuates the roof’s shape, particularly if copper or painted flashing is used.

What is valley metal for a roof?

A metal valley is a pre-bent roof material that protects vulnerable areas of your roof prone to water damage or leaking. The proper way to install a metal valley is on top of an ice and water shield, creating an effective passageway for rainwater into your gutter and keeping your roof dry and well-protected.

Why do builders put flashing in roof valleys?

Roof flashing. Placed around discontinuities or objects which protrude from the roof of a building to deflect water away from seams or joints and in valleys where the runoff is concentrated.

How do you slow down water in a valley?

Splash guard or diverter: Splash guards slow down the flow of water as it runs down a metal valley, and diverts the water into the gutter so the water does not shoot over the joint corner (or “miter”) of the gutter.

How do you stop heavy rainwater from jumping the gutter?

1. Clean Out Your Gutters And Downspouts. Debris clogging your gutters and downspouts are the most common cause of rainwater jumping the gutters. …
2. Install Splash Guards And Mesh Guards. …
3. Buy Bigger Gutters. …
4. Check The Tilt And Pitch Of Your Gutters.

Which side of the valley do you Shingle first?

A valley shingle is then installed parallel to the centerline and offset a couple of inches. Shingle courses are installed starting at the bottom. Each course is started at the valley, aligning the bottom corner of the first shingle on each course with the edge of the valley shingle nearest the valley centerline.

Which is better open valley or closed Valley?

Closed Roof Valley Closed roof valleys are very popular among homeowners for this reason. Open valleys can help your roof shed ice and water more efficiently, but closed valleys are faster, easier and generally cheaper to install. It’s all a matter of determining what you’re looking for in a roof.
