reamer, rotary cutting tool of cylindrical or conical shape used for enlarging and finishing to accurate dimensions holes that have been drilled, bored, or cored. … Machine reamers are used on machine tools such as drill presses, lathes, and screw machines.

How does a reamer work?

A reamer is a type of rotary cutting tool used in metalworking. Precision reamers are designed to enlarge the size of a previously formed hole by a small amount but with a high degree of accuracy to leave smooth sides. … The process of enlarging the hole is called reaming.

What is the difference between drill and reamer?

Drilling is performed to originate a hole on a solid surface. Reaming is performed to finish internal surface of an existing hole. … So reaming is performed only after drilling (or boring). Cutting tool used in drilling operation is called Drill.

Why is reaming used?

The primary purpose of reaming is simply to create smooth walls in an existing hole. Manufacturing companies perform reaming using a milling machine or drill press.

What is reaming and why it is required?

Reaming is applied to accurately finish drilled holes with a good surface finish and size. It offers the advantages that a greater number of holes can be produced with consistently good quality. Reaming required which has exact diameter required. … Reaming calls for a hole that has been exactly pre-machined.

What is reamer in mechanical engineering?

reaming in Mechanical Engineering (rimɪŋ) (Mechanical engineering: Manufacturing and assembly) Reaming is a cutting process in which a cutting tool produces a hole of a very accurate size. Reaming is done to a hole which has been already drilled, to produce a truly circular hole of exactly the right diameter.

What is the difference between tapping and reaming?

Reaming is a cutting operation with a multiple-edge tool which is constantly in action. Bores of high dimensional accuracy and surface finish can be produced. Tapping is a cutting operation with a multiple-edge tool (tap). Tapping provides a hole with a thread as non-permanent joint.

Can you use a reamer in a drill press?

A drilled hole will be accurate to about two thousandths of an inch in diameter. Use a reamer if greater precision is required. A reamer looks like a drill bit but it has no point, so it’s not useful for starting holes. … The drill press also looks like it could work as a milling machine, but it is a poor substitute.

What is reaming machine process?

Reaming is a machining process in which a light cut to improve the accuracy of a round hole and enlarges an existing hole to the diameter of the tool by means of a rotary multifluted cutting tool typically aided by cutting fluids.

Why is reaming more accurate than drilling?

Quality Of Surface Boring creates a much better surface when compared to drilling. Reaming produces a highly finished surface when compared to drilling and boring so that it can give good accuracy compared to drilling and boring.

Article first time published on

How much material can you remove with a reamer?

Typically, the rule of thumb is to keep 0.010″ to 0.015″ material after drilling for the reamer to remove. Very small diameters, say 1/32″ or less, should have 0.003″ to 0.006″ of material to remove by reaming.

Why reaming is an essential operation after drilling?

The direction of rotation of the work spindle is of special importance for reaming. When reaming, the workpiece must always rotate in opposite direction to the cutting edges (clockwise rotation), also when the tool is retracted, since otherwise the cutting edges would chip.

How accurate are reamers?

Standard chucking reamers can achieve hole-to-hole repeatability of 0.0005″ (0.0127mm). A reamer’s flute geometry is what allows the tool to repeat closely.

How many types of reamer are there?

Reamers Designs The lands should be large enough to prevent the deflection back from the cutting edges of sufficiently large sections to contain metal that dissipate the generated heat at the cutting edges adequately. Reamers are classified into two types either hand type or machine type.

Can you ream by hand?

To ream a hole by hand, choose a hand reamer in the same size as the hole you need. Fit the shank of the reamer into a tap wrench or a crescent wrench, and use a vise or clamps to secure the material you need to bore.

Can you use a reamer on wood?

A tapered reamer can help you easily enlarge a hole in wood, metal, or plastic. Designed to help de-burr metal, this is conical tool with several cutting edges, and can be had anywhere for well under $10. You simply insert and twist, and it will cleanly and easily remove material.

Which tool is used for outside threads?

Taps and dies are tools used to create screw threads, which is called threading. Many are cutting tools; others are forming tools. A tap is used to cut or form the female portion of the mating pair (e.g. a nut). A die is used to cut or form the male portion of the mating pair (e.g. a bolt).

What is chucking reamer?

Chucking Reamers are designed for accurate reaming. For use in most materials using all types of equipment including screw machines, turret lathes, drill presses, and machining centers. Regularly pointed with a 45º chamfer. The straight-flute design is recommended for most general purpose reaming.

How much should a reamer remove?

2%-3% of the reamer diameter will normally be appropriate stock removal when reaming.

Which taper used in the drilling machine?

The Jacobs Taper (abbreviated JT) is commonly used to secure drill press chucks to an arbor. The taper angles are not consistent varying from 1.41° per side for #0 (and the obscure #21⁄2) to 2.33° per side for #2 (and #2 short).

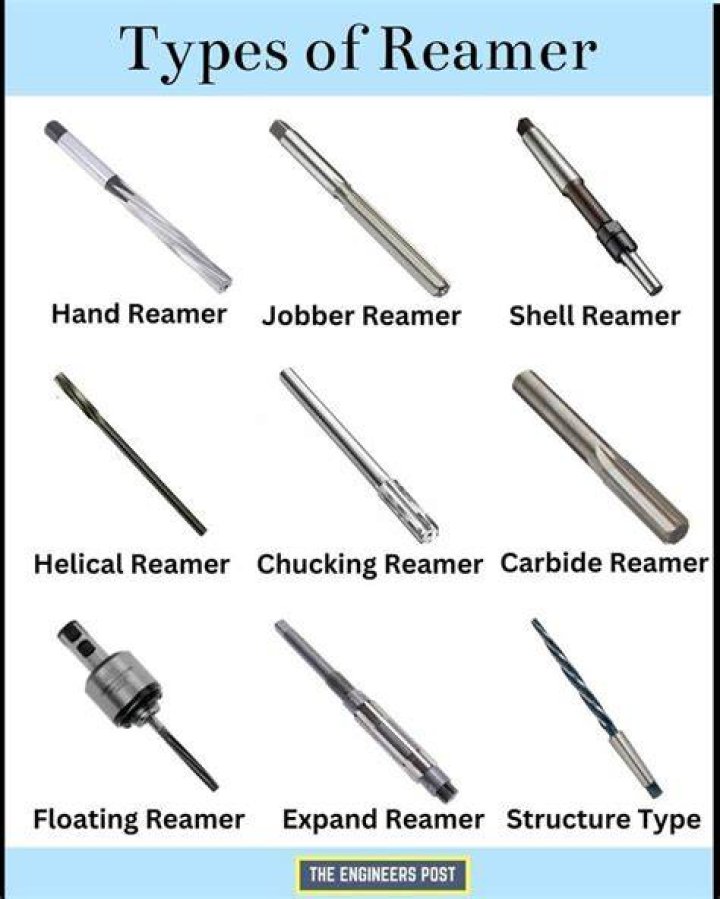

What are the types of reamer?

These are the main types of reamers: Chucking Reamers are the most widely used reamer and commonly used in lathes to enlarge smooth holes. Morse Taper Reamers are used to finish morse taper holes or sleeves.

What is a machine reamer made of?

Reamers are made from high-carbon steel, high-speed steel, and cemented carbides.

What is drilling in workshop?

Drilling: This is the operation of making a circular hole by removing a volume of metal from the work piece by a cutting tool called drill. Reaming: This is the operation of sizing and finishing a hole already made by a drill. Reaming is performed by means of a cutting tool called reamer having several cutting edges.

What is the difference between honing and reaming?

Reaming is an operation performed after drilling a hole in a work piece. This is done to remove the slight irregularity in the drilled hole and making it perfectly round. Honing is a surface finishing operation that gives very smooth inner surface usually required for frictionless relative motion between two parts.

What is the difference between reaming and boring operations?

Reaming is a process of sizing and finishing the already drilled holes while boring processes for producing holes of larger diameter compared to drilling. … Boring operation is done on lathe or milling machine also whereas reaming operation on the same types of machines as drilling.

What does reaming someone mean?

to criticize (someone) severely or angrily especially for personal failings. you are so going to get reamed out when the boss learns that you wrecked the company car.

How fast do you run a reamer?

Run at a spindle speed of about 1,800 rpm, the previous reamers took 3 to 4 seconds to finish a hole, whereas cut time for the new tool is 0.14 seconds per bore while running at 4,385 rpm, a 453-sfm cutting speed and a 157-ipm feed rate.

Do reamers have back taper?

The back taper reduces friction against the reamed surface and prevents the cutting of oversize holes. To effect the back taper, the diameter of the sizing section is reduced towards the neck by 0.005 to 0.008 mm for hand reamers, and by 0.04 to 0.08 mm for machine reamers.

What does H7 mean on a reamer?

Hole and shaft basis For example, in H7/h6 (a commonly-used fit) H7 represents the tolerance range of the hole and h6 represents the tolerance range of the shaft.
