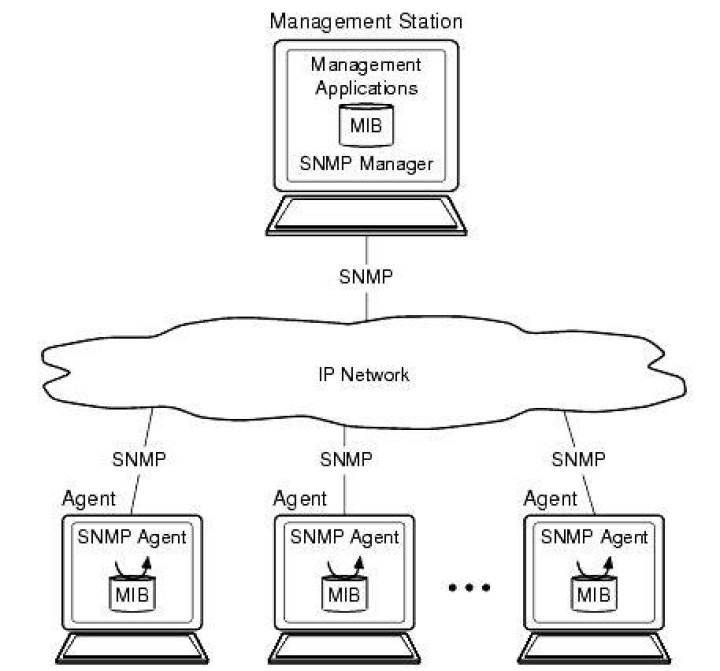

Each management station or agent in an SNMP-managed network maintains a local database of information relevant to network management, known as the management information base (MIB). The relationship between the management station, the agent, and the MIB is shown in the following figure.

What is the purpose of an MIB?

The fundamental purpose of the MIB is to translate numerical strings into human-readable text. When an SNMP device sends a message or “trap,” it identifies each data object in the message with a number string called an object identifier, or OID.

How MIB plays an important role in SNMP?

MIBs Files and OIDs Management Information Base (MIB) is a formatted text file that is contained within the SNMP manager. It collects information and organizes it into a hierarchical format. The manager will use this information from the MIB to translate messages before sending them to you.

What is OID and MIB in SNMP?

OIDs point to network monitoring objects stored in a database called the Management Information Base (MIB). … In telecom, SNMP OIDs describe specific locations in the managed network. The OID allows the MIB to translate the location of the event into a status description for your network administrators.

Is MIB a component of SNMP?

MIB is a Management Information Base, a key component of SNMP (Simple Network Management Protocol). More specifically, a MIB is a group of managed objects within a network.

How does MIB differ from MDB?

The MIB is used by both agent and management processes to store and exchange management information. The MIB associated with an agent is called an agent MIB and the MIB associated with a manager is designated as the manager MIB. … The manager has both the management database (MDB) and the MM.

How do I read a MIB file?

A MIB file is just ASCII text, so you can view it in any word processor or text editor, such as Microsoft Notepad. Some manufacturers provide precompiled MIBs in binary format, but those aren’t readable. You want the raw ASCII version of the MIB file. Note: MIB files are sometimes provided as Unix text files.

How do I get the SNMP MIB file?

1. Go to Configuration > System > Network > SNMP.
2. Under SNMP Configuration, click Download SNMP MIB . The EXINDA-MIB. txt file downloads to the location you specify.

How do I create a MIB file in SNMP?

1. Start the MIB Editor Application.
2. Select File -> Create MIB from the menu bar or by clicking on icon.
3. Fill in the following details in the wizard that opens up :
4. Name of the MIB Module (Module Name should start with an uppercase letter). Directory in which the MibModule should be placed.

How do I get oid?

To obtain a fully registered OID at no cost, apply for an OID under Internet Assigned Numbers Authority (IANA) maintained Private Enterprise arch. Any private enterprise (organization) may request an OID to be assigned under this arch.

Article first time published on

What do I do with a MIB file?

The manufacturer of your device will supply you with a MIB file. You’ll load that file into your SNMP manager through the interface it provides. Your SNMP manager will use the provided MIB data to interpret the incoming messages from your new device.

What is OID in Nagios?

SNMP (Simple Network Management Protocol) is a network protocol designed for monitoring network-attached devices. It uses OIDs (Object IDentifiers) for defining the information, known as MIBs (Management Information Base), that can be monitored.

What are MIB counters?

MIB means Management Information Base, that is information that can be used to manage a networking system. A typical set of MIB counters is: Number of packets received (for each port) Number of packets sent (for each port)

What are the 3 elements of SNMP?

SNMP consists of three key components: managed devices, agents, and the network management station (NMS).

What are the variables in the SNMP MIB called?

The MIB variables are referred to as MIB Object Identifiers (OIDs). OID names are hierarchy structured and unique. SNMP uses the OID to identify objects on each network element (device running SNMP agent) that can be managed using SNMP.

What is MIB module?

In fact, the MIB is the combination of all of the modules used for managing a specific device, whether the device relates to hardware or software. Therefore, the more precise name for each module defined by a vendor, or in an RFC, is SNMP MIB module. All MIB modules are eventually extensions of the root module.

What is MIB file size?

A mebibyte (MiB) is a multiple of the unit byte. It represents a unit of digital information storage used to denote the size of data. It is equivalent to 220,or 1,048,576, bytes.

What is MIB format?

The structure of Management Information Base (MIB) is a formatted text file that lists all of the data objects used by a particular piece of equipment. … In other words, the MIB is a text file that describes SNMP network elements (any device in the network) as a list of data objects.

How do I get SNMP OID from MIB?

1. Open an MIB browser, configure SNMP, and fill the required fields as in this document.
2. Click File > Load MIB.
3. In the Load a MIB File dialog box that opens, select the MIB file that contains the required tabular SNMP OID and click Open.

What is MIB networking?

A management information base (MIB) is a database used for managing the entities in a communication network. Most often associated with the Simple Network Management Protocol (SNMP), the term is also used more generically in contexts such as in OSI/ISO Network management model.

What is a SNMP agent and MIB agent?

The SNMP manager acts as the client, the SNMP agent acts as the server and the MIB acts as the server’s database. When the SNMP manager asks the agent a question, the agent uses the MIB to supply the answer. SNMP is so popular that most network devices come pre-bundled with SNMP agents.

What is an SNMP table?

An SNMP table can be defined as an ordered collection of objects consisting of zero or more rows. Each row may contain one or more objects. Each object in a table is identified using the table index. A table can have a single index or multiple indices. A scalar variable has a single instance and is identified by its “.

What is sysObjectId SNMP?

Description. This field contains the vendor’s identification of an SNMP managed object type. It represents the type of device and can also indicate the model number. For example, if using dotted-decimal format, the sysObjectId value of 1.3.

How do I know my SNMP OID?

1. Download it from the Net-SNMP website and install.
2. Open the cmd command prompt window and run the following command: snmpwalk.exe -c public -v1 -On 192.168.2.66.
3. There is also a command for using external MIBs: snmpwalk.exe -c public -v1 192.168.2.66 MIB [MIB name]

How much does an HL7 OID cost?

HL7 charges a fee for each OID registration; $250 for members, $500 for non-members (this fee is non-refundable).

Where is SNMP MIB stored?

MIBs are stored in the SNMP manager. When data is sent from the device to an SNMP manager, the MIB is used by the manager’s compiler to translate the data into a human-readable format.

Where are MIB files located?

Operating SystemFile LocationMicrosoft WindowsC:\Program Files\MySQL\Enterprise\Monitor\support-files\ OS X/Applications/mysql/enterprise/monitor/support-files/MONITOR.MIB

How do I convert MIB to OID?

1. Select ‘Import MIB File’ and import the downloaded Fortinet-Core-MIB and Fortinet-FortiGate-MIB files.
2. Once the files are imported successfully on paessler monitoring applications, the below message will appear. …
3. Then select ‘expand’ the MIB file and select the object to get OID from the list.

How do I use MIB in Nagios?

1. Downloaded the sonicwall MIBs from their website.
2. Since Nagios uses NetSNMP, just copy the MIB files into /usr/share/snmp/mibs.
3. “ check_snmp” is run with “-m ALL” and it detects the new mib.

Can Nagios monitor windows?

To monitor Windows Server with Nagios, the Nagios monitoring server must be a Linux system. Once admins install and configure this setup, they can create monitors for Windows machines with the Nagios Remote Data Processor (NRDP) agent.

Which OS can Nagios be installed on?

Nagios is an open source monitoring system for computer systems. It was designed to run on the Linux operating system and can monitor devices running Linux, Windows and Unix operating systems (OSes). Nagios software runs periodic checks on critical parameters of application, network and server resources.
