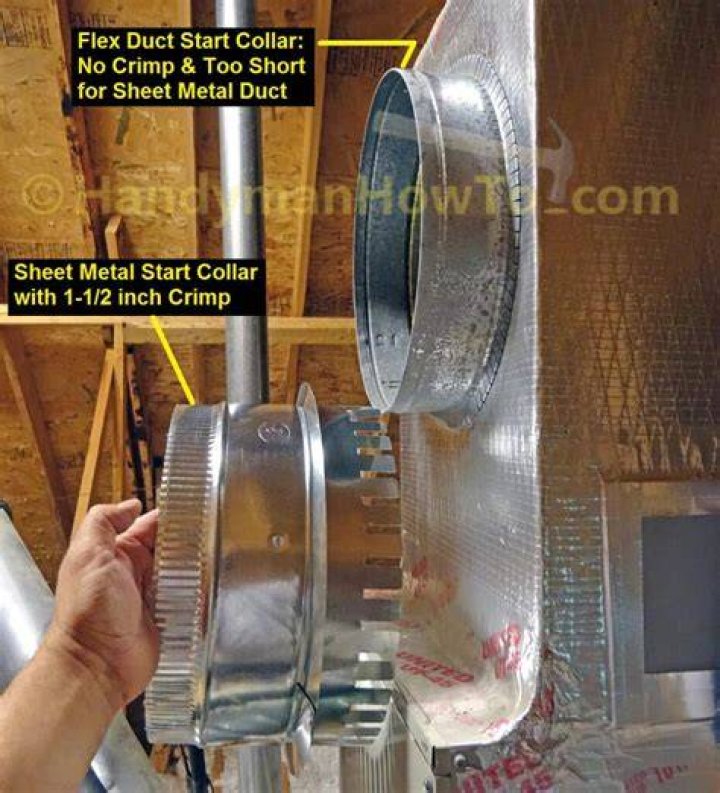

At a main duct or plenum, a starting collar is installed for attaching a straight or split fitting for the ducts. Installing a collar is the first step when installing the system of ducts. The job requires an HVAC plan or a clear idea of the planned duct work and, in some cases, the ability to work in confined areas.

What is an HVAC starting collar?

Start Collars from The Duct Shop are an economical way for starting a new duct run from your supply or return plenum. They are manufactured from the highest quality galvanized sheet metal and to our exacting standards. … No sheet metal screws are necessary with this application method.

What collar is HVAC?

The same is true of most blue collar jobs, for example, HVAC technicians as well as electrical wire and solar installers. If the work is primarily outside, on days with inclement weather, the blue collar worker takes a day off.

What is a duct fitting?

Duct fittings and configurations, including ells, tees, and reducers, are responsible for equalizing the duct pressure and balancing the airflow. … Another ductwork fitting is a vent cap that provides protection for the open end of a ductwork vent stack.

What is duct plenum?

A plenum is an air distribution box designed for forced-air systems on residential homes and commercial businesses. It is part of the ductwork, but far different than an air duct as these important boxes handle air as it enters the ducts and helps to recirculate it within a system.

What is a duct takeoff?

Top takeoff is used to cut into plenum or rectangular duct to begin a trunk line or branch-like runs. It allows transition from an air plenum or square duct to a round pipe.

What is duct flange?

We Have Flanged Duct. US Duct provides duct with flanges (also called angle rings or angle flanges) in black iron, galvanized, or stainless steel (SS) and with or without holes. The duct to which these flanges are attached is available in sizes 3″ and up, and also in black iron, galvanized or SS.

What are standard duct sizes?

Rectangular HVAC Duct Sizing Rectangular or square ducting comes in standard sizes ranging from 3 inches by 7 inches to 35 inches by 40 inches. Sizing is based on airflow needs per cubic foot per minute, as well as velocity.

What is the duct?

Ducts are conduits or passages used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. The needed airflows include, for example, supply air, return air, and exhaust air. Ducts commonly also deliver ventilation air as part of the supply air.

How do you connect duct work?

1. Step 1: Crimp One End. Select standard duct pieces for the connection that have crimped and uncrimped ends. …
2. Step 2: Insert Duct Into Next Piece. Insert the crimped end of the round duct into the uncrimped end of the next round duct. …
3. Step 3: Tape the Seams. …
4. Step 4: Screw the Pieces Together.

Article first time published on

What is a duct boot?

What Is a Duct Boot? HVAC boots are made of galvanized sheet metal and are designed to convert ductwork into a vent to heat a room. … These lines usually use round duct pipe or flex duct pipe to carry the air to each room. To run the air most efficiently into each room a duct boot is needed.

Is HVAC a good career?

In 2019, the U.S. Bureau of Labor Statistics reported that there were 376,800 HVAC technician jobs with an anticipated growth of 4% by 2029. … HVAC is a great career choice if you have a passion for the industry.

What is stack duct?

Used between wall studs for venting, heating & air conditioning supply & return duct.

What is HVAC used for?

HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings. They are the systems that keep you warm and cozy in the winter and feeling cool and fresh in the summer.

What's the purpose of a plenum?

In building construction Plenum is a separate space provided for air circulation for heating, ventilation, and air-conditioning. It is commonly found in the space between the structural ceiling and a drop-down ceiling or under a raised floor.

What is duct transition?

Biyang Duct Transition, also called Duct Connector is a critical and indispensable part of HVAC ductwork. It connects the different sizes of ducting, different parts of facilities, and different materials of ventilation components together to ensure the smooth and steady air flow.

How many types of ducts are there?

There are three main types of rigid ductwork: sheet metal ducts, fiberglass lined ducts, and fiberboard ducts.

How do you install duct vents?

1. Tools Needed.
2. Step #1: Locate The Spot & Mark It.
3. Step #2: Cut Duct Piece & Mark Vent Cover.
4. Step #3: Add The Vent.
5. Step #4: Cut Insulation Around Marked Hole.
6. Step #5: Mark Holes on Vent & Drill Them.
7. Step #6: Screw Vent.

What is a scoop in ductwork?

Directional takeoffs have some form of a metal scoop or extractor fitting (turning vanes that protrude into the airstream). The idea is to grab air from the duct and direct it into the branch fitting. … Airflow responds the same way inside a duct system when scoops or extractor fittings are used.

Can I install my own ductwork?

With a little help, you can do your own air duct installation. The typical rate for an hvac dealer to do it is about $50/hour. By providing the labor, you can save $1500-$2000 on average. You can save even more by purchasing the materials yourself.

How are ducts joined?

Joining duct pieces together with slip joints simply means slipping each part into the next and fixing with screws or rivets. The ducts are prepared during manufacture to enable a male/female connection (sometimes referred to as a ‘socket & spigot’ connection).

What is mastic for ducts?

Product Description. RCD Corporation #7 Mastic is a water-borne air duct sealant used for permanently sealing the fabricated joints and seams of sheet metal air ducts, rigid fiberglass air ducts, flexible air ducts and thermal insulation.

What are the 4 types of duct systems?

Namely, flexible ductwork, rigid ductwork, and semi-rigid ductwork. We’ve compiled information on each of these duct systems. These ducts are typically tube-shaped and made of a wire coil covered with a bendable, durable plastic, and surrounded by insulation.

What is duct in construction?

A duct is a length of underground piping (usually made of PVC), which is used to house electrical and communication cables. … The use of ducting enables construction crews to install cables using trenchless technology, which would not be possible otherwise.

How do I choose duct size?

To calculate the required equipment size, divide the HVAC load for the entire building by 12,000. One ton equals 12,000 BTUs, so if a house or office needs 24,000 BTUs, it will take a 2-ton HVAC unit. If you get an uneven number, such as 2.33 for a 28,000 BTU load capacity, round up to a 2.5-ton unit.

What size air duct do I need?

To calculate CFM, you need to know the size of your heating or cooling unit in tons. Multiply this number by 400, which is the average output of an HVAC unit. Then divide by the total square footage of your home. This will give you the multiplier for all your rooms’ CFM.

How do you read duct size?

If you have round ducts, you simply measure the diameter (D) of the duct (the cross-section). This will tell you what size duct to purchase to replace it. If you have rectangular or square ducts, measure the width (W) and height (H) of the duct and use these figures when buying new parts.

How do you make exposed ductwork look good?

If you don’t want to go through the hassle of covering up your exposed pipes and ducts, but you also don’t want them to draw too much attention, simply paint them the same color as the ceiling or walls that surround them. Painted in a unifying hue, they will blend in and become part of a cohesive background palette.

How are duct boots measured?

1. Remove your existing vent cover. Note: Do not measure your existing cover.
2. MEASURE THE DUCT OPENING IN YOUR FLOOR, WALL OR CEILING. (LENGTH IN INCHES -BY- HEIGHT IN INCHES) THIS IS YOUR DUCT OPENING SIZE. …
3. Match the duct opening size to the corresponding vent cover size listed on the product listing.

Where is a boot in a duct system?

Boots, Registers and Line Attachments For example, your bedroom likely has a supply vent blowing air into it. Inside the wall, floor or ceiling, that vent contains a piece of metal hardware called a “boot” which attaches to the duct line supplying it with air. (Filtered return lines function in the same way.)

Is round or square duct better?

Round air ducts are best suited for high-pressure HVAC systems. Their design creates less friction, allowing air to flow easier throughout the building. Rectangular ducts aren’t as efficient with their airflow, which means they can create more harm than good in a high-pressure system.
