Common studs are vertical members which transfer loads vertically to bottom plates. They are usually evenly spaced to suit loads, lining and cladding fixing. Spacings are generally 450 or 600 mm, depending on the roof cladding. Common studs should be reinforced at points of concentrated loads. …

What is a common stud spacing?

You may wonder, how far apart are studs in my home? They’re always spaced either 16 or 24 inches on-center (measured from center to center) along the wall and run between the floor and ceiling. Drywall or lath (for plaster walls) attaches to the edge of the studs.

What are the different types of stud?

• King stud: On either side of a window or door, running from the bottom to top plate.
• Trimmer or jack: On either side of a window or door, running from the bottom plate to the underside of a lintel or header.
• Cripple stud: Either above or below a framed opening.
• Post or column: Group of studs fastened side-by-side.

How long is a common stud?

Two-by-six and two-by-four are the most common dimensions of wall studs. Standard walls of 8 feet have wall studs that are 92 inches. The studs are 104 1/2 inches in homes with 9-foot walls. Pre-cut studs are used in homes with a 10 foot wall.

How far apart are studs in old homes?

You may be asking, “How far apart are studs?” Typical stud spacing is 16 inches on center and even on older houses is rarely greater than 24 inches on center. Most electrical boxes for switches or outlets are attached to a stud on one side.

What's the longest 2x6 you can buy?

Subject: RE: Long lumber? 2×4 20′ is typically longest length. 2×6-2×12 you can get up to 28′ in a full service lumber yard.

How far should a screw go into a stud?

You don’t want to go deeper than necessary into the stud (assuming plumbing and electrical was run to code) so assuming North American building standards and materials, you want 1-5/8″ of screw in from the face of the drywall, or about 1″ of screw anchored into the stud proper.

How long is a 10 foot stud?

Wall studs for standard walls of 8 feet are 92 5/8 inches. In homes with 9-foot walls, the studs are 104 5/8 inches. Homes with a wall height of 10 feet use pre-cut studs at 116 5/8 inches.

Why are some 2x4 92 5 8?

To create a wall that will match up with a typical 4×8 sheet of drywall, the studs need to be a little shorter — 92 5/8” to be exact. This also allows a little extra room along the bottom of the wall for variances in flooring and to keep the drywall from soaking up moisture from the floor.

How do I know what kind of stud?

To determine whether the stud type is metal or wood, it is best to use a magnetic stud finder. The finder will only stick to a screw, but you should be able to feel a weaker attraction along the stud if it is steel. If it is wood, you won’t feel any attraction in between the screw heads.

Article first time published on

How many types of studs are there?

For studs that are not completely threaded, there are two types of studs: full-bodied studs, and undercut studs. Full-bodied studs have a shank equal to the major diameter of the thread. Undercut studs have a shank equal to the pitch diameter of the screw thread.

What is a C stud?

GypFrame C-Stud is the type of Gyproc metal product that fit for the vertical support in wall framing. This type of GypFrame provides easy routing of services through a partition.

Do older houses have studs?

Most old houses do have stud walls. Back then, stud walls were made out of wood which has been a widespread resource up to this day. The abundance of wood and the limitations of transportation and workers who have worked with metal lead to stud walls being a prominent feature in most houses and low buildings.

Are electrical outlets on studs?

Often times, locating studs is as easy as finding your electrical outlets and light switches. Standard outlets and light switches are fastened to studs. … The standard space between studs is 16 or 24 inches, although in some homes, the distance between studs is less regular.

How do you find a stud without a stud?

1. Shine a flashlight at a steep angle against the wall. …
2. Examine the baseboard for nails or outlets. …
3. Measure 16 inches from the first stud you find to approximate the location of the next one. …
4. Drive a small nail into the wall where you believe you have found a stud.

Is it bad to drill into a stud?

Drilling a hole in a stud for wiring will weaken the stud – by how much is a function of the size of the hole drilled and where the hole is drilled in the stud. From an electrical perspective drill the hole in the center of the stud and make the hole just big enough that you can easily pull the wire through it.

Do screws weaken studs?

As far as structurally sound, your fine. Your screws are basically at max capacity. Splitting would be the only concern. As long as they are centered and you didn’t go crazy, like 1 screw every 4 inches.

How much weight will a screw in a stud hold?

A screw in a stud can hold between 80 and 100 pounds. Be sure to distribute the weight across as many as you can. The easiest way to increase the amount of weight a screw in a stud can hold is to simply double up.

Can I span 8 feet with a 2x6?

So, a 2×6 spanning 8 feet should be able to support (8×53) 424 pounds along its length. A 2×6 on flat will carry about 4 pounds per linear foot or around 7% of one on edge. On an 8-foot span, that would be about 30 pounds in one location before bending beyond acceptable deflection values.

Will a 2x6 span 12 feet?

A 2×6 can support up to 50 pounds per square foot of weight without sagging with a maximum span of about 12 feet when spanning a distance horizontally, with the 2×6 standing in a vertical position.

How long can you buy a 2x4?

2×4 studs are typically 8 feet long, to match the standard length of a sheet of plywood or drywall. You can also find 2×4 studs that are 92 ⅝” long, which allows builders to account for the thickness of the boards that run along the top and bottom of the wall.

What is the main difference between pressure treated and standard?

Pressure treated lumber is no stronger than untreated lumber. The difference between the two is that pressure treated lumber will resist the elements better than untreated due to chemical preservatives added, and so will maintain its integrity in conditions that would cause normal wood to rot.

How tall are framing studs?

STUD SIZE (inches)BEARING WALLSNONBEARING WALLSLaterally unsupported stud heighta (feet)Laterally unsupported stud heighta (feet)2 × 3b—102 × 410143 × 41014

What is the longest 2X12 you can buy?

RE: Maximum Lengths for Sawn Lumber 2X12 22 feet long should be availbe by special order at any contractor’s yard.

How long should wall studs be?

Wall studs are dimensional boards, precut for framing walls. An 8-foot stud is 92 and 5/8 inches long, which is more than 3 inches short of 8 feet, but the standard interior wall also consists of a floor plate, which is 1 ½ inches high, and two ceiling plates that add an additional 3 inches to the wall height.

Are studs wood or metal?

Although most new homes in North America are framed with wood, steel walls studs are growing in popularity. They cost about 30 percent more than wood, but have some advantages: They’re lighter, straighter and offer more variation in length and width.

How do I know if I can drill into a wall?

To find a safe spot to drill into, you need to move the device across the wall with equal pressure. Always keep in mind that you should only move it along the x-axis. So, if you are moving the device horizontally across the wall, you should grip the device from below.

What is a tap end stud?

Tap End Stud Bolts are threaded rods with short thread length at one end, called the tap end for engagement with tapped machine hole, while the other end is longer for engagement with nut. Tap end studs are special stud bolts required for custom bolting requirement.

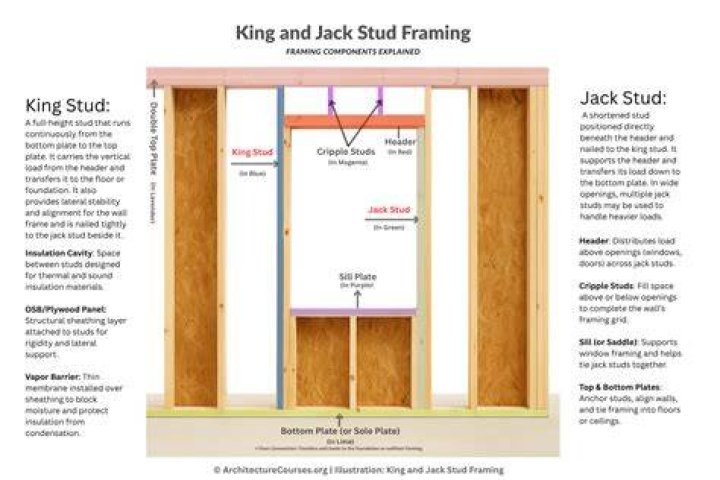

What's the difference between a jack stud and a king stud?

A king stud is one that runs continuously from the top plate to the bottom plate. The jack stud is nailed to the king stud, but it’s shorter as it supports the structural header or the flat 2x material that you use for a door in a non-load-bearing wall.

What is a partial stud?

Partial Thread Studs are used in all types of applications. They can be welded to a flat surface, or to the inside or outside of an angle. Length: Length is listed before weld. Studs diameters 1/2” and below will be approx. 1/8” shorter after welding.

What is a metal stud?

The Pros and Cons of Metal Studs Production of metal studs involves forming the studs from strips of galvanized steel in cold rolling machines. Metal studs used for structural building components utilize heavier gauge metals than the metal studs for non-load bearing walls.
