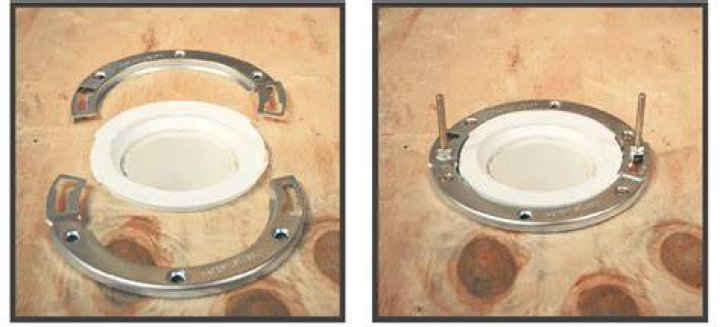

A toilet ring, also called a closet flange, is installed over the drain opening in the floor directly beneath your toilet. It connects the toilet bowl to the sewer drain. … The screw holes enable you to mount it to the subfloor, while two grooves hold the flange bolts, which secure the toilet to the floor.

What is the purpose of a closet flange?

The toilet flange, also known as a closet flange, is the part of the toilet that secures the unit to the floor and connects to the drain pipe. Usually made of PVC, rubber or metal, this piece is circular in shape and usually secured in place with a few bolts.

What are closet rings made of?

Closet rings (closet flanges) for water closets or similar fixtures shall be of an approved type and shall be copper alloy, copper, hard lead, cast-iron, galvanized malleable iron, ABS, PVC, or other approved materials.

Do I need a closet flange?

Without a closet flange, a toilet will not sit securely in line with the drain pipe. Yes, in theory, the toilet could be attached directly to a floor or subfloor, but this would only last so long before leaks and water-soaked rotting wood would need to be repaired or replaced.

Can toilet be installed without flange?

2 Answers. The flange and accompanying bolts hold the toilet firmly to the floor and keeps the seal between the toilet and the floor. Without the flange or if it is broken, he would have to attach the toilet to the subfloor with wood screws, and if the floor is rotting out, those won’t last long.

Are toilet flanges glued?

In addition to being glued to the waste pipe, toilet flanges are typically attached to the bathroom subfloor with screws. Often, there are four screws that attach the flange to the subfloor.

What does the toilet sit on?

A toilet flange (also known as a closet flange from the term “water closet”) is simply the ring that sits on the floor beneath your toilet and extends into the drain pipe. It is usually made from PVC, but can also be metal or rubber.

What fits between a closet flange and toilet bowl?

is used to seal the fit between the toilet and the closet flange, and the toilet is bolted to the steel ring and not to the bathroom floor.

What is the pipe a toilet sits on called?

In plumbing, a closet flange (also known as a toilet flange) is a pipe fitting (specifically, a type of flange) that both mounts a toilet to the floor and connects the closet bend to a drain pipe. The name comes from the term “water closet”, the traditional name for a toilet.

Who invented wax ring on toilet?

Every toilet has one; it’s a preformed wax ring that seals the toilet to the plumbing as it passes through the floor. Master Plumber William H. Harvey Sr. came up with the idea in 1944, and that one simple invention spawned an Omaha company that today sells more than 3,500 plumbing products nationwide.

Article first time published on

What size are toilet flanges?

The most common and readily available toilet flange is the 4 x 3-inch size. This pipe is 4 inches wide at the top but only 3 inches wide at the bottom. The 3-inch bottom is the correct size for fitting the schedule 40 pipe most frequently used in home drains.

What is a sanitary T?

A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. … This down-swept feature molded into the tee assists the liquid in its travels toward a drain pipe. The uppermost fitting of the tee is connected into the building’s plumbing ventilation system.

Does toilet flange go inside or outside pipe?

Install a toilet flange on the outside. This can be done with a hammer and chisel. If the flange is cast iron with a rubber gasket, you should be able to remove the cast iron with a hammer and chisel, remove the rubber gasket with a sharp knife, then replace the gasket and the flange.

What type of toilet flange is best?

Corrosion and rustproof stainless-steel flanges offer more durability and better sealing than PVC flanges. Like brass and copper toilet flanges, stainless steel flanges are more expensive than plastic toilet flanges.

Can you install a toilet on a concrete floor?

You can install a toilet on a concrete floor. It may seem intimidating, but installing a new toilet can be a DIY project that you can be proud of. First, you’ll need to think about the type of floor you’ll be installing the toilet on.

How long after a new toilet is installed can you use it?

The best person to ask is whoever installed it. Most people ask how soon they can use it, not how long! It can be used as soon as the water supply is turned on. Toilets are bolted to the floor flange, so there is nothing to dry or cure.

Can you put 2 wax rings on a toilet?

You can certainly install a toilet with multiple wax rings, in fact sometimes it is necessary to make sure you don’t have a leak. … You can buy an extra-thick wax ring, or you can just buy two rings and stack one on top of the other.

Is there something better than a wax ring?

For plumbers interested in a mess-free option, wax-free toilet seals check this box. These seals affix to the toilet using a strong adhesive. There’s no wrangling the ring in into place.

Can you put a new toilet flange over an old one?

Either slide the new closet flange bolts into the old flange before adding the extender or add them after you adhere the extender to the old flange. Consequently, we chose to add one of the bolts to the old flange first since it was a tight fit. Add metal washers and nuts to the closet flange bolts.

Why are toilet holes so small?

The tiny hole in the bottom of the bowl is a venting hole which goes to the tank. Debris and sewage can enter this hole and make its way up to the tank which prevents a consistent flush. There are different plungers suggested for each type of toilet. Make sure you are using a plunger designed for your toilet.

What's the top of the toilet called?

Tank Lid – It’s the top most part of your toilet tank and covers the mechanisms inside your tank. Bowl – The bowl is the lower half of the toilet used to hold liquid and solid wastes prior to flushing.

What is a flanges in plumbing?

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

Should closet flange be flushed with floor?

5 Answers. The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too.

Why do toilet wax rings fail?

What causes toilet wax rings to fail? … First and foremost, a loose toilet will often cause a wax ring to lose its seal and leak. Next, in the event that you have to replace your toilet, your wax ring will lose its seal, so you’ll need to install a new one along with your new toilet.

What is the best wax ring for a toilet?

• NEXT BY DANCO Perfect Seal Toilet Wax Ring, Black, and Blue, 1-Pack (10718)
• Fernco Inc. FTS-3 3-Inch Wax Free Toilet Seal.
• Korky 6000BP Universal Toilet WaxFree Seal with Hardware.
• Aqualoq Masterseal Universal Wax Free Airtight Toilet Seal.
• Danco 10879 All-in-One Toilet Installation Kit.

Is 3-inch pipe OK for toilet?

In new construction, 4-inch drains can be installed from every toilet, or you can run a 3-inch drain line from a toilet to the home’s main 4-inch drain pipe — the line running from the house to the sewer or septic system. Older homes may have only 3-inch drains, so that’s what you have to work with.

What size toilet wax ring do I need?

To determine the correct width for your wax ring, simply turn your toilet bowl on its side, and measure the opening on the bottom of your toilet, called the “elbow neck.” Whatever width this measurement is, use that width wax ring. E.g. if the elbow neck measures 3 inches, use a 3-inch wax ring.

Are toilet flanges standard?

The standard flange size is 3 inches in diameter. The standard plumbing hole for a toilet is the flange, the waste pipe that fits through a hole in the floor.

What is a test tee plumbing?

This versatile tee allows you to test the plumbing system for leaks and provides a cleanout port in case of blockages — all from the same port.

What is sanitary elbow?

A sanitary elbow is a kind of sanitary fitting installed between two lengths of pipe or tubing to allow a change of direction. While these corner fittings are usually a 90° or 45° angle, 22.5° elbows are also available. The ends may be machined for butt welding, threaded, or socketed.

How do you measure toilet flange?

The Distance To Set The Toilet Flange From The Back Wall. You’ll want to set the center of the water closet flange 12 inches from the finished back wall. Don’t measure from the base molding! Take this measurement from the finished wall.
