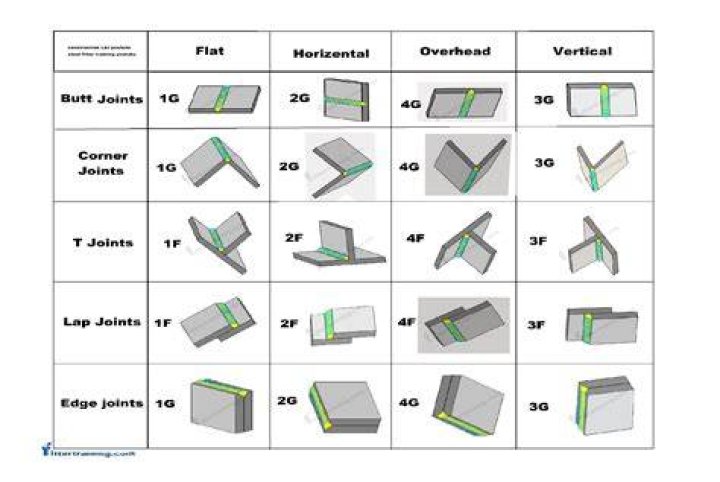

4F denotes the overhead position of welding fillets while 4G denotes the welding of grooves in the same position.

What is g3 welding?

Welding in a 3G position means moving the torch vertically, up and down across a surface. This is in contrast with 1G (flat surface welding), 2G (horizontal welding), and 4G (overhead ceiling welding).

What is 6G welding?

In welding, a 6G position requires one pipe to be positioned at a 45-degree angle to the other. Both are horizontal. This presents a very challenging position for a welder, who uses all his skills and a variety of body positions to accomplish the most difficult weld in the 6G join: the overhead weld.

What is 5F in welding?

A 5F weld joint is a tube welded to a plate where the axis of the tube is horizontal and the plate is vertical. A 5F weld joint is a bit more challenging than a 2F. … and the thing that makes it difficult is mainly body positioning.

What is uphill welding?

As you may know, we use either downhill or uphill welding in the vertical position. Downhill welding is carried out with a downward progression, conversely, uphill moves in an upward progression. Downhill welding is often used for fillet welding of steel sheets due to the following advantages over uphill welding.

What is 5G and 6G welding?

There are mainly four types of pipe welding positions- 1G – Horizontal Rolled Position. 2G – Vertical Position. 5G – Horizontal Fixed Position. 6G – Inclined Position.

What is the easiest welding position?

Also referred to as a “downhand” position, the flat position weld is the easiest and often the first weld that new students learn. The metals to be joined are placed flat, and the welder passes the electric arc over them, moving across the workpiece in a horizontal direction.

Can you weld multiple passes?

In multi-pass welding, the weld metal and the associated heat-affected zone are subjected to repeated thermal cycling from successive deposition of filler metals. … Welds and the locked-in residual stress in the welded area often initiate the defect which finally results in failure.

What is a 3 G weld test?

The 3G welding certification qualifies a welder to weld flat, horizontal, and vertical or 1G, 2G, and 3G positions, also includes the 1F, 2F, and 3F positions without having to take the 1G and 2G certification. This one test qualifies you for three positions. These are the positions most commonly used in welding shops.

What are three types of welding?

Three of the most common are Arc, MIG (Metal, Inert Gas) or GMAW (Gas, Metal Arc Welding), and TIG (Tungsten Inert Gas) welding. In order to know which process is best for the particular job you’re working on, here’s what you should know about each of them. Arc welding is the oldest of these three welding processes.

Article first time published on

How many passes is a 3/8 fillet weld?

so by this theory 3/8″ is two/three pass, 1/2″ is a 4 pass e.t.c. If the fillet weld ends up larger than 1/2″ then I would normally use a butt weld instead as it is usually cheaper.

What are the 5 basic types of welding joints?

• Butt joint.
• Tee joint.
• Corner joint.
• Lap joint.
• Edge joint.

What is the hardest weld?

What’s the hardest type of welding to learn? TIG welding is the hardest form of welding to learn for a variety of reasons. The process of TIG welding is slow and takes time to get used to as a beginner.

What is G welding?

A number is used to define the position, and an F for Fillet or G for groove refers to the type of weld. An architect’s blueprints would indicate the welding symbol. 1 refers to a flat position – either 1F or 1G. 2 refers to a horizontal position – either 2F or 2G. 3 is a vertical position – either 3F or 3G.

What does 7018 welding rod mean?

The 7018 Welding Rod The “E” in E7018 electrode indicates a tool used for an arc-welding process. The 70 means it makes welds that are very strong (70,000 psi). The 18 means two things: The “1” means the electrode can be used in any position, and the “18” means low hydrogen and usually DC current.

Why do pipeliners weld downhill?

On thinner-wall pipe, downhill welding enables operators to run “hot and fast,” increasing productivity compared to welding uphill, which is required on thicker wall pipe to increase heat input to ensure complete penetration.

Should you push or pull when MIG welding?

When MIG welding mild steel, you can use either the push or pull technique, but note that pushing usually offers a better view and enables you to better direct wire into the joint.

Is it better to weld uphill or downhill?

In downhill welding, you weld from the top down. Uphill is considered stronger, but as it takes longer, the potential for burn through is greater. It is better for thicker steels, where downhill is adequate for thinner steels. Both techniques require practice, but can produce a good looking, sound weldment.

What is the ideal arc length?

As a good starting point, arc length should not exceed the diameter of the metal portion (core) of the electrode. For example, an 1/8-inch 6010 electrode is held about 1/8 inch off the base material. … Too long of an arc length will create excess spatter in the weld joint. There is also a high potential for undercut.

Is Arc welding safe?

Properly installed and used the arc welder is very safe, but if used improperly the operator can be exposed to a number of hazards including toxic fumes, dusts, burns, fires, explosions, electric shock, radiation, noise, and heat stress. Any of these hazards can cause injury or death.

Do you stick weld left to right?

Make sure that you can see the electrode and the bead as you move across the joint. A good rule of thumb is that a drag weld should move toward your welding hand, while a push weld should move away from the welding hand. That is, a right-handed welder should drag from left to right and push from right to left.

Why electrode is coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

How much do 6g welders make?

The national average salary for a 6g Welder is $44,546 in United States.

How do you find the arc length of a weld?

In general, the arc length is 0.10 inch and this measurement is taken as a base. One half of the weld penetration is combined with the base measurement and this results in the arc length for a certain amperage.

What is 3G and 4G welding?

By taking the 3G and 4G welding certifications together, it certifies you to weld plate in all positions, and to do fillet welds on pipe with a minimum diameter of 24 inches. … When doing horizontal and overhead welds they are typically done in stringer beads verses flat and vertical welds using weave welds.

What is the final pass of a weld called?

cover pass. the final weld pass of a multiple-pass weld that forms the weld face.

What are groove welds?

0 Standard Welding Terms and Definitions as “A weld in a weld groove on a workpiece surface, between workpiece edges, between workpiece surfaces, or between workpiece edges and surfaces.” A weld groove is defined as “A channel in the surface of a workpiece or an opening between two joint members providing space to …

What is the purpose of using ceramic backup tapes on groove welds?

This ceramic backing tapes is widely used to maintain and protect backside surface of any object being weld. Also, this tape easily 2 side welding process into single side process.

Which welding is strongest?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

Can you teach yourself welding?

Teaching yourself to weld is not hard if you want to weld for home improvements and do basic welding repairs. If you know how to use other power tools, you can learn basic welding too. … Starting with an easy welding process helps too.

Which type of welding pays the most?

1. Welder helper. National average salary: $13.53 per hour. …
2. MIG welder. National average salary: $16.24 per hour. …
3. Fabricator/welder. National average salary: $17.76 per hour. …
4. Welder. National average salary: $17.90 per hour. …
5. Welder/fitter. …
6. Structural welder. …
7. Pipe welder.
