Variable Air Volume Control System Variable Air Volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. … The VAV Zone Controller has a built-in actuator and maintains zone temperature by operating the terminal fan and regulating the flow of conditioned air into the space.

What control variable is used to modulate fan speed in a VAV system?

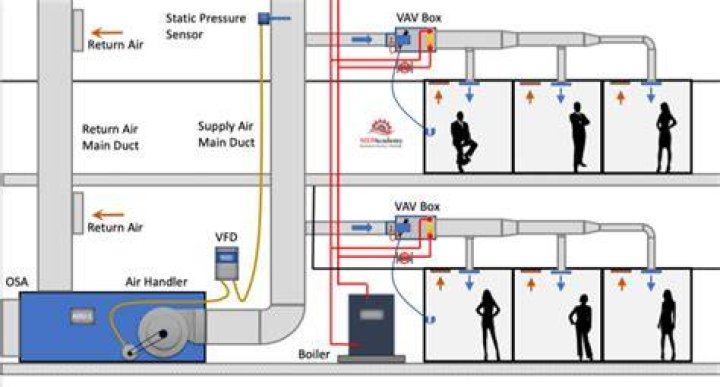

As a result, the total supply airflow provided by the central air handling unit must also vary to maintain sufficient airflow through each VAV box. Airflow is typically controlled using a variable frequency drive (VFD) to modulate supply fan speed and vary system airflow.

Which damper used in VAV?

A VAV terminal unit, often called a VAV box, is the zone-level flow control device. It is basically a calibrated air damper with an automatic actuator.

What control strategy saves energy in a VAV system?

reduces the number of system operating hours and saves energy by avoiding the need to maintain the indoor temperature at occupied setpoint even though the building is unoccupied. A related strategy is optimal stop.

Do VAV boxes have filters?

Each VAV terminal box is connected to a supply air source. This is a ducted connection that provides air from an AHU. Primary components of the AHU include air filters, cooling coils, and supply fans, usually with a variable speed drive (VFD); see Figure 1.

Do VAV boxes require power?

POWER SUPPLY IS INSTALLED ARE NOT REQUIRED WHEN THE ENCLOSURE & BACKPLATE LOCATION(S). NUMBER OF BOXES & MECHANICAL CONTRACTOR FOR SUPPLY(S). COORDINATE WITH SUPPLY & INSTALL POWER MECHANICAL CONTRACTOR TO VAV BOX 24V POWER SUPPLY(S).

How do VAV boxes work?

Typically, a VAV box consists of a few simple parts: the damper, the controller/actuator, and perhaps a coil for heating and cooling via electricity or water pumps. As the air passes through these boxes the actuator modulates the damper position which allows different amounts of airflow into the zone.

Is VAV energy efficient?

are built with multiple mechanisms for compensation, making the end result quite robust in terms of comfort. Unfortunately, these compensations generally cause additional energy consumption. As a result, standard VAV design is not robust in terms of energy efficiency.

Why is a VAV system efficient?

Most buildings operate the majority of time in turndown and it is during turndown that VAV systems save energy because they match the reduced loads – both the exterior loads, such as temperature and solar, and the interior loads of occupancy, plugs, and lighting. Also the energy penalty of reheat is during turndown.

How long does it take to install a VAV box?

The estimated installation rate is 3.5 man-hours17.

Article first time published on

What controls a VAV box?

The traditional VAV box consists of VAV box with an integral damper and is controlled by thermostat. This is the most basic type of VAV box and is also called a single duct terminal unit. If a building only requires air conditioning, this VAV box is ideal.

Do VAV systems use water?

Advantages of VAV systems include the following points: VAV systems are very cost effective from a chilled-water and heating-water-pumping perspective. … This is because there is no chilled water coil at the VAV terminal and, where non-fan powered VAV terminal are used, there is no filter at the unit.

How does a volume control damper work?

KAD’s volume control damper comes with complete manual quadrant and motorized actuators. Manual dampers work exactly as they sound. The user twists a screw, which governs the flow of air to a section of pipe. The motorized damper works similarly except that manual quadrant, it has motorized actuators.

What is VRV system?

VRV system is a multi-split type air conditioner that uses variable refrigerant flow control to provide customers with the ability to maintain individual zone control in each room and floor of a building.

What is the difference between VAV and VRF?

VRF, variable refrigerant flow, is a more recent HVAC technology than VAV and uses refrigerant as its medium to heat and cool. … Whether it be a separate office or conference room, or an independent store, a VRF system allows each area or zone unique temperature control without affecting the rest of the building.

How does a VAV system with terminal reheat work?

Similar to simple shut-off system, upon a fall in space temperature, VAV systems with terminal reheat reduce the volume of the air to the space. However, once a predetermined minimum airflow is reached, heat is added to the air prior to delivery to the space.

How many types of VAV are there?

There are two primary types of VAV systems—single-duct and dual-duct.

Do fan powered boxes have filters?

With the low chance of dust circulation due to low air velocities and the increased chance of forgotten filters causing energy and comfort issues (including thermal and acoustical comfort), there is no reason for the fan powered terminal units to have filters during normal operation.

Is VAV box a damper?

Inside the VAV box, there is a damper that opens and closes to control the amount of air entering the room. If a room needs to cool further, the damper opens to its maximum position to allow high airflow and cool the room down to the appropriate temperature.

Where are VAV systems used?

Unlike CAV, the cold water flow supplied to the fan coil unit is kept constant. VAV systems achieve their full potential in applications where there a multiple zones with variable load. Some examples are malls, hotels and office buildings. VAV boxes have a role similar to the duct heaters used in a CAV system.

How do Johnson Controls thermostats work?

A Johnson Controls thermostat connects to a building’s heating and air conditioning system, and its thermometer detects the building’s temperature to control whether the furnace should activate and heat the building, or if the air conditioning should turn on and cool the building.

What are the factors you will consider in choice of air conditioners?

• Cost: It is a common practice to purchase the least expensive AC systems to save up costs. …
• Quality: …
• Size: …
• Efficient Ductwork: …
• Energy Consumption: …
• Air Quality: …
• Durability: …
• Installation:

How energy saving is achieved in the variable air volume system?

A Variable Air Volume system is a type of air-handling system that changes the amount of airflow in response to changes in the heating and cooling load. … Conversely, when warming is required the damper closes to lower cool airflow into the space and reduce air handler fan power to save energy.

How much does it cost to install ductwork in a house?

Ductwork Installation CostsNational average cost$4,000Average range$1,900-$6,000Minimum cost$550Maximum cost$12,000

What is the primary temperature you would expect to find on a VAV air conditioning system?

Traditionally, the primary supply has been at a fixed temperature and is often at about 13°C, since the original role of the VAV system was to provide only cooling to core areas in buildings.

What is VAV terminal load?

Variable air volume (VAV) systems control the dry bulb temperature inside a zone by varying the supply air volume instead of the air temperature. At full cooling the VAV terminal unit damper is fully open supplying the specified maximum design air flow rate.

What is a single duct VAV system?

The simplest and most common system—single-duct VAV—comprises a central VAV air handler and several local VAV boxes, one for each space or thermal control zone. … The air handler delivers primary air (a mixture of first-pass outdoor and recirculated return air) to the VAV boxes through a single duct.

Why is it important to maintain the airflow design to each branch in a VAV zone?

As the cooling load decreases, the VAV dampers modulate to reduce supply airflow and prevent overcooling. The partially-closed dampers increase the duct static pressure and if the fan is controlled to maintain a constant pressure in the duct, energy is wasted. to ensure that each zone can receive its design airflow.

Is a mixing box a VAV?

VAV Mixing Box – A VAV mixing box mixes air from the warm and cool air ducts of a dual-duct system. The operation sequence of a mixing box terminal depends on several other conditions such as if the air economizer is operating or if the building is primarily requiring cooling or heating.
