The Unified Thread Series is classified into coarse threads, fine threads and extra fine threads much like Metric screw threads are. UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads. UNEF: Is the symbol for United extra fine pitch threads.

What is the difference between UNC and NPT?

UNC is Unified Coarse thread , the successor to the obsolete National Coarse (NC) thread. … NPT National pipe thread is used (in the U.S.) for plumbing of water and gas pipes, and threaded electrical conduit. NPT is defined by ANSI/ASME standard B1. 20.1, American National Standard Taper Pipe Thread.

What is difference between UNC and UNF?

UNF and UNC are two symbols of Unified Screw Thread Series, which defined based on the amount of threads per inch and standardized with gauge. UNF threads are Unified fine pitch threads, while UNC threads are Unified coarse pitch threads. … coarse thread has higher strength and find thread is better for sealing.

What does UNC UNF stand for?

Page 2. Unified form thread designations are represented by abbreviations such as UNC (unified coarse), UNF (unified fine), UNEF (unified extra fine), UNS (unified special) and UN (unified constant pitch), with the thread major diameter preceding the designation for example, 9/16” UNC, 9/16” UNF.

What is UNC hardware?

UNC – Unified National Coarse Thread – comparable with the ISO metric thread.

Is Sae the same as UNC?

There are two general types of SAE bolts (sometimes referred to as machine screws). UNF (fine thread pitch) has more threads per inch than the same diameter bolt in the UNC (coarse thread pitch). Nut dimensions are maximums per SAE.

How do you read thread size UNC?

1. For example, on a #4-40 UNC-3A x . …
2. The diameter is sometimes listed as a fraction, such as ¼.

What is PF thread?

The size and number of threads are the same but application is different. In other words, the Rp(PS) is used for preventing water and gas leakage while the G(PF) is used for pipe connections. … R(PT) internal screw threads to Rp(PS) internal screw threads.

What thread has 24 TPI?

Bolt SizeThreads Per Inch (TPI)Coarse Thread UNCFine Thread UNF#63240#83236#102432

What is UNC for bolts?

UNC stands for ‘Unified Coarse‘ and is the most commonly used thread type in the United States of America. … The thread is deeper and more generic than that of a fine thread and allows for easy removal, whilst they also have a higher tolerance for manufacturing and plating.

Article first time published on

Is UNC thread same as metric?

A 1/4 UNF thread is about 14% stronger than its UNC counterpart. … The metric coarse thread is actually between UN coarse and fine thread, and the metric fine thread is finer than the UNF threads.

Are NC and UNC threads the same?

NC and UNC mean coarse thread. NF and UNF mean fine thread. NS means special thread.

Is UNC thread the same as Whitworth?

If you are struggling to find either a BSW thread (British Standard Whitworth) or a UNC thread (Unified National Coarse), it is useful to know that in almost all cases the two threads are interchangeable in practical terms.

Is UNC metric or imperial?

Both of these thread types are use for imperial thread. BSF and BSW are Britisch measurement systems, while UNF and UNC are American measurement systems. BSF and UNF are the fine thread systems, while BSW and UNC are the coarse thread systems.

Are external threads A or B?

The ‘A’ designates an external thread, and ‘B’ designates an internal thread.

What does UNC 2B mean?

Example: #6-32 UNC 2B (major diameter: 0.1380 inch, pitch: 32 tpi) Unified Screw Threads — UNC, UNF and UNEF. Major diameter. Dmaj (inch, mm) Thread density (d, threads per inch) and thread pitch (p)

What does UNC mean on a blueprint?

The [U.S.] National Coarse series of pre-1949 corresponds today to the Unified National Coarse (UNC) of the Unified Thread Standard.

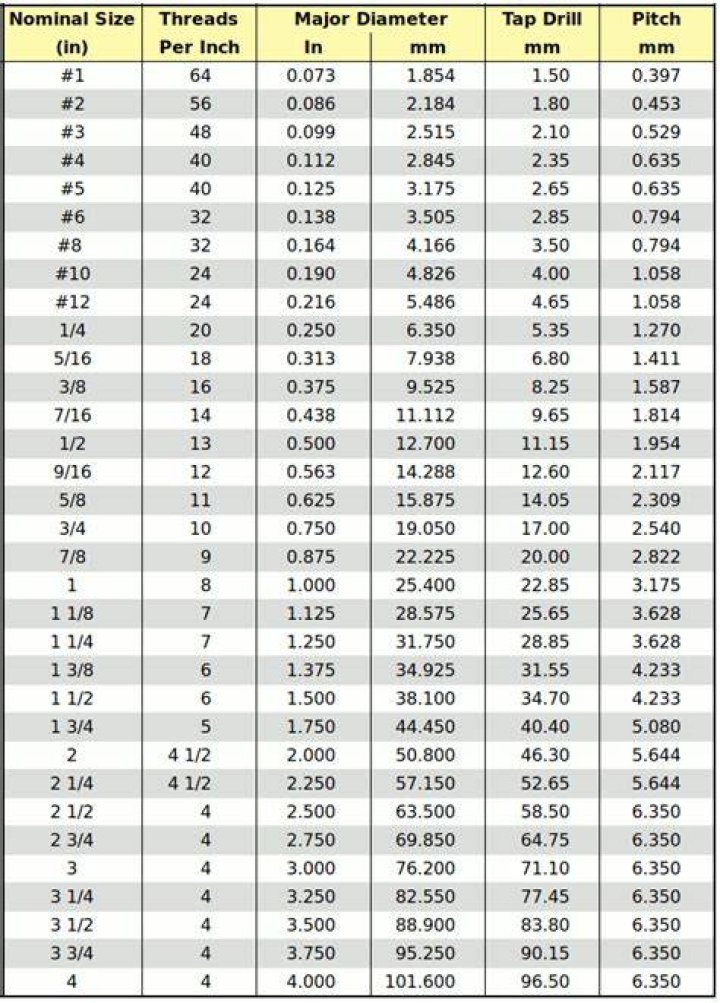

What is UNC bolt size?

ThreadMajor DiameterPitch Diameter40.11200.095850.12500.108860.13800.117780.16400.1437

What are SAE threads?

What’s SAE thread? SAE Thread Type – Straight Thread O-Ring Boss. This is a highly reliable and reusable thread type. While some thread types require the threads of the male and female end to crush together to form a seal, the O-Ring on this thread type prevents that. Dash Size.

What does SAE threads stand for?

What is SAE thread? SAE stands for the Society of Automotive Engineers. SAE fittings are mostly used in refrigeration, automotive piping systems and other low-pressure applications. It’s common for copper tubes to be used with SAE threads. SAE Flare (SAE J512)

What does SAE and USS stand for?

USS= United States Standard (developed by the Navy) SAE= Society of Automotive Engineers.

What thread is 12 TPI?

1. 12-UN – Unified Extra Fine Thread, which is used for special purposes. The flank angle is 60°.

Is 18 thread coarse or fine?

Coarse Thread Series – UNCFine Thread Series – UNFNominal Size and Threads Per In.Basic Pitch Dia.Nominal Size and Threads Per In.9⁄16 – 120.50849⁄16 – 185⁄8 – 110.56605⁄8 – 183⁄4 – 100.68503⁄4 – 16

What thread is 13 TPI?

TPIPitch in InchesPitch mm130.076921.95412.70.078742.000120.083332.11711.50.086962.209

What is G1 pipe thread?

British Pipe Thread ( Whitworth Form) — Parallel (BSPP/BSPF)Thread DesignationNominal SizePitch mm pG1/81/8″0.907G1/41/4″1.337G3/83/8″1.337

Is BSP same as G thread?

Is G thread the same as BSPP? The two types of thread are the same parallel straight. BSPP is the British Standard Pipe Parallel thread and it is also denoted by the letter G (ISO standard). Therefore, BSPP is the same as G.

What are G1 4 threads?

G1/4 is a straight thread (no tapering). This type does NOT seal in the threads, which is why you ALWAYS see G1/4 barbs with an o-ring. The o-ring provides the seal between the barb and threading. This thread type is easier to use because it provides a much more consistent seal when compared to NPT.

What does UNC 3B mean?

¼ -20 – UNC -3B –LH means this is a ¼ inch diameter thread with 20 thread per inch, manufactured in accordance with Unified National Coarse Standard. The thread is internal and precise and also left handed.

What does 6H mean on a thread?

m8 means metric thread 8mm of ISO standard and 6H refers to tolerance of threaded hole (know more about it in ISO 2768)

What thread series is a 3/8 24 tap?

THREADSIZEDRILL DIAMETER Coarse ThreadTAP DRILLSIZE3/8-24.3320’Q’7/16-20.390625/641/2-20.453129/649/16-18.515633/64

What does N mean in threads?

In almost all thread series, the number of threads per inch decreases as the diameter increases. So for large bolts three series were defined in which all diameters have the same pitch; they are simply lists of standard diameters. …
