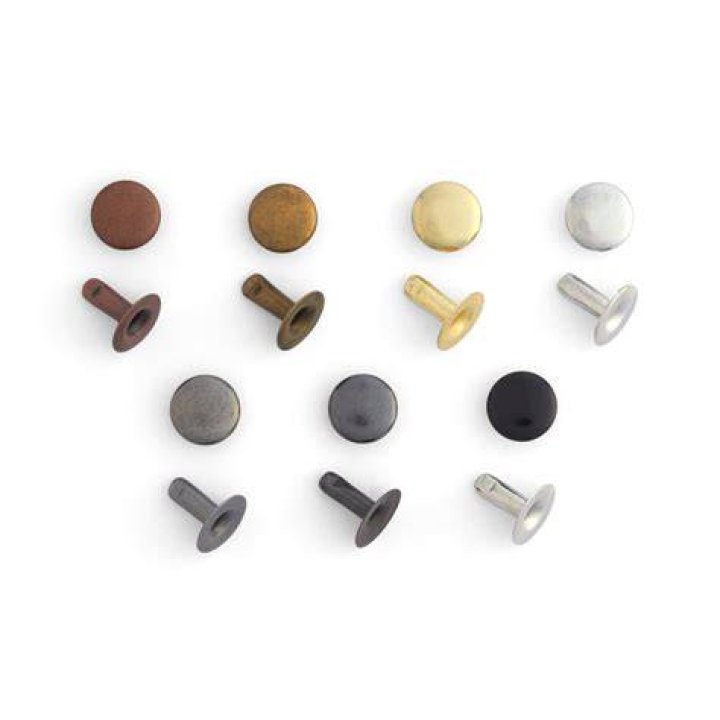

What are rapid rivets
Sarah Cherry A compression rivets, also known as a speedy rivet or rapid rivet, is most often utilized in clothing, luggage, hand bags, and textile applications. … The impact/pressure will compress the cap and stem (hence, “compression rivet”) to securely the material.
What is a quick rivet?
A compression rivets, also known as a speedy rivet or rapid rivet, is most often utilized in clothing, luggage, hand bags, and textile applications. … The impact/pressure will compress the cap and stem (hence, “compression rivet”) to securely the material.
What are tubular rivets?
Semi-tubular rivets (also known as tubular rivets) are essentially the same as solid rivets, but with a shallow hole at the tip, opposite the head. This hole causes the tubular portion of the rivet (around the hole) to roll outward when force is applied.
How many different types of rivets are there?
There are four basic types of rivets; tubular, blind, solid and split.
What are blind rivets?
Pop rivets, also known as blind rivets, are a type of rivet. They are used in applications where there is limited – or no – access to the rear side (blind side) of the parts to be joined.
What is a buck rivet?
A bucked rivet is a round fastener that attaches two or more pieces of metal together. … The rivet’s tail (blunt end) is backed up by a bucking bar that acts as an anvil while the rivet gun and set are acting as a hammer.
What is the strongest rivet?
Also, aluminum rivets with aluminum mandrels are the least strong; aluminum rivets with steel mandrels are stronger; steel rivets with steel mandrels are stronger still; and stainless steel rivets with either steel or stainless steel mandrels are the strongest.
How do you set rivets in leather without a rivet setter?
If you don’t have the rivet setter, however, or you would rather have flat-topped rivets, you can just set them on a hard, flat surface with a hammer. The back of the rivet setting base, or your quartz slab works well for this.
What is the most common type of rivet?
Solid rivets may be the most common type of rivet. They are versatile and simple to install, and are often used in applications where reliability and safety are important.
Are double cap rivets strong?
For dog collars, we use the double cap rivets which are even stronger than the rapid rivets. Our tubular rivets are even stronger than the double cap rivets. We use tubular rivets for industrial applications as well as copper rivets with washers which are the strongest.
Article first time published on
Why do my rivets keep bending?
Make sure your stem isn’t too long. Instead of the stem closing around itself, it will slip and bend diagonally making it so your rivets don’t actually close and the caps no longer line up. There’s two easy fixes for having too long of stems. You can either cut them and shorten them to the correct length.
How do you size semi tubular rivets?
The rivet shank diameter can be determined by comparing it to the thickness of the material stack up. Optimally, the ratio between the shank diameter and part thickness should between 1:1 and 1:3 for metal parts (closer to 1:1 for plastic parts).
What is a split rivet?
Split rivets, also known as bifurcated rivets, are a type of self-piercing rivet that are most often used to join softer materials such as textiles, leather, plastic, or wood. … Common uses for split rivets include the production of leather goods, clothing, cloth or soft-sided carrying cases, and similar applications.
How do you use Hobby Lobby rivets?
SKU: Nickel Rivets can be used for all of your crafty needs! Mark your fabric, cut a hole with an awl, place a rivet in the hole, and lightly press the cap onto the rivet shaft – it’s that easy! Take care not to press too hard, as it will damage the rivet.
What is the difference between a rivet and a blind rivet?
Blind rivets, a.k.a. break stem rivets, are tubular fasteners with a mandrel through the center. … The blind end expands, and the mandrel is snapped off. Unlike solid rivets, blind rivets can be installed in joints from only one side of the part—making them “blind” to the opposite side.
What is the difference between pop rivet and blind rivet?
Pop rivets are used in a blind setting like blind rivets, but the material application is a little different. It can be used with plastic, metal, and wood while offering a longer-lasting setting than traditional blind rivets.
Can you rivet aluminum to steel?
Can you use aluminum rivets on steel? Yes You can. They are cheap, effective and low cost to apply when compared to a connection bolt.
Can you install rivets without a rivet gun?
To install rivet nuts without a tool, you will still need more than just your bare hands. You will also need a bolt that 1) has its own nut, and 2) can fit into the rivet nut. … Insert the bolt as far into the rivet nut as you can, then manually screw it in until the nut and washer stop you from screwing any further.
What rivets to use on leather?
Types of Leather Rivets Rapid rivets (single cap rivets) are the most versatile and commonly used in leathercraft projects. Double cap rivets are a more heavy-duty alternative, and are finished with a cap on the bottom as well as the top.
Can you rivet fabric?
A rivet is ideal when you have so many layers of fabric your sewing machine can’t cope – the perfect solution for bag making and bag handles.
What type of rivets are used on aircraft?
Two of the major types of rivets used in the aircraft are the common solid shank type, which must be driven using a bucking bar, and the special (blind) rivets, which may be installed where it is impossible to use a bucking bar. Solid shank rivets are generally used in repair work.
Can a rivet be too long?
It differs from grip range (which will be explained next), but is an important measurement when considering clearance on the blind side of the material being fastened—a rivet that’s too long may not properly fit or could negatively impact whatever resides behind the hole.
Is rivet stronger than welding?
No matter what you do, your rivets will be in plain sight. … Last, but not least, generally, riveting is not as strong as welding. If you need the two parts to be capable of withstanding forces that draw the pieces apart, riveted joints will be more likely to fail compared to a properly welded joint.
Are bolts stronger than rivets?
For typical workshop applications, where pop rivets are usually used, threaded fasteners will provide superior strength. Pop rivets use a hollow shaft, reducing their ability to resist shear loads. … By contrast, solid rivets are perhaps the strongest mechanical fastener available.
What size rivets does Airstream use?
1/4″ rivets are typically the correct length for clinching up to two sheets of aluminum.
What are the various types of rivet heads?
Following are the different types of Rivets: Snap head or cup head rivets. Pan head rivets. Conical head rivets. Countersunk head rivets.
How do I choose the right size rivet?
The length of the rivet should be equal to the thickness of both objects you are fastening, plus 1.5 times the diameter of the rivet’s stem. For example, a 1/2-inch diameter rivet being used to fasten two one-inch thick plates will have to be 2 3/4 inches long.
What are the two most common type of rivet dies?
- #1) Solid Rivets. …
- #2) Structural Steel Rivets. …
- #3) Split Rivets. …
- #4) Blind Rivets. …
- #5) Flush Rivets. …
- #6) Friction Rivets.
How do you join two pieces of leather together?
- Prepare the Work Surface. A large, flat, open work surface is usually best for glueing. …
- Get the Right Tools. …
- Prepare the Leather Surface. …
- Prepare The Glue. …
- Apply the Glue/Adhesive. …
- Let the Contact Cement Dry. …
- Push the Leather Layers Together. …
- Secure the Leather in Place While it Dries.
How do you size leather rivets?
What Size Rivet Do I Need for Leather? It is a good idea when using single/double cap rivets to measure the thickness of the leather, then add ⅛ in. (3mm) for the post length. This will allow the rivet post to protrude all the way through the leather and the cap to fit on top of the post as they are designed to.
