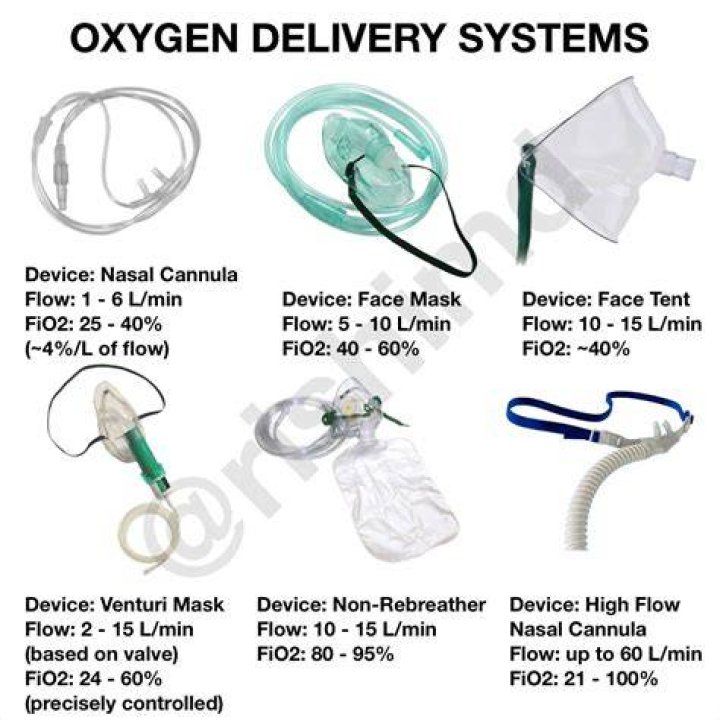

Oxygen therapy.Nasal cannulae.Hudson mask (rarely used)Venturi mask.Non-rebreather mask.Non-invasive ventilation (CPAP/BiPAP): click here for how to start patients on NIV.Invasive ventilation.

What are 2 delivery devices that can be used to deliver oxygen to a conscious patient?

Low-flow oxygen delivery systems consist of nasal cannula, nasal catheters, and transtracheal catheters. The standard nasal cannula delivers an FiO2 of 24-44% at supply flows ranging from 1-8 liters per minute (LPM).

Which is the most commonly used type of oxygen delivery system?

A nasal cannula is the most common oxygen delivery system, used for mild hypoxia (figure 4a). It delivers oxygen into the nasopharyngeal space and can be set to deliver between 1 and 6 L·min−1 (24–40% FIO2) (table 2).

What are the 3 oxygen delivery methods?

• Oxygen therapy.
• Nasal cannulae.
• Hudson mask (rarely used)
• Venturi mask.
• Non-rebreather mask.
• Non-invasive ventilation (CPAP/BiPAP): click here for how to start patients on NIV.
• Invasive ventilation.

Why are oxygen delivery devices used?

Devices in this category are used for oxygen therapy and, in some cases, non-invasive ventilation or respiratory support such as continuous positive airway pressure (CPAP) and non-invasive ventilation (NIV).

Which oxygen mask delivers the most oxygen?

The nasal cannula is most appropriate for patients experiencing minimal respiratory distress. Like the nasal cannula, the face mask mixes oxygen with room air, but it can provide higher oxygen concentrations (35% to 60%) and higher flow rates (5 to 10 liters/minute).

How is oxygen administered to a patient?

Oxygen can be delivered via nasal cannula or face mask, or via high pressure conditions such as in endotracheal intubation or hyperbaric chamber. It can also be given through bypassing the airway, such as in ECMO therapy. Oxygen is required for normal cellular metabolism.

How is home oxygen delivered?

Nasal cannula Oxygen is generally delivered through tubing and a nasal cannula, sometimes called nasal prongs. The nasal cannula end of the tubing fits into your nose, and is the most common delivery accessory. The stationary equipment for home use comes with 50-foot tubing, so you can freely move about the house.

How is oxygen delivered?

How is the oxygen breathed in? You can breathe in the oxygen from its container either through nasal cannula or a face mask. A nasal cannula can be used to deliver up to six litres of oxygen a minute comfortably. If you need a higher flow rate of oxygen, its likely you will need a face mask.

What is the most accurate oxygen delivery system?

A large nasal catheter was capable of delivering the highest inspired oxygen fraction, whereas the Venturi mask delivered the most precise inspired oxygen fraction.

Article first time published on

Which is better oxygen mask or nasal cannula?

Average SpO2 with mask on was 98% (range 96.1-99.9%), with mask off 95% (range 89.8-98.8%) and with cannula 97% (range 90.8-99.3%). We conclude that nasal cannulae are more likely to remain in position than face masks and maintain an adequate saturation in most patients.

When should oxygen be administered?

When the oxygen saturation falls below 89 percent, or the arterial oxygen pressure falls below 60 mmHg — whether during rest, activity, sleep or at altitude — then supplemental oxygen is needed.

Can we use oxygen mask with oxygen concentrator?

Their slimline shape allows you to move about and perform normal duties with little hindrance. A nasal cannula allows the delivery of oxygen concentrations of between 24 to 40% at flow rates between 1 to 6LPM – making them suitable for use with most portable oxygen concentrator units.

What are the different types of oxygen masks?

There are generally three basic styles of oxygen delivery devices based on their design: low-flow, reservoir and high-flow.

How many Litres is 40 oxygen?

At 5 LPM, the approximate FiO2 is 40%.

Can a nurse increase oxygen without an order?

Normally a standing order to get you by until the doctor gives more specific orders. Everywhere I’ve ever worked, RNs could administer O2 up to 2 lpm prn on a temporary basis (until the physician gave further orders). None without an order. Check your organization for standing orders.

What devices can be used for oxygen therapy at home?

• Compressed Oxygen Cylinders. …
• Liquid Oxygen Systems. …
• Oxygen Concentrators. …
• Intermittent-Flow Regulators. …
• Oxygen Monitoring. …
• Pressurized Oxygen. …
• Portable Oxygen Concentrators.

How long does portable oxygen last?

With a 5–6 hour lifespan, portable “E” oxygen tanks will not last long if used continuously. If you need continuous oxygen, you could get a pulse dose regulator to extend the life of your tank, but you are probably still looking at changing out tanks every other day.

What is home oxygen?

Home oxygen therapy involves breathing in air that contains more oxygen than normal through a mask or tube connected to a device in your home.

Does using oxygen make your lungs weaker?

Home oxygen therapy is not addictive and it will not weaken your lungs. You will get maximum benefit by using oxygen for the amount of time prescribed by your doctor.

What are the side effects of being on oxygen?

Oxygen therapy is generally safe, but it can cause side effects. They include a dry or bloody nose, tiredness, and morning headaches. Oxygen poses a fire risk, so you should never smoke or use flammable materials when using oxygen. If you use oxygen tanks, make sure your tank is secured and stays upright.

How much oxygen does a high flow nasal cannula deliver?

High-flow nasal cannula (HFNC) therapy is an oxygen supply system capable of delivering up to 100% humidified and heated oxygen at a flow rate of up to 60 liters per minute.

Does an oxygen concentrator deliver 100% oxygen?

An oxygen concentrator receives the ambient air, filters out nitrogen to retain oxygen, and then supplies it through the nozzle. Oxygen concentrators are usually capable of delivering 90 to 95 percent pure oxygen. They deliver air in a continuous or intermittent flow.

What are the disadvantages of nasal cannula?

Oxygen is generally provided via face masks and nasal cannula. Several drawbacks are associated with these devices, which may limit efficacy and tolerance of oxygen delivery. Usually, oxygen is not humidified at low flow, and complaints, especially dry nose, dry throat, and nasal pain, are common.

What is the best flow rate of oxygen for a patient with Covid?

NRB masks can provide supplemental oxygen up to a level of approximately 90% at flow rates approaching 15 L/min. To prevent hypercapnia, the reservoir bag must remain inflated at all times; this requires flow rates of at least 8–10 L/min.

What is the recommended oxygen flow l/min to COPD?

Oxygen therapy in the acute setting (in hospital) Therefore, give oxygen at 24% (via a Venturi mask) at 2-3 L/minute or at 28% (via Venturi mask, 4 L/minute) or nasal cannula at 1-2 L/minute. Aim for oxygen saturation 88-92% for patients with a history of COPD until arterial blood gases (ABGs) have been checked .

How much oxygen should you deliver to a child?

The general goal is to keep your child’s oxygen at a level that meets the body’s need for ox- ygen, usually 90-93% O2 sat or higher. Your healthcare provider will also help you define an acceptable lower limit O2 sat for your child.

What is oxygen administration in nursing?

Oxygen therapy is the term we use for the clinical use of supplemental oxygen. It’s indicated in patients with acute hypoxemia (PaO 2 less than 60 mm Hg or SaO 2 less than 90%) and those with symptoms of chronic hypoxemia or increased cardiopulmonary workload.
