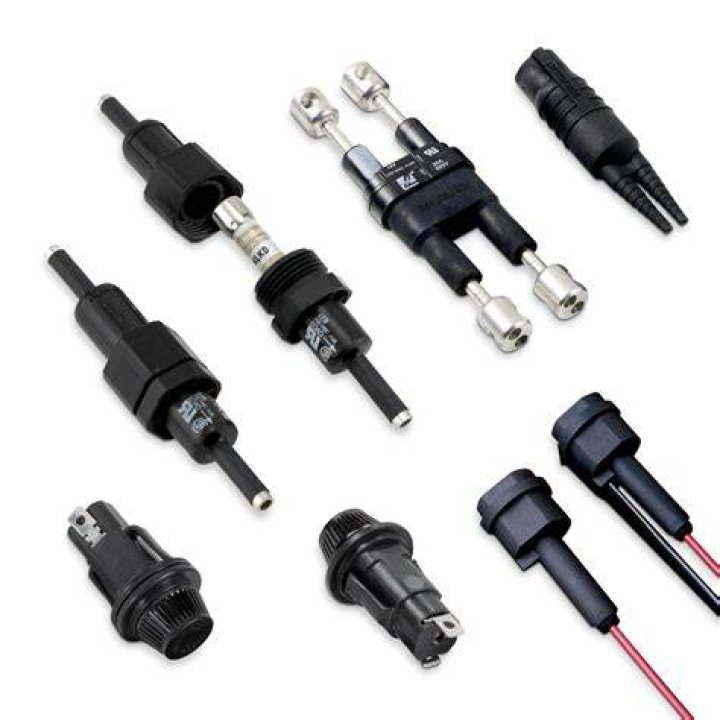

A fuse holder is a type of fuse accessory that is required to integrate fuses that cannot be dropped directly into conductive paths due to their shape and size.

What is the difference between a fuse block and a fuse holder?

A fuse holder is generally accepted to hold one fuse. Either an inline screw together holder or 2 prongs, usually mounted on a circuit board, that the fuse clips into. A fuse block is usually a group of slots molded in a block of plastic or nylon and wired to hold many fuses.

What is a fuse clip?

A fuse clip is a type of open fuse holder or mount for fuses. Similar tofuse covers they are designed to create a tight grip between the clip and the fuse itself, and protect the fuse from the environment around it. They can be used as an alternative to fuse blocks in some cases.

What are fuse used for?

The fuse breaks the circuit if a fault in an appliance causes too much current to flow. This protects the wiring and the appliance if something goes wrong.

What is a fuse holder made of?

Construction of a Fuse Typically fuses are constructed using a thin metal strip or filament sheathed in either a transparent glass or ceramic tube. The metal strip is attached on each end to a separate terminal on the outside of the fuse called an end cap.

How does a fuse box work?

A fuse box serves as the central switchboard for the electrical system in your entire home. It receives power from the utility firm and distributes it to various circuits that supply the fixtures and appliances within the home.

Why does my fuse keep melting?

If the fuse itself has not blown, but the fuse holder melted, it indicates that the fuse holder was making poor contact with the fuse. … If there is significant resistance in the contact between fuse and fuse holder, a current well below the fuse rating can cause enough heat to melt an inline fuse holder.

What does ATM fuse stand for?

There are three common blade fuse sizes: the small minis (ATM), mid-sized regular (ATC/ATO) and the large maxis (APX). There is also a low profile version of the mini, the APS, which uses the same universal Amp colour coding system. The regular-sized ATC fuse is more common than the ATO.

What does Ann fuse mean?

Also called fast-blow forklift fuses, these series ANN and CNN fuses are highly sensitive to changes in current flow and don’t tolerate temporary overload currents or power surges. … They have dual AC/DC voltage ratings and are rated for higher voltages than other automotive fuses.

What is a MIDI fuse?

MIDI® Fuses are a cost-effect, space saving protection solution for high current wiring. MIDI® Fuses are common standard circuit protection devices for automobiles and trucks. … Tin plated contacts on the MIDI® Fuses provide excellent corrosion resistance to keep the fuse protected and performing.

Article first time published on

What are the 3 types of Fuses?

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What is fuse and its types?

The main category of Fuses are based on the type of circuit they are used in i.e. AC Fuses and DC Fuses. Again, AC Fuses are divided in to High Voltage (HV) Fuses and Low Voltage (LV) Fuses. High Voltage (HV) AC Fuses are used for voltages above 1000V and Low Voltage (LV) AC Fuses are used for voltages less than 1000V.

What is fuse puller?

Fuse pullers are efficient for removal and replacement in fuse blocks and other fuse holders. … Some fuse panels may be hard to reach with your hands and fuse pullers are a great solution when your are working with space constraints.

Why is a fuse holder made of an insulator?

Due to their properties the support insulators allow for safe construction of electric switchgear systems designed to withstand high mechanical stresses caused by short-circuit currents. The body of a supporting insulator is made from epoxi resin which provideds for its heat, mechanical and electrical stability.

What is a fuse blade?

Blade fuses (also called spade or plug-in fuses), with a plastic body and two prongs that fit into sockets, are mostly used in automobiles. … Each fuse is printed with the rated current in amperes on the top.

Where does a fuse go in a circuit?

Fuses should always be connected to the hot wire and should be placed before any other component in the circuit. In most projects, the fuse should be the first thing the hot wire connects to after it enters your project enclosure.

What is an inline fuse holder?

What is an inline fuse holder? Inline fuse holders are wire-in, wire-out/line and load fuse holders. … This type of fuse holder can allow for both easy fuse replacement and make it more difficult to access fuses, depending on the goal of the designer and where they are installed.

Where does the fuse go in a 12v circuit?

Recommended practice is to place the fuse near the positive terminal of the battery, so the whole circuit will be dead if the fuse blows. (Of course, if the positive terminal is considered Ground, place the fuse near the negative terminal.)

What is Kitkat fuse?

Kit Kat Fuse is a semi-enclosed fuse also considered as rewireable fuse designed mainly for the domestic wiring and small scale usage. … Sentinel Engineers – one of the leading Kit Kat Fuse Manufacturers in India, has wide options for you to choose from.

Why fuse is considered as safety device?

A fuse is an electrical safety device that has the capability to protect an electric circuit from excessive electric current. It is designed to allow current through the circuit, but in the event that the current exceeds some maximum value it will open, severing the circuit.

Do fuses generate heat?

Both Polymeric (Positive Temperature Coefficient) PTC and traditional Fuse devices react to heat generated by the excessive current flow in a circuit. A fuse melts open, interrupting the current flow whereas a PTC limits current flow as it rises in temperature, changing from low to high resistance state.

Why does fuse get hot?

The fuse getting hot indicates a poor connection at the fuse (or a faulty fuse). Clean the contacts in the fuse holder and ensure there is enough spring pressure to hold the contact pads firmly against the fuse, and that the feed cable connects to the fuse pads with no resistance. And fit a new fuse.

How do you stop a fuse from blowing?

1. Calculate the total power. Before you connect your heater, always calculate how much power your devices require in total. …
2. Start the heater at the lowest power. …
3. Wait a bit before turning on a 2nd patio heater.

Are fuse boxes still legal?

Electrical codes change every three years to continually improve the safety of electrical systems that are installed. As a result no fuse panel currently in use in any home in the United States would comply with minimum code standards in effect today.

Is it illegal to have an old fuse box?

Are old fuse boxes illegal No, old fuse boxes are not illegal. However, if you do have an old fuse box in your property please consider health and safety. It might not be compliant with current regulations and won’t have the latest RCD protection which could save your life. Consider upgrading it to a newer model.

What is the difference between a fuse box and a breaker box?

It is easy to visually tell the two apart, because the circuit breaker panel has small switches inside. They are typically labeled to show which circuit belongs to which switch. A fuse box has small circular fuses instead of switches, one for each circuit in the home.

Are AMG and mega fuses the same?

AMG and MEGA® Fuses are rapidly becoming the standard for automotive applications by the OEMs. … AMG Fuses are made by Eaton (Cooper Bussman) and MEGA® Fuses are made by Littlefuse. See the photos for Time vs Current failure charts.

What is maxi fuse?

Maxi fuses are larger than ATO/ATC fuses and offer protection for high amperage vehicle circuits. They are a blade-type fuse designed to replace fusible links or fusible wire. The fuse link is completely enclosed to help protect against moisture and other corrosive or damaging elements.

What are Class T fuses used for?

Use with Class T Fuse Blocks for circuit protection of devices including inverters. high interrupt capacity for large battery banks including Lithium-ion and TPPL batteries.

What is Bussmann fuse?

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class.

What is TBC fuse?

UPDATE: I found out the TBC is the fuse for the Body Control Module.
